10/100/1000 Mb Ethernet Pass-Through I/O Module
The Ethernet pass-through module supports 10/100/1000 Mb connections and provides a direct connection between the
optional internal Ethernet mezzanine card in the blade and an external Ethernet device. The Ethernet pass-through
modules are hot-swappable and may be installed in any of the three Fabrics.
NOTE: To ensure proper functionality, use only the SFP transceivers provided with this module.

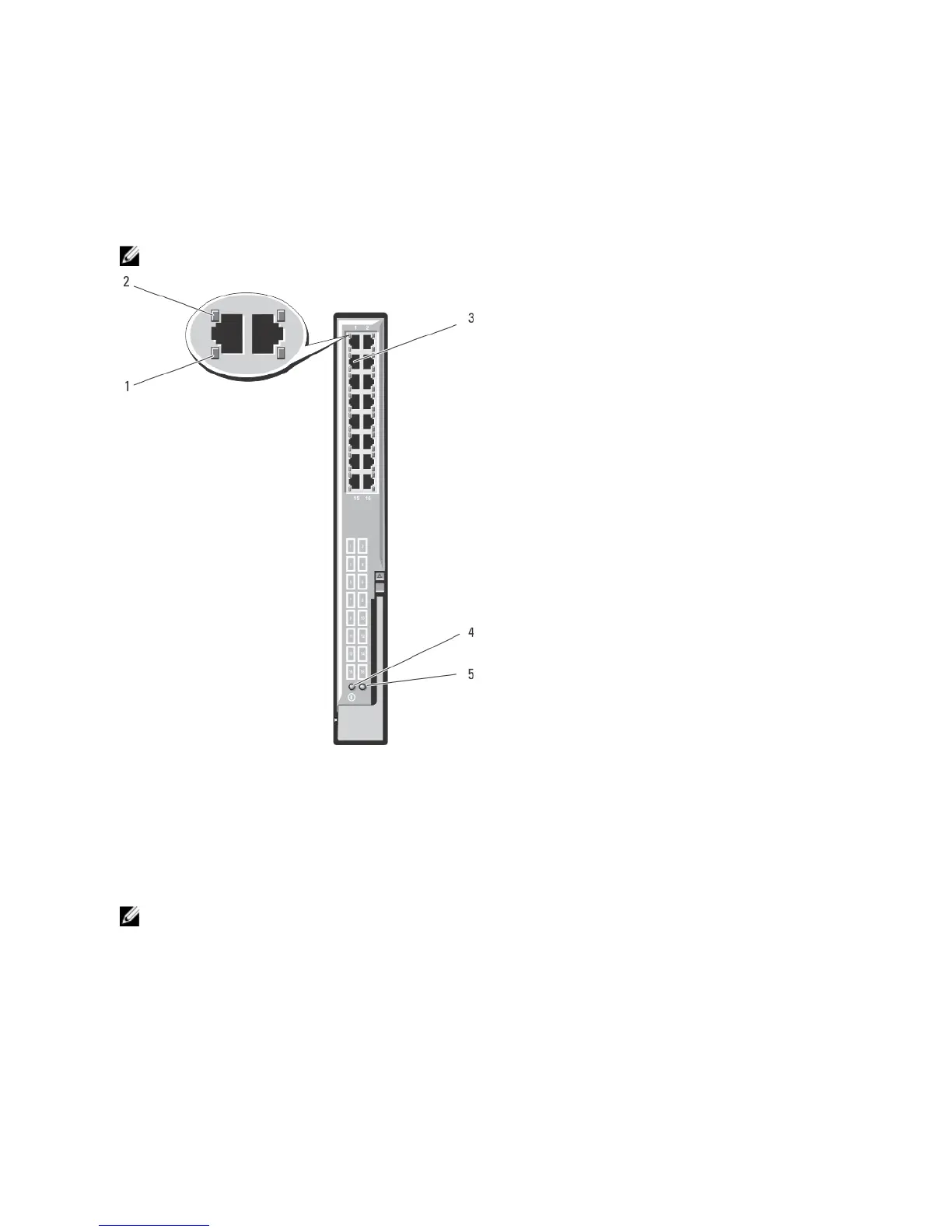

Figure 35. 10/100/1000 Mb Ethernet Pass-Through I/O Module
1. activity indicators (16)
2. link indicators (16)
3. RJ-45 Ethernet connectors (16)
4. power indicator
5. status/identification indicator
NOTE: Connectors on the Ethernet pass-through module correspond directly to the blade number. For example,
blade 5 is connected to port 5 on the Ethernet pass-through module. Integrated network adapter 1 maps to I/O slot
A1. Integrated network adapter 2 maps to I/O slot A2.
