Enclosure Control Panel Assembly
Removing The Control Panel
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your
warranty. Read and follow the safety instructions that came with the product.
1. Press the system power switch to turn off the system.
2. Remove the blades.
3. Remove the bezel.
4. Remove the two screws securing the control panel to the enclosure.
5. Press the catch at each end of the control-panel cable connector, and remove the control-panel cable from the
underside of the control panel.
6. Use the pull-tab to disconnect the LCD panel cable from the underside of the control panel.

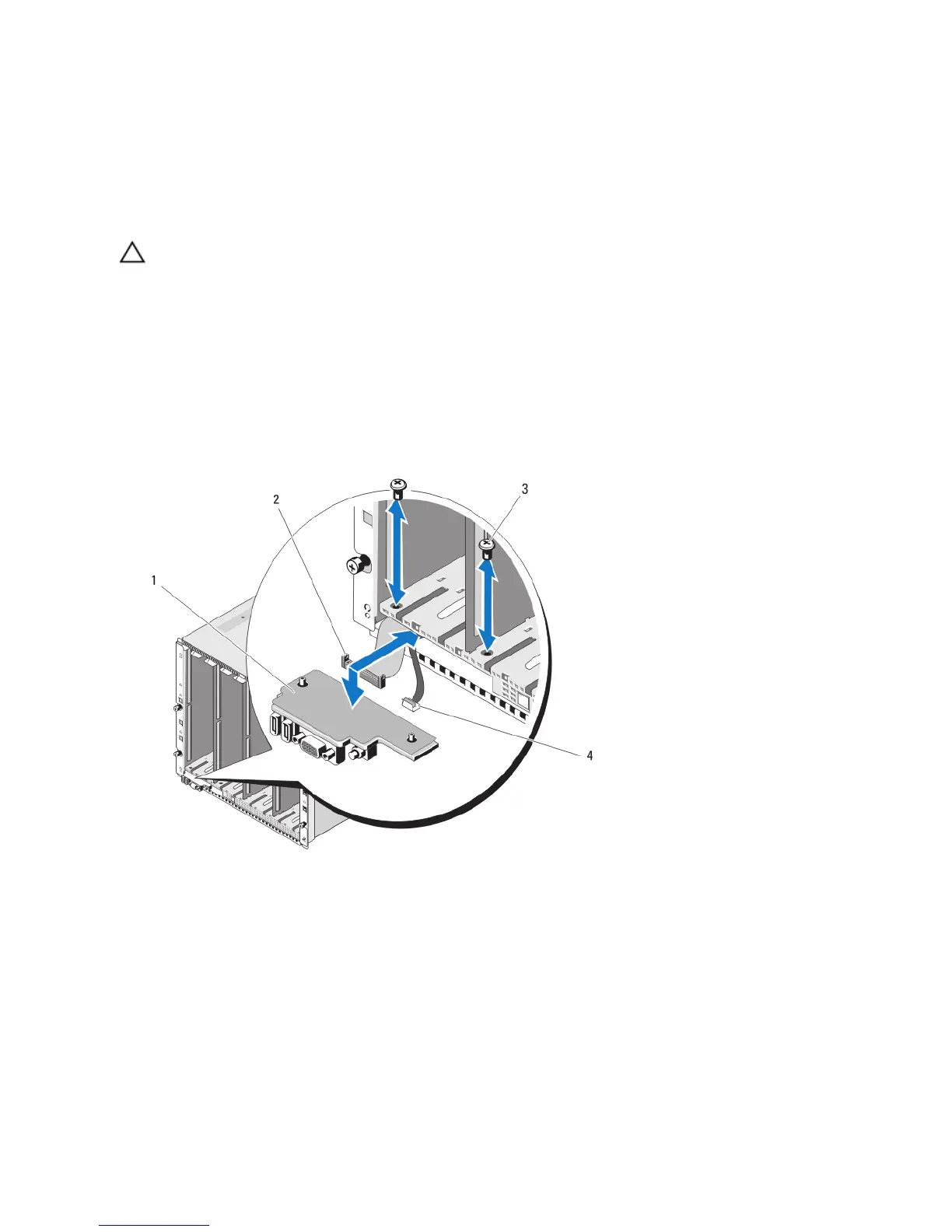

Figure 51. Removing and Installing the Control Panel
1. control panel
2. control-panel cable
3. screws (2)
4. LCD panel cable
90
