112 AC-Adapter Connector
11 Remove the screw that secures the AC-adapter connector to the computer
base.
12 Lift the AC-adapter connector off the computer base.
Replacing the AC-Adapter Connector
1 Follow the instructions in "Before You Begin" on page 9.
2 Place the AC-adapter connector on the computer base and replace the
screw that secures the AC-adapter connector to the computer base.
3 Route the AC-adapter connector cable through the routing guide.
4 Connect the AC-adapter connector cable to the connector on the system
board.
5 Replace the display assembly (see "Replacing the Display Assembly" on
page 91).
6 Replace the thermal fan (see "Replacing the Thermal Fan" on page 66).

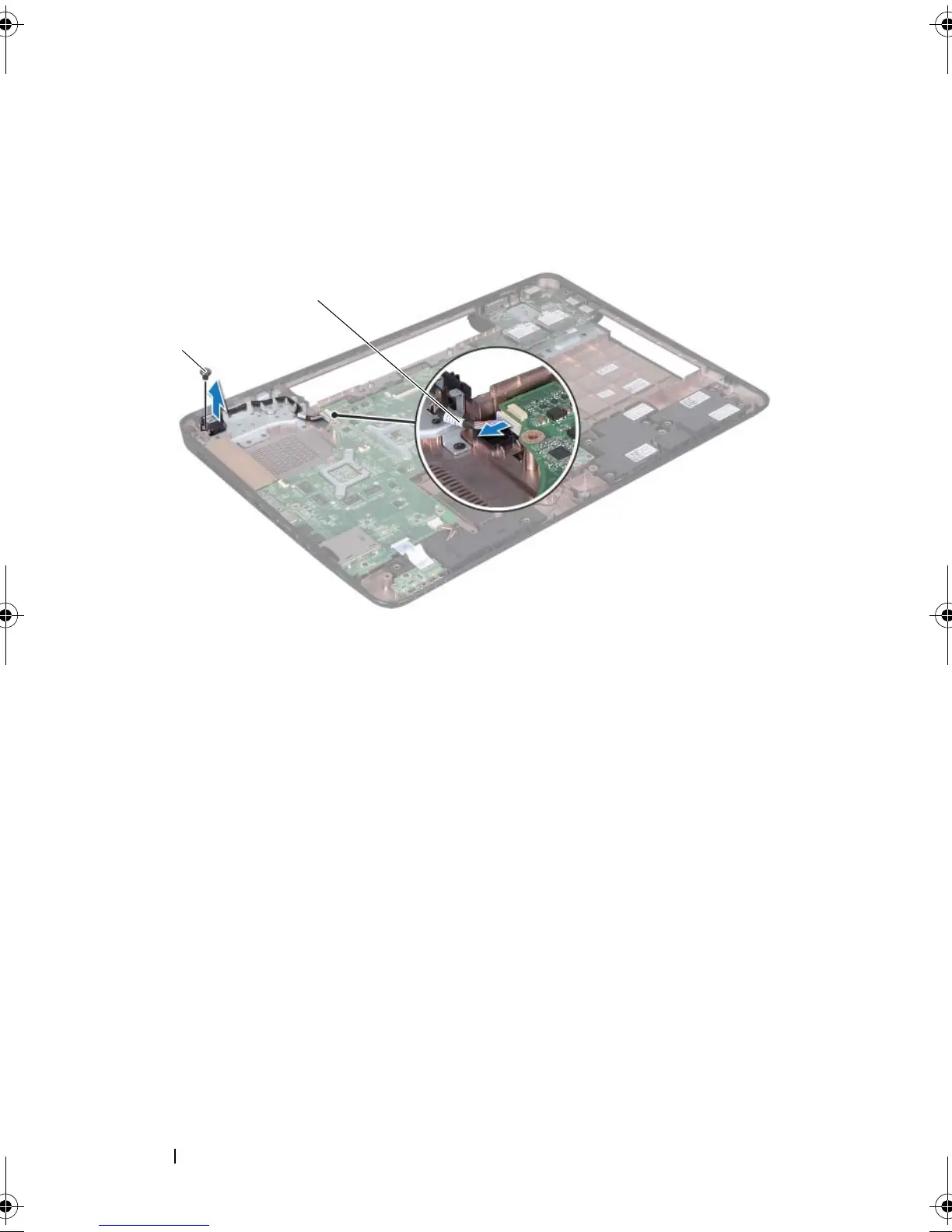

1 screw 2 AC-adapter connector cable
1
2
