Dell INSPIRON P14E User Manual

Hard Drive 51

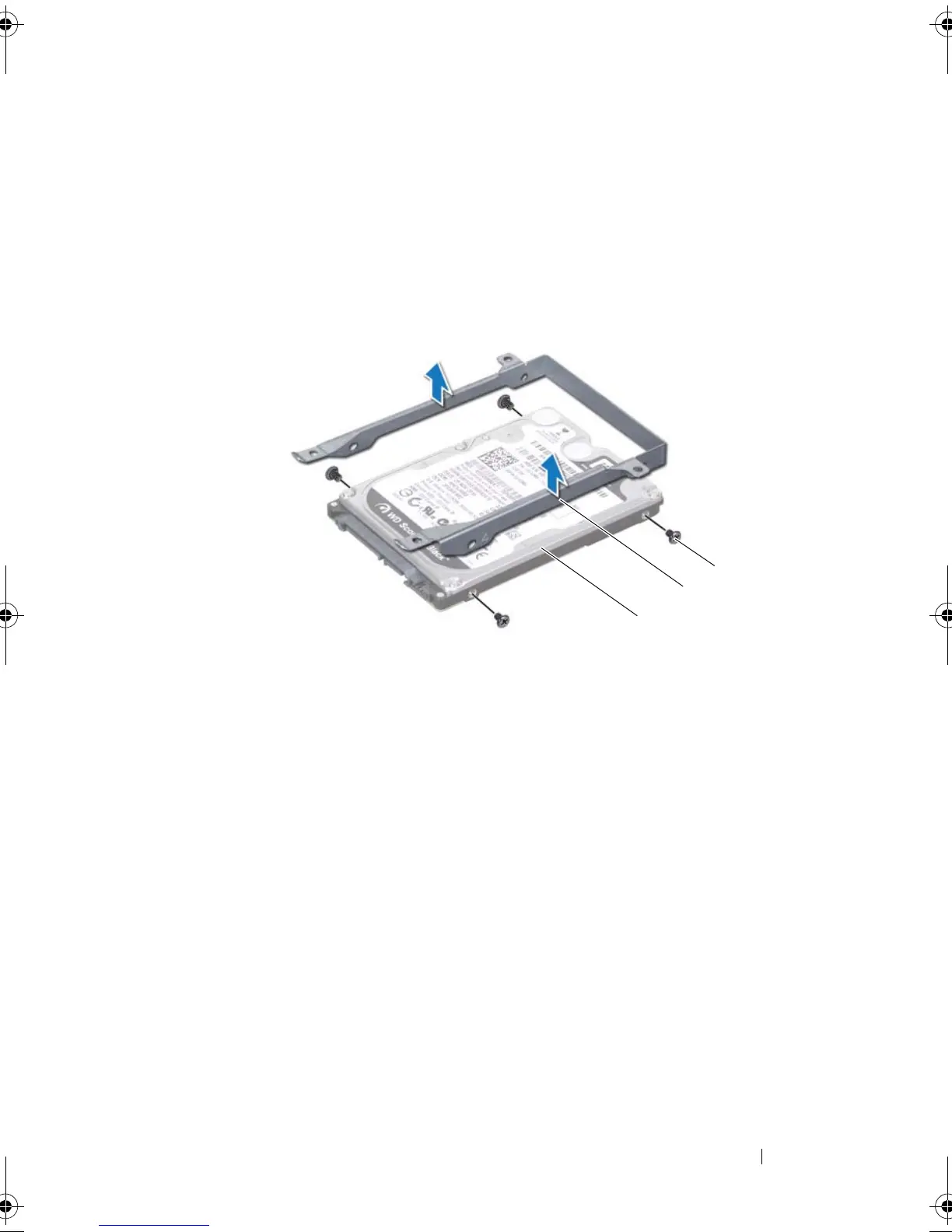

9 Remove the four screws that secure the hard-drive bracket to the hard
drive.
10 Lift the hard-drive bracket off the hard drive.
Replacing the Hard Drive
1 Follow the instructions in "Before You Begin" on page 9.
2 Remove the new hard drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
3 Place the hard drive in the hard-drive bracket.
4 Replace the four screws that secure the hard-drive bracket to the hard
drive.
5 Place the hard-drive assembly on the computer base.
6 Slide the hard-drive assembly to connect it to the connector on the system
board.
1 hard-drive assembly 2 screws (3)
1 hard drive 2 hard-drive bracket
3 screws (4)
1
2
3
book.book Page 51 Friday, April 13, 2012 2:02 PM
