16
Battery
Replacing the Battery
1
F
ollow the instructions in "Before
Y
ou Begin" on page
9.
2
Slide the battery into the battery
bay until it clicks into place.
3
Slide the battery lock latch to the lock
position.

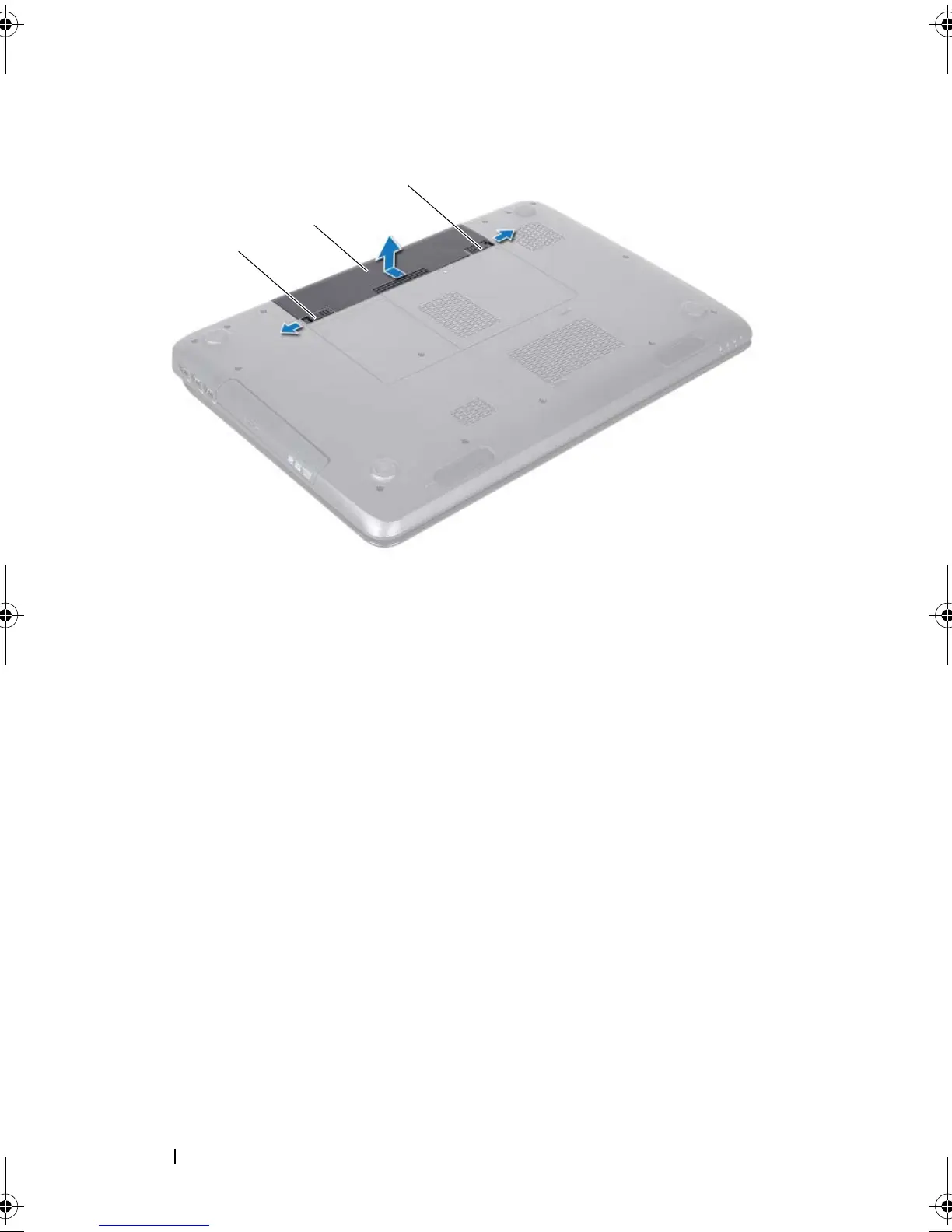

1
battery release latch
2
battery
3
battery lock latch
1
2
3
book
.boo
k Page
16 Friday,
April
13, 2
012
2:02
PM
15
17
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
3
1 Before You Begin
9
Recommended Tools
9
Turning off Your Computer
9
Before Working Inside Your Computer
10
2 Top Cover
13
Removing the Top Cover
13
Replacing the Top Cover
14
3 Battery
15
Removing the Battery
15
Replacing the Battery
16
4 Optical Drive
17
Removing the Optical Drive
17
Replacing the Optical Drive
19
5 Module Cover
21
Removing the Module Cover
21
Replacing the Module Cover
22
6 Memory Module(S)
23
Removing the Memory Module(S)
23
Replacing the Memory Module(S)
24
7 Keyboard
27
Removing the Keyboard
27
Replacing the Keyboard
29
8 Palm-Rest Assembly
31
Removing the Palm-Rest Assembly
31
Replacing the Palm-Rest Assembly
35
9 Hot-Key Board
37
Removing the Hot-Key Board
37
Replacing the Hot-Key Board
38
10 Power-Button Board
41
Removing the Power-Button Board
41
Replacing the Power-Button Board
42
11 Wireless Mini-Card(S)
45
Removing the Mini-Card(S)
45
Replacing the Mini-Card(S)
47
12 Hard Drive
49
Removing the Hard Drive
49
Replacing the Hard Drive
51
A Subwoofer
53
Removing the Subwoofer
53
Replacing the Subwoofer
54
13 Status Light Board
57
Removing the Status Light Board
57
Replacing the Status Light Board
58
14 Speakers
61
Removing the Speakers
61
Replacing the Speakers
62
15 Thermal Fan
65
Removing the Thermal Fan
65
Replacing the Thermal Fan
66
16 System Board
69
Removing the System Board
69
Replacing the System Board
72
Entering the Service Tag in the BIOS
73
17 Coin-Cell Battery
75
Removing the Coin-Cell Battery
75
Replacing the Coin-Cell Battery
76
18 O Board
79
Removing the I/O Board
79
Replacing the I/O Board
80
19 Thermal Cooling Assembly
81
Removing the Thermal Cooling Assembly
81
Replacing the Thermal Cooling Assembly
82
20 Processor Module
85
Removing the Processor Module
85
Replacing the Processor Module
86
21 Display
89
Display Assembly
89
Removing the Display Assembly
89
Replacing the Display Assembly
91
Display Bezel
92
Removing the Display Bezel
92
Replacing the Display Bezel
93
Removing the Display Panel
94
Replacing the Display Panel
94
Display Cable
95
Replacing the Display Cable
96
Removing the Display Hinges
97
Replacing the Display-Panel Brackets
97
Replacing the Display Hinges
98
Removing the Display-Panel Brackets
98
22 Camera Module
101
Removing the Camera Module
101
Replacing the Camera Module
102
23 Hinge Cover
105
Removing the Hinge Cover
105
Replacing the Hinge Cover
108
24 AC-Adapter Connector
111
Removing the AC-Adapter Connector
111
Replacing the AC-Adapter Connector
112
Flashing the Bios
115
