Installing 3-cell battery
Steps
1. Insert the battery into the slot on the computer.
2. Route the battery cable through the routing clip and connect the battery cable to the connector on the system board.
NOTE: Route the battery cable, if the cable at the base of the battery is un-routed.
3. Replace the M2 x 5 screw to secure the battery to the computer.
4. Install the base cover
5. Follow the procedure in After working inside your computer.
Removing 4-cell battery
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.

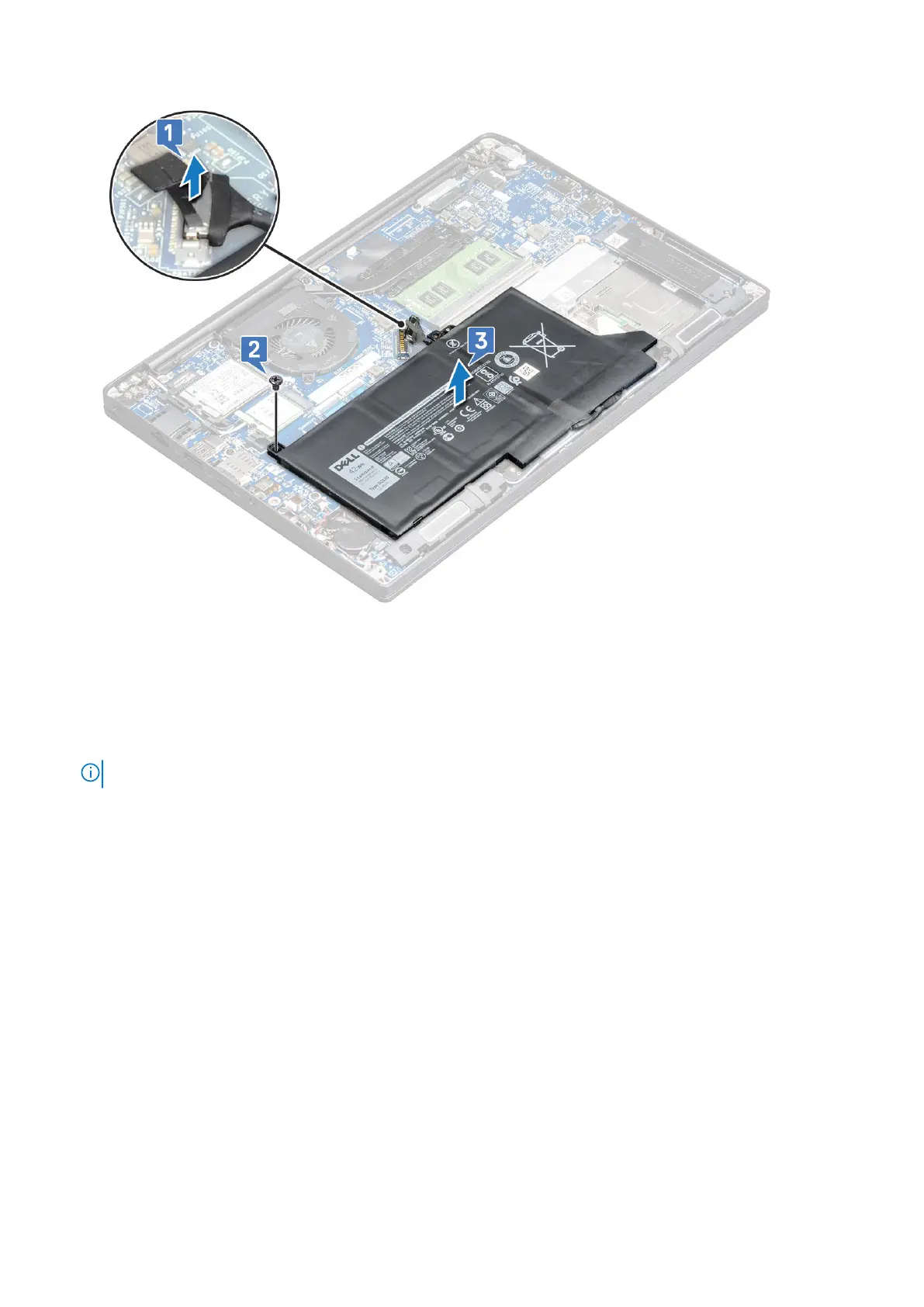

3. To remove the battery:
a. Disconnect the battery cable from the connector on the system board [1].
b. Remove the M2 x 5 screw (2) that secure the battery to the computer[2].
c. Lift the battery from the computer [3].
16
Removing and installing components
