Removing PCIe SSD without bracket
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.

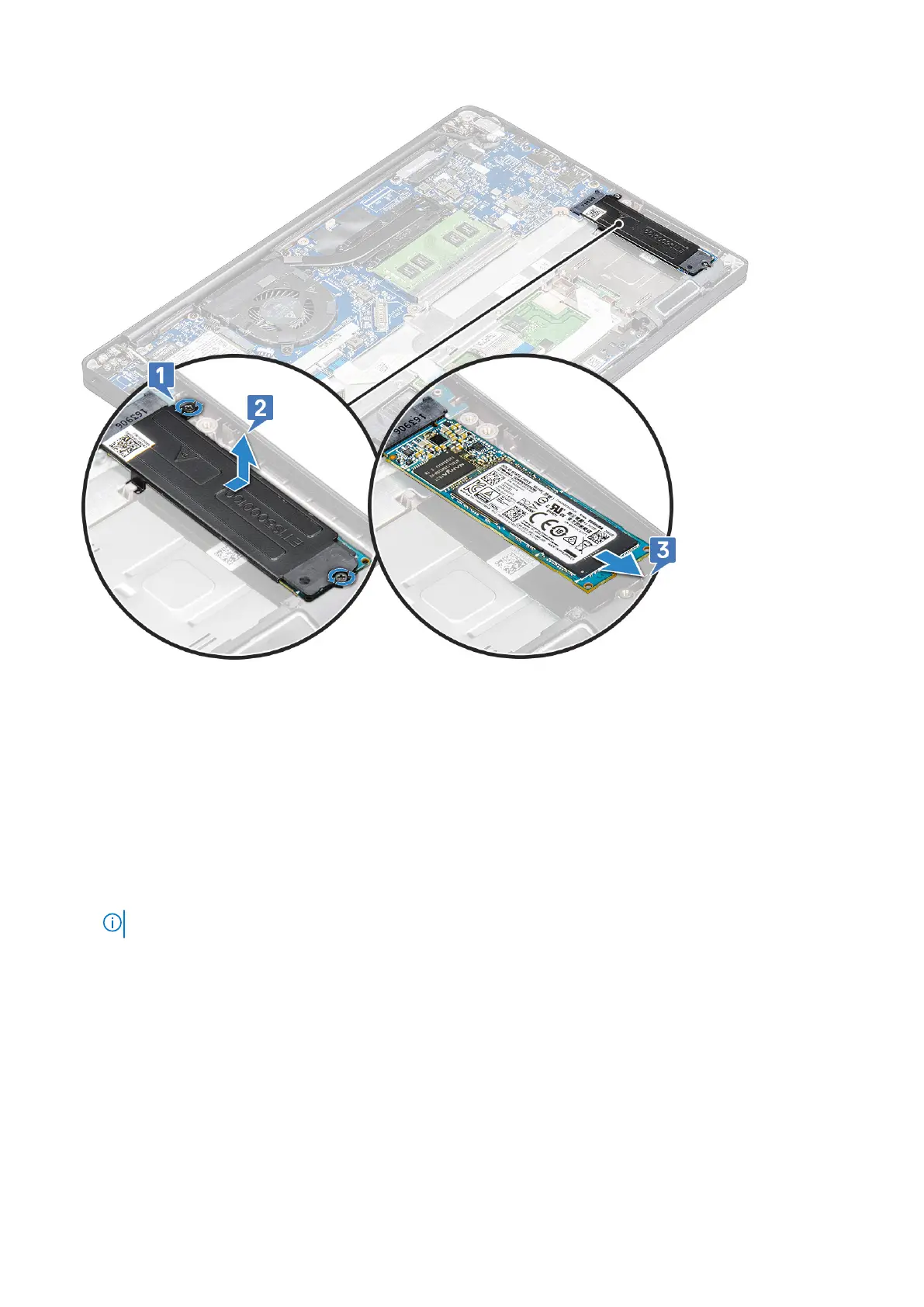

4. To remove the PCIe SSD:
a. Loosen the M2.0x3.0 captive screw that secure the SSD bracket [1].
b. Slightly lift the SSD and pull out from its connector [2].
NOTE: Ensure to lift the PCle SSD card by an angle NOT more than 30°.
18 Removing and installing components
