Dell Latitude 7390 User Manual

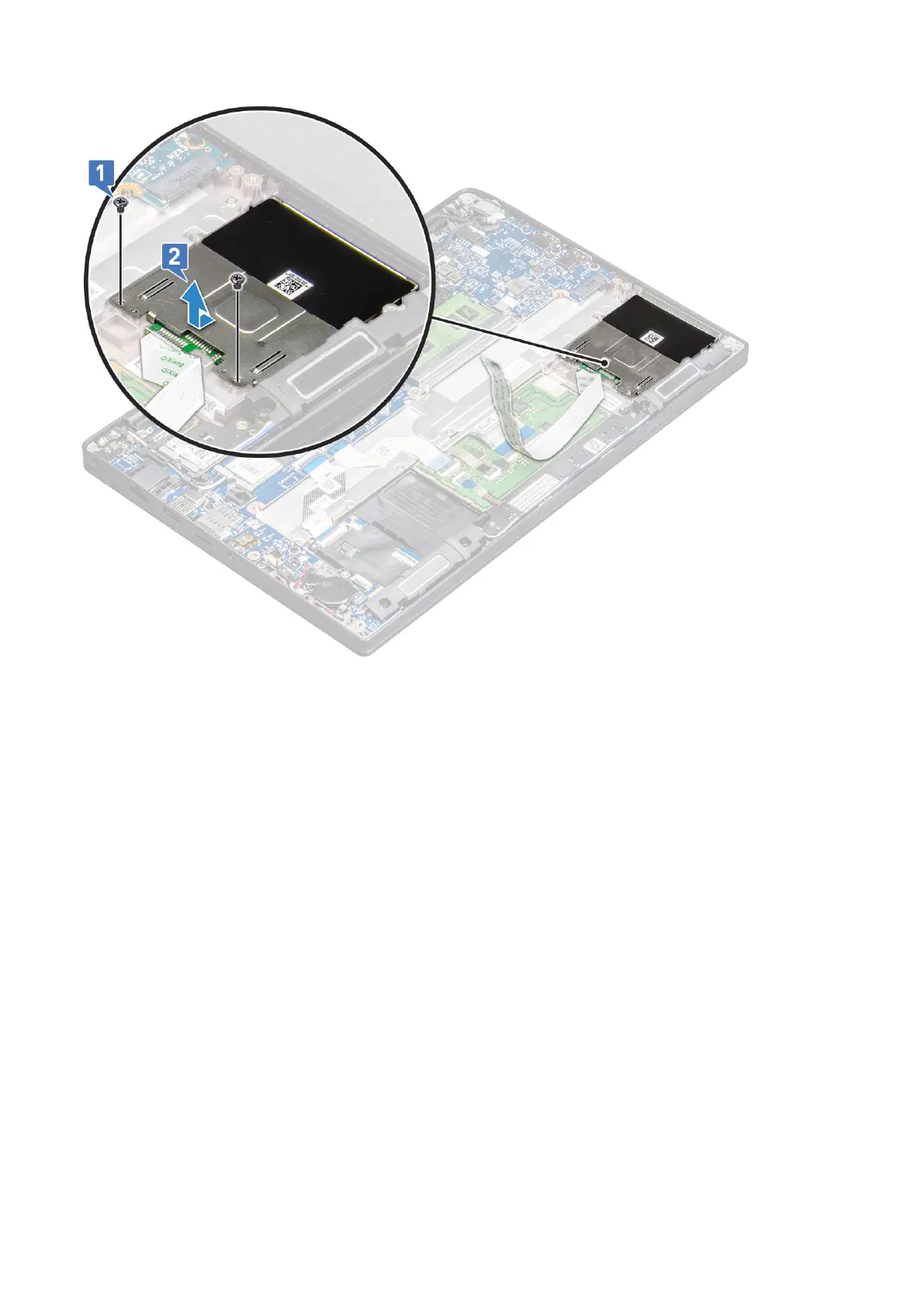

Installing smart card cage
Steps
1. Slide the smart card cage into the slot to align with the tabs on the computer.
2. Tighten the M2 x 3 screws to secure the smart card cage to the computer.
3. Affix the smart card cable and connect it to the connector on the computer .
4. Install the SATA SSD.
5. Install the PCIe SSD card.
6. Connect the battery cable to the connector on the system board.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
Touchpad
Removing touchpad buttons board
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.
4. To disconnect the smart card cable:
32
Removing and installing components

Dell Latitude 7390 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	Intel Core i5-8250U / i7-8650U
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB DDR4
Storage	256GB/512GB SSD
Battery	4-cell 60Whr
Ports	2 x USB 3.1, 1 x USB Type-C, HDMI, MicroSD card reader
Wireless	Intel Dual Band Wireless-AC 8265 Wi-Fi + Bluetooth 4.2
