4. Follow the procedures in After working inside your computer.
Heat sink
Removing heat sink assembly
About this task
Heat sink assembly consists of heat sink and the system fan.
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.

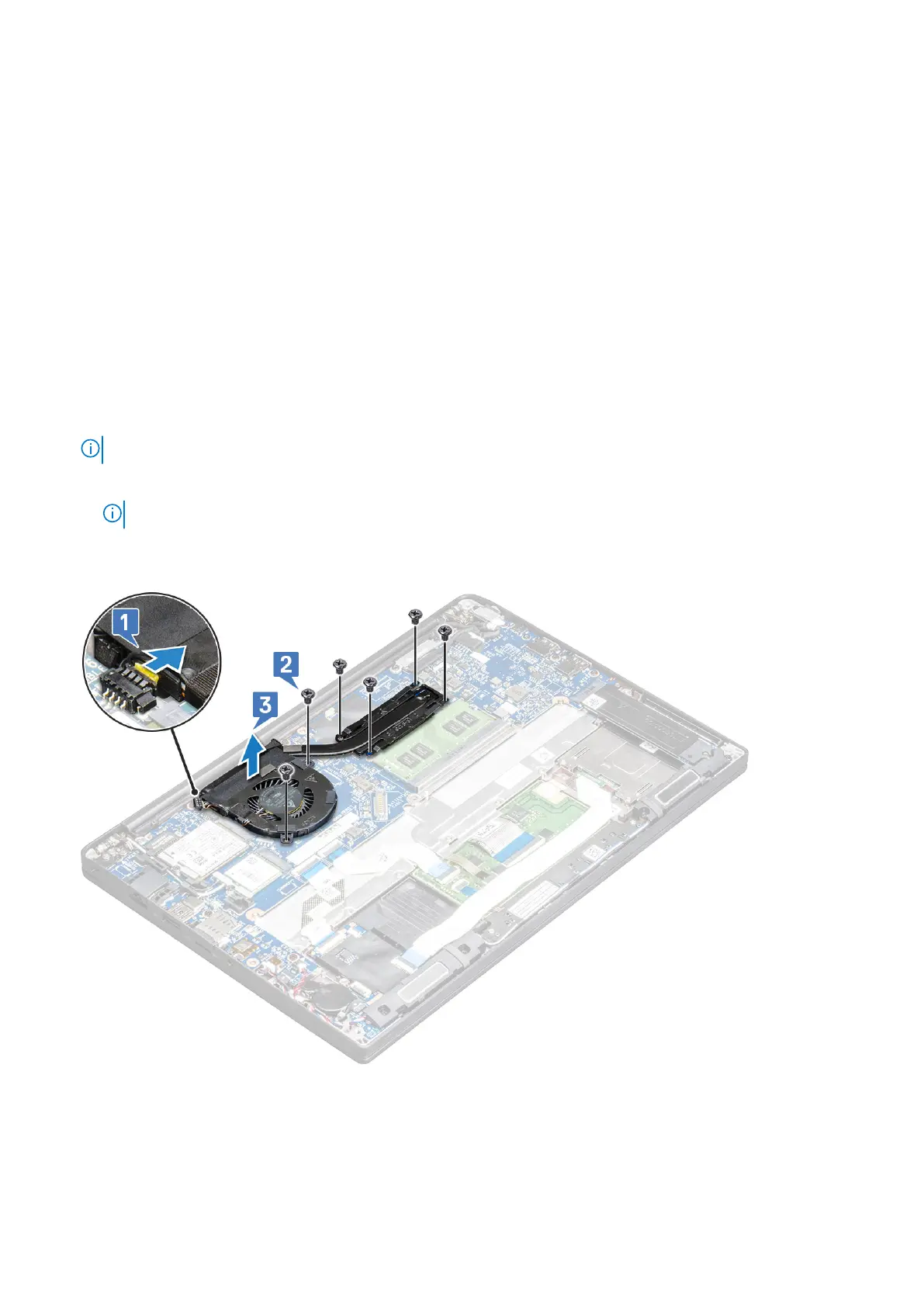

4. To remove the heat sink assembly:
NOTE: To identify the number of screws, see screw list.
a. Remove the M2 x 5 screws (6) that secure the heat sink assembly to the system board [2].
NOTE: Remove the screws in order of the callout numbers [1, 2, 3, 4] as printed on the heat sink assembly.
b. Lift the heat sink assembly from the system board [3].
c. Disconnect the fan cable from the system board [1].
Installing heat sink assembly
About this task
Heat sink assembly consists of heat sink and the system fan.
Removing and installing components
27

Dell Latitude 7390 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	Intel Core i5-8250U / i7-8650U
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB DDR4
Storage	256GB/512GB SSD
Battery	4-cell 60Whr
Ports	2 x USB 3.1, 1 x USB Type-C, HDMI, MicroSD card reader
Wireless	Intel Dual Band Wireless-AC 8265 Wi-Fi + Bluetooth 4.2
