Dell Latitude 7390 User Manual

5. Install the .base cover.
6. Follow the procedure in After working inside your computer.
Memory modules
Removing memory module
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.

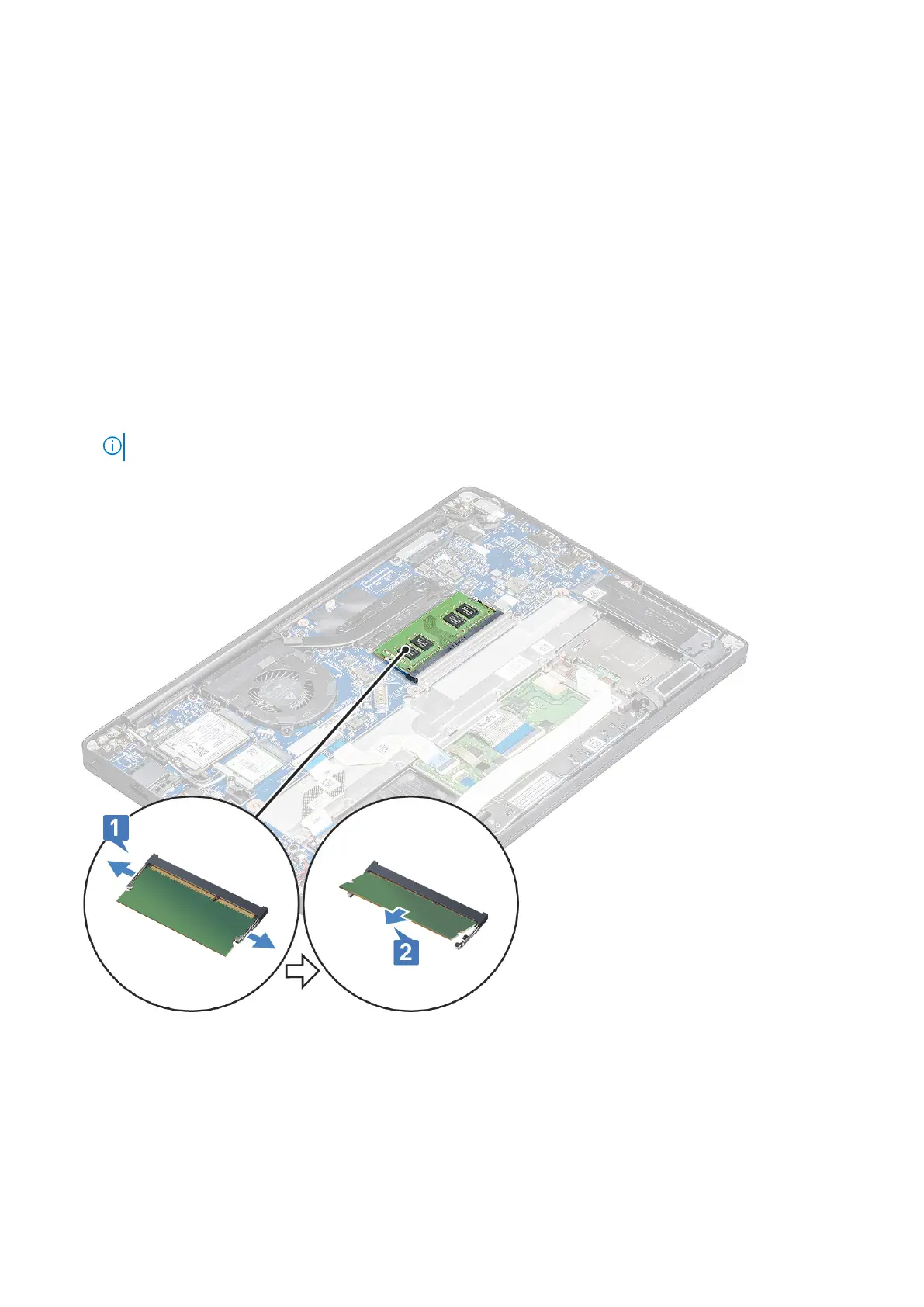

4. To remove the memory module:
a. Pull the clips securing the memory module until the module snaps-out [1].
b. Remove the memory module from the connector on the system board [2].
NOTE: Ensure to lift the memory module card by an angle NOT more than 35°.
Installing memory module
Steps
1. Insert the memory module into the connector until snaps in.
2. Connect the battery cable to the connector on the system board.
3. Install the base cover.
26
Removing and installing components

Dell Latitude 7390 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	Intel Core i5-8250U / i7-8650U
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB DDR4
Storage	256GB/512GB SSD
Battery	4-cell 60Whr
Ports	2 x USB 3.1, 1 x USB Type-C, HDMI, MicroSD card reader
Wireless	Intel Dual Band Wireless-AC 8265 Wi-Fi + Bluetooth 4.2
