Dell PowerConnect 2816 User Manual

128 Update with your book title

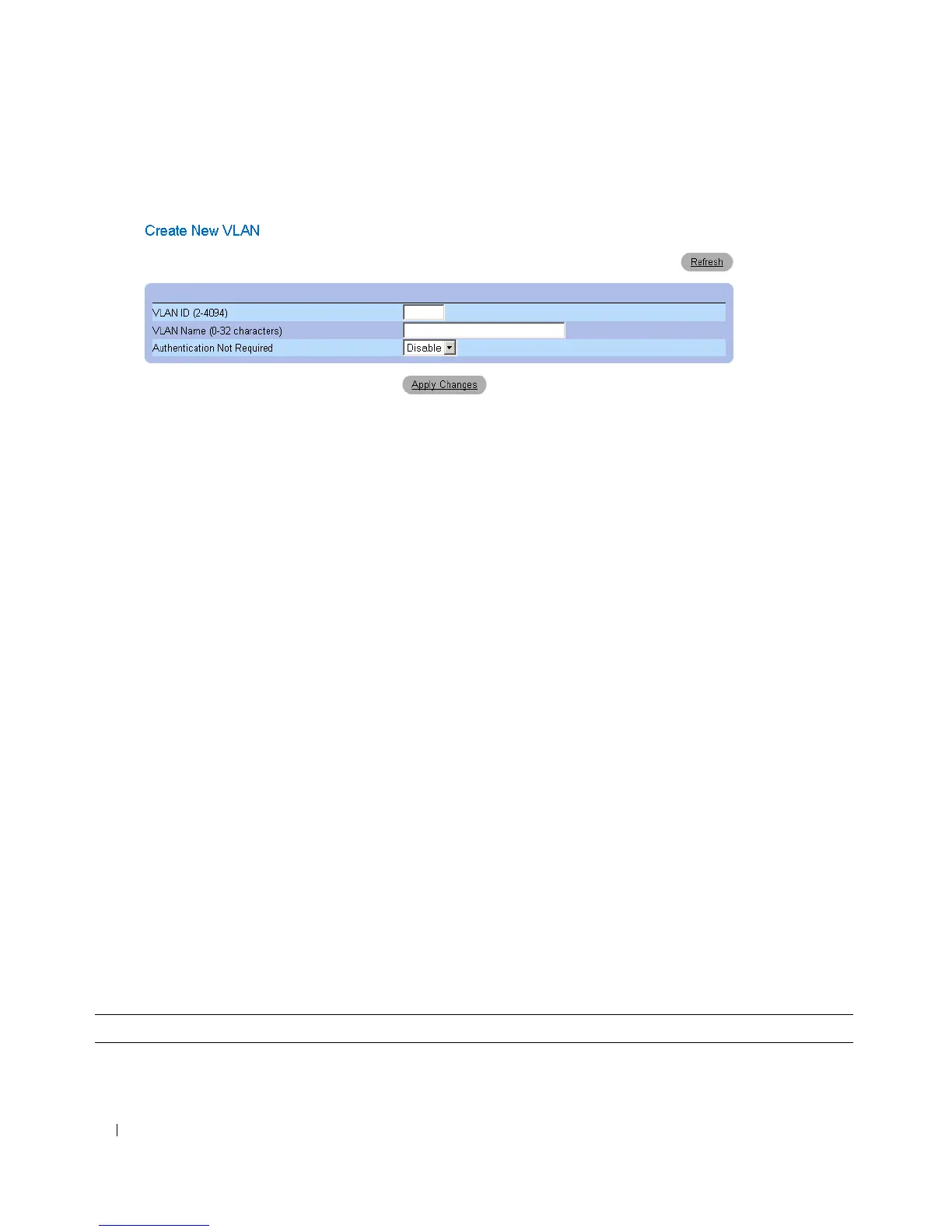

Figure 7-21. Create New VLAN
3 Enter the VLAN ID and name.
4 Click Apply Changes .
The new VLAN is added, and the device is updated.
Modifying VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN from the Show VLAN drop-down menu.
3 Modify the fields as desired.
4 Click Apply Changes .
The VLAN membership information is modified, and the device is updated.
Deleting VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN in the Show VLAN field.
3 Select the Remove VLAN check box.
4 Click Apply Changes .
The selected VLAN is deleted, and the device is updated.
VLAN Port Membership Table
The VLAN Port Membership Table contains a Port Table for assigning ports to VLANs. Ports are
assigned VLAN membership by toggling through the Port Control settings. Ports can have the following
values:
Table 7-1. VLAN Port Membership Table
Port Control Definition
T The interface is a member of a VLAN. All packets forwarded by the interface are tagged. The
packets contain VLAN information.

Dell PowerConnect 2816 Specifications

General

Ports	16 x 10/100/1000BASE-T
Switching Capacity	32 Gbps
Forwarding Rate	23.8 Mpps
VLAN Support	Yes, up to 256 VLANs
Rack Mountable	Yes, 1U
Relative Humidity	10% to 90% non-condensing
Management	Web-based, CLI
MAC Address Table Size	8K MAC addresses
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C
Jumbo Frame Support	Yes
Dimensions	440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
