Displaying the VLAN Port Table
1 Open the VLAN Port Settings page.
2 Click Show All.
The VLAN Port Table opens.

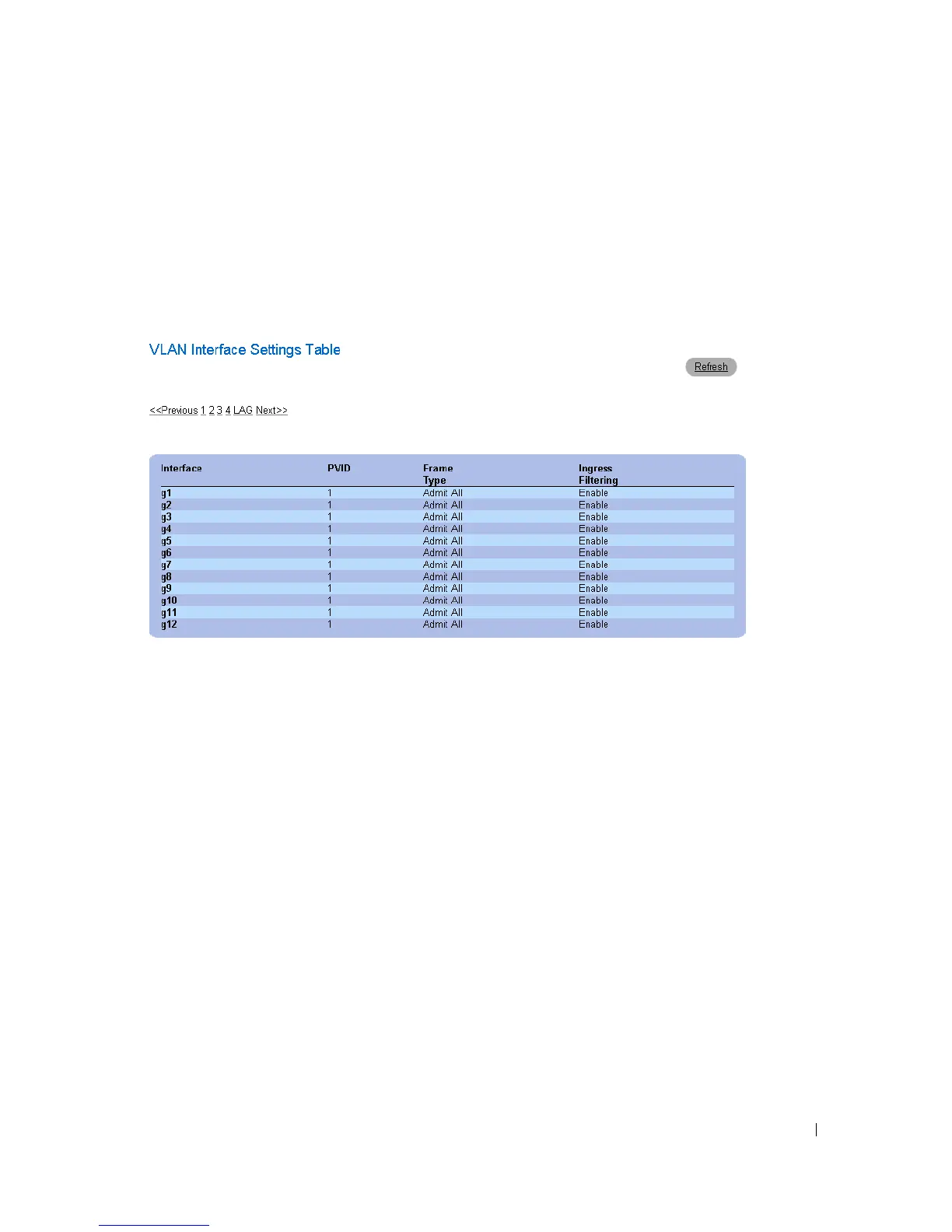

Figure 7-23. VLAN Port Table
Defining VLAN LAG Settings
The VLAN LAG Setting page provides parameters for managing LAGs that are part of a VLAN. VLANs
can either be composed of individual ports or of LAGs. Untagged packets entering the device are tagged
with the LAGs ID specified by the PVID. To open the VLAN LAG Setting page, click Switch→
VLAN→ LAG Settings in the tree view.

Dell PowerConnect 2816 Specifications

General

Ports	16 x 10/100/1000BASE-T
Switching Capacity	32 Gbps
Forwarding Rate	23.8 Mpps
VLAN Support	Yes, up to 256 VLANs
Rack Mountable	Yes, 1U
Relative Humidity	10% to 90% non-condensing
Management	Web-based, CLI
MAC Address Table Size	8K MAC addresses
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C
Jumbo Frame Support	Yes
Dimensions	440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
