Defining VLAN Ports Settings
The VLAN Port Settings page contains fields for managing ports that are part of a VLAN. The port
default VLAN ID (PVID) is configured on the VLAN Port Settings page. All untagged packets arriving to
the device are tagged by the ports PVID.
To open the VLAN Port Settings page, click Switch
→ VLAN→ Port Settings in the tree view.

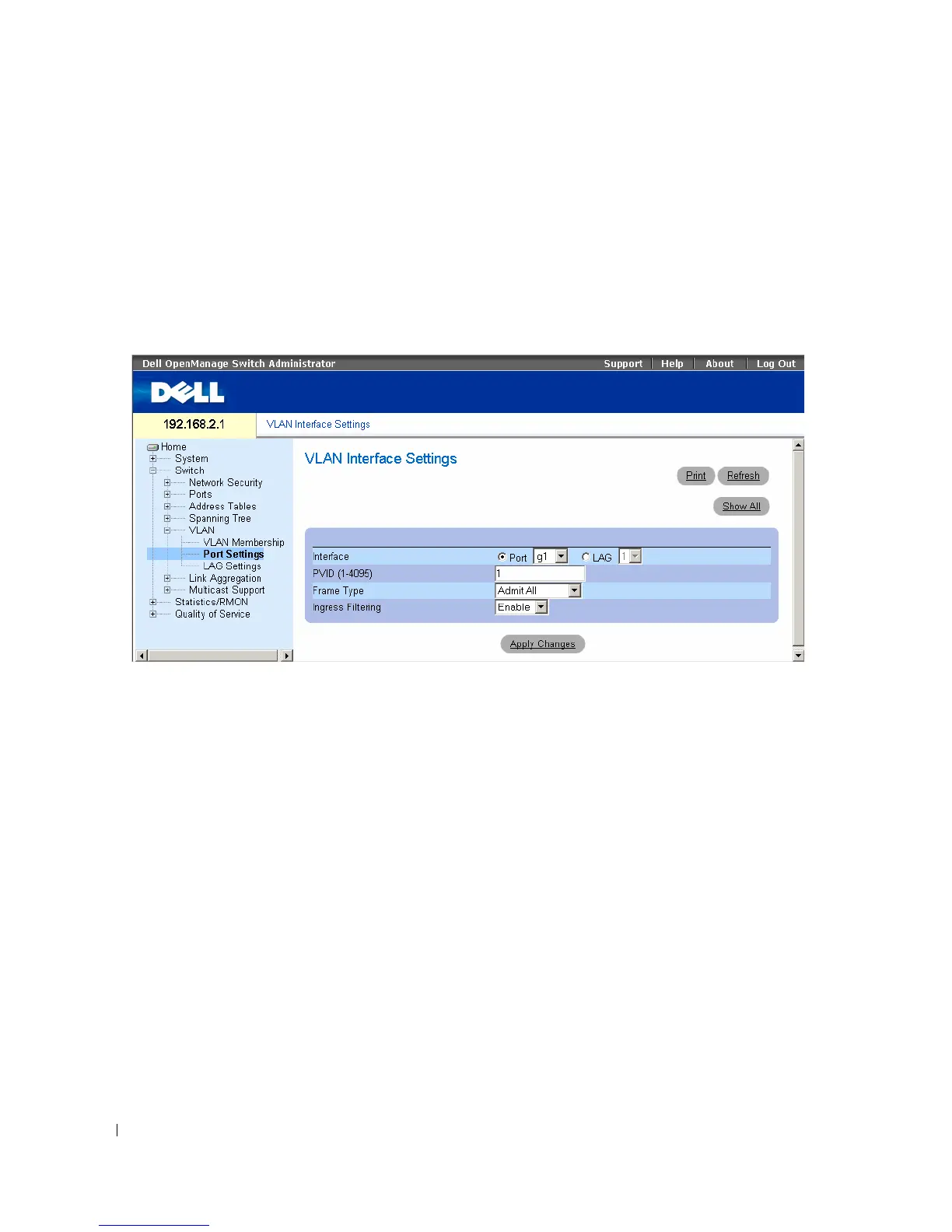

Figure 7-22. VLAN Port Settings
•
Port
— The port number included in the VLAN.
•
PVID (1-4095)
— Assigns a VLA N ID to untagged packets. The possible values are 1-4094. VLAN
4095 is defined as per standard and industry practice as the discard VLAN. Packets classified to the
Discard VLAN are dropped.
•
Frame Type
— Packet type accepted on the port. Possible values are:
–
Admit Tag Only
— Only tagged packets are accepted on the port.
–
Admit All
— Both tagged and untagged packets are accepted on the port.
•
Ingress Filtering
— Enables or disables Ingress filtering on the port. Ingress filtering discards packets
that are destined to VLANs of which the specific port is not a member.
Assigning Port Settings
1
Open the
VLAN Port Settings
page.
2
Select the port to which settings need to be assigned from the
Port
drop-down menu.
3
Complete the remaining fields on the page
4
Click
Apply Changes
.
The VLAN port settings are defined, and the device is updated.
