Device Representation

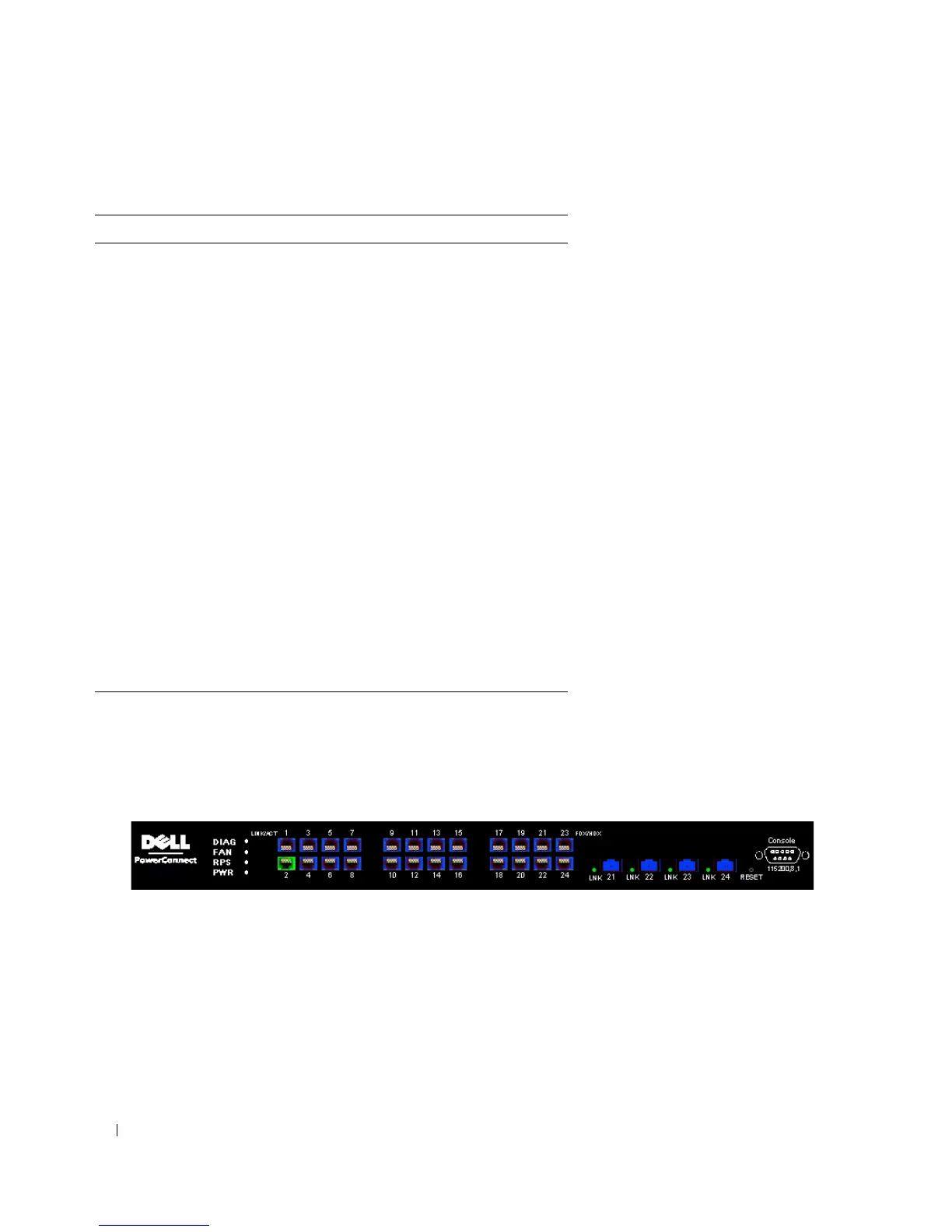

The PowerConnect home page contains a graphical device representation of the front panel.
Figure 5-2. Port LED Indicators
Table 5-1. Interface Components
Component Name
1 The tree view contains a list of the different
device features. The branches in the tree view
can be expanded to view all the components
under a specific feature, or retracted to hide the
feature's components. By dragging the vertical
bar to the right, the tree area can be expanded to
display the full name of a component.
2 The device view provides information about
device ports, current configuration and status,
table information, and feature components.
Depending on the option selected, the area at
the bottom of the device view displays other
device information and/or dialogs for configuring
parameters.
3 The components list contains a list of the feature
components. Components can also be viewed by
expanding a feature in the tree view.
4 The information buttons provide access to
information about the device and access to Dell
Support. For more information, see "Information
Buttons."

Dell PowerConnect 2816 Specifications

General

Ports	16 x 10/100/1000BASE-T
Switching Capacity	32 Gbps
Forwarding Rate	23.8 Mpps
VLAN Support	Yes, up to 256 VLANs
Rack Mountable	Yes, 1U
Relative Humidity	10% to 90% non-condensing
Management	Web-based, CLI
MAC Address Table Size	8K MAC addresses
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C
Jumbo Frame Support	Yes
Dimensions	440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
