Managing Device Security
The Management Security page provides access to security pages that contain fields for setting security
parameters for user database, password and RADIUS security. To open the Management Security page
,
click System→Management Security in the tree view.
Defining the Local User Databases
The Local User Database page contains fields for defining users, passwords and access levels. To open the
Local User Database
page, click System→ Management Security→ Local User Database in the tree view.

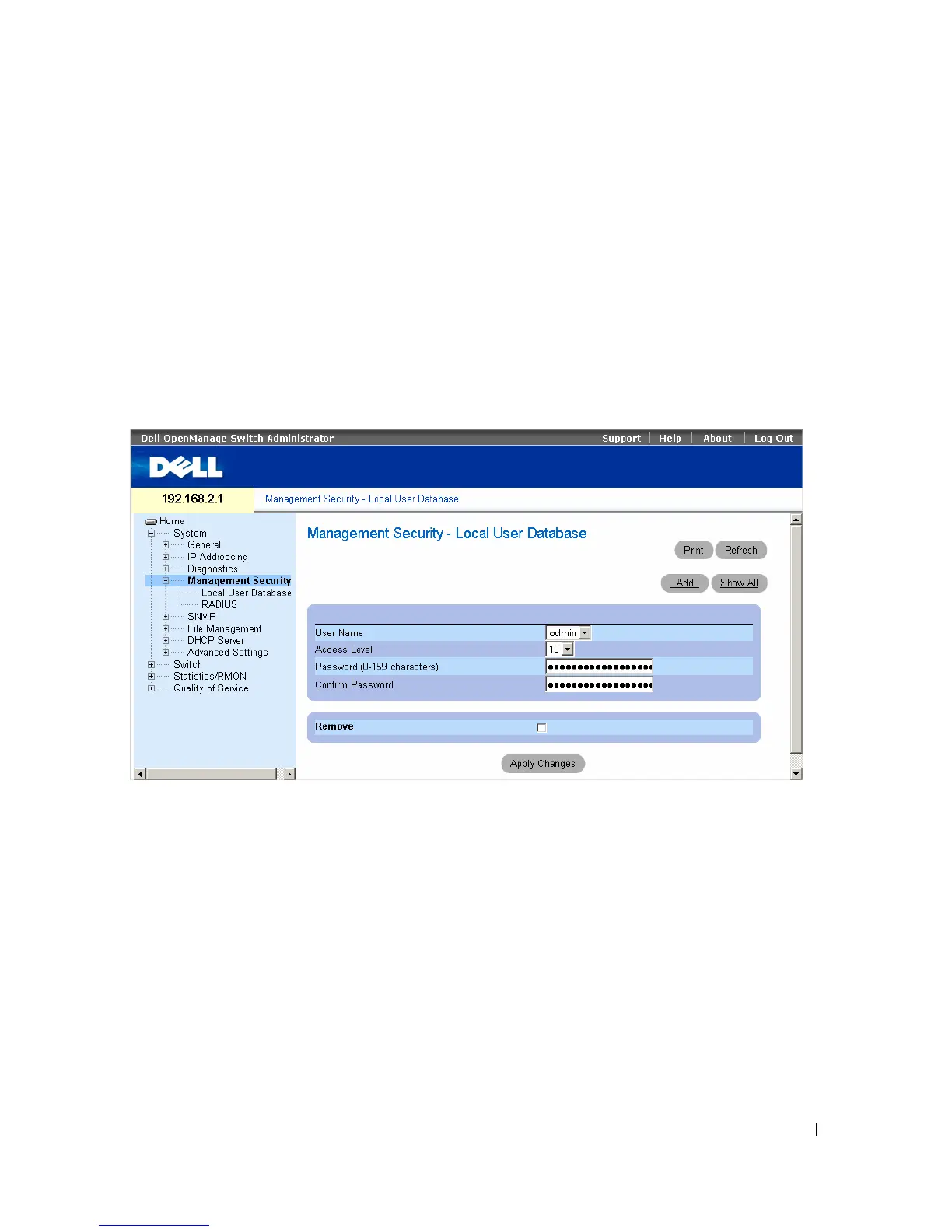

Figure 6-9. Local User Database
• User Name — List of users.
•
Access Level — User access level. The lowest user access level is 1 and 15 is the highest user access
level. Users with access level 15 are Privileged Users, and only they can access and edit all pages of the
OpenManage Switch Administrator.
•
Password (0-64 Characters) — User-defined password.
•
Confirm Password — Confirms the user-defined password.
•
Remove — Removes users from the User Name list, when selected.
Assigning Access Rights to a User:
1 Open the Local User Database page.
2 Select a user in the User Name field.
3 Define the fields.

Dell PowerConnect 2816 Specifications

General

Ports	16 x 10/100/1000BASE-T
Switching Capacity	32 Gbps
Forwarding Rate	23.8 Mpps
VLAN Support	Yes, up to 256 VLANs
Rack Mountable	Yes, 1U
Relative Humidity	10% to 90% non-condensing
Management	Web-based, CLI
MAC Address Table Size	8K MAC addresses
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C
Jumbo Frame Support	Yes
Dimensions	440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
