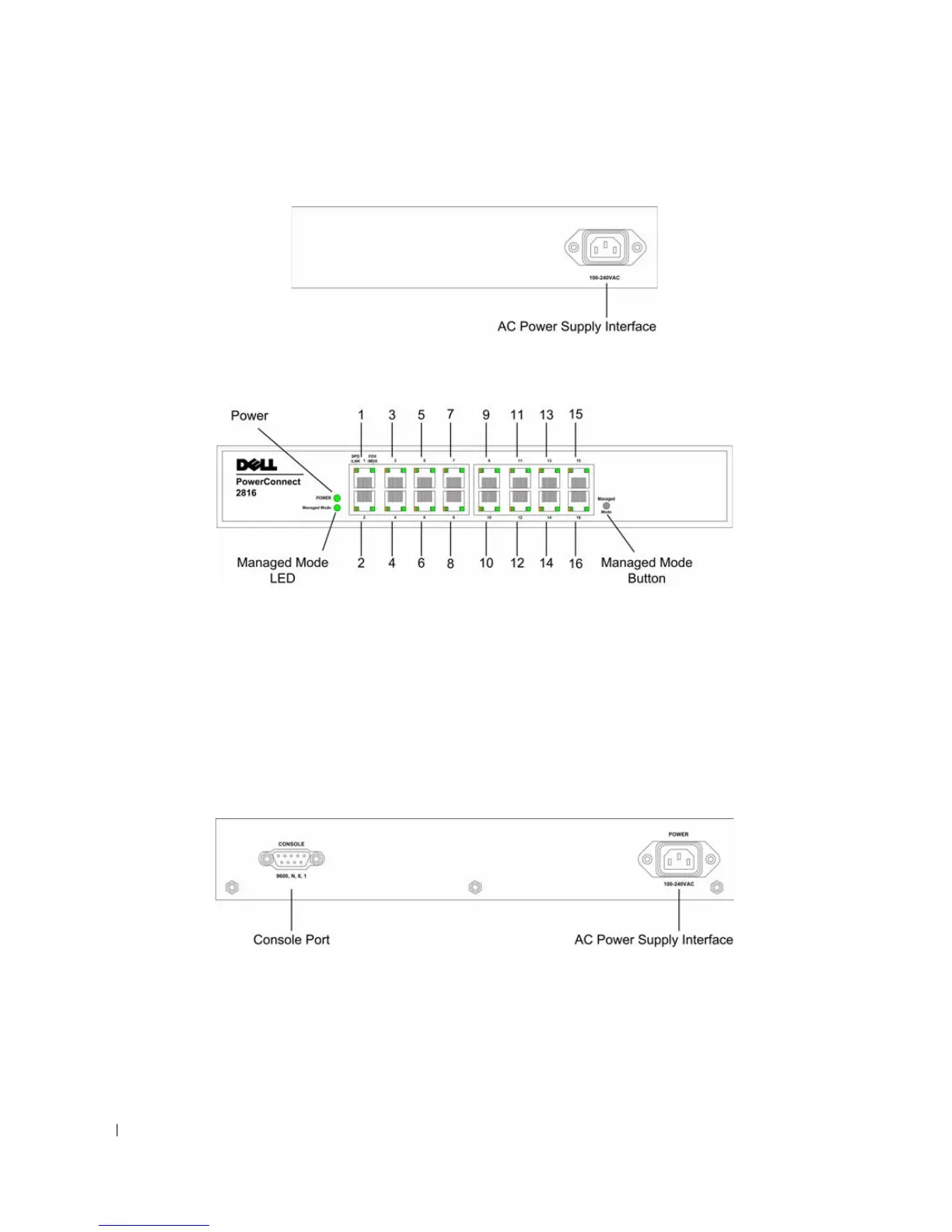

Figure 2-2. PowerConnect 2808 Back Panel
Figure 2-3. PowerConnect 2816 Front Panel
On the front panel there are 16 ports which are numbered 1 to 16, top down and left to right. On each
port there are LEDs to indicate the port status.
On the left side of the front panel is the Managed Mode LED which indicates the Ethernet switch
operational status and the management mode. The Power LED on the front panel indicates whether the
device is powered on or not. A Mode push-button, located on the right side on the front panel, is used to
transition between management modes and to reset the device. For more information about
management modes and transitioning between them, see "Management Modes" on page 49.
Figure 2-4. PowerConnect 2816 Back Panel
