Dell PowerEdge 1950 Installation Guide

Four-Post Rack Installation 23
Installing the Cable-Management Arm
NOTE: You can attach the cable-management arm to either the right or left mounting rail, depending on how you
intend to route cables from the system.
1 If necessary, press the catch at the center of the cable-management arm retention latch on the tray,
and rotate the latch downwards (see Figure 1-12).
2 At the back of the system, fit the latch on the front end of the cable-management arm onto
the innermost bracket on the slide assembly, until the latch engages (see Figure 1-13).
3 Fit the latch on the unattached end of the cable-management arm onto the outermost bracket on
the slide assembly, until the latch engages (see Figure 1-13).

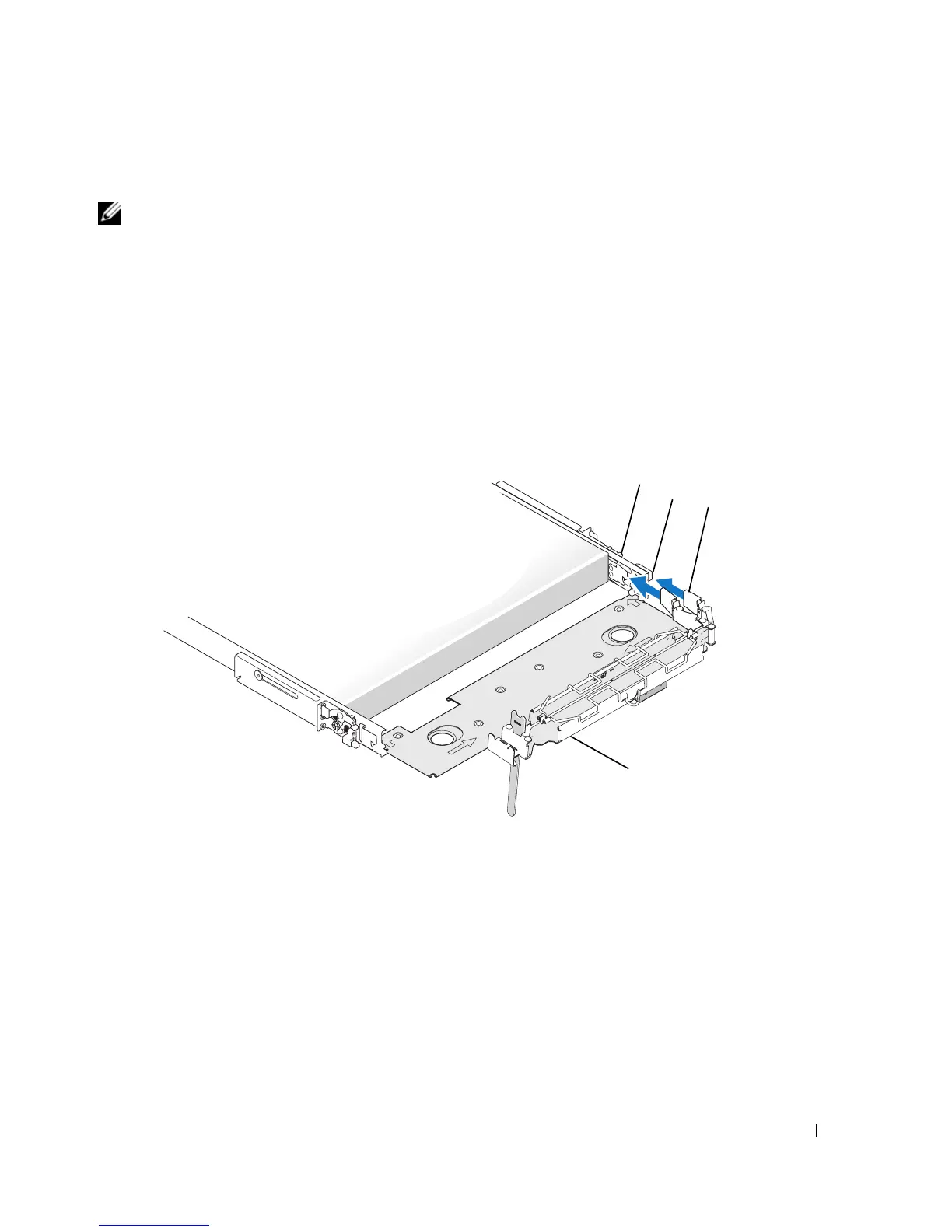

Figure 1-13. Installing the Cable-Management Arm
1 mounting rails (2) 2 brackets (2) 3 latches (2)
4 cable-management arm
back of system
1
2
4
3

Dell PowerEdge 1950 Specifications

General

Processor Sockets	2
Chipset	Intel 5000X
Memory Slots	8 DIMM slots
Network	Dual embedded Broadcom NetXtreme II 5708 Gigabit Ethernet
Form Factor	1U Rack
Processor	Intel Xeon 5100, 5300 series
Memory	Up to 32GB DDR2
Storage	SAS or SATA
Drive Bays	Two 3.5" SAS or SATA drives or Four 2.5" SAS or SATA drives
RAID Controller	PERC 5/i, PERC 6/i
Power Supply	670W redundant power supply (optional)
Operating System Support	Microsoft Windows Server, Red Hat Linux, SUSE Linux
