Dell PowerEdge M610 User Manual

System Board Information 331
PowerEdge M605 System Board

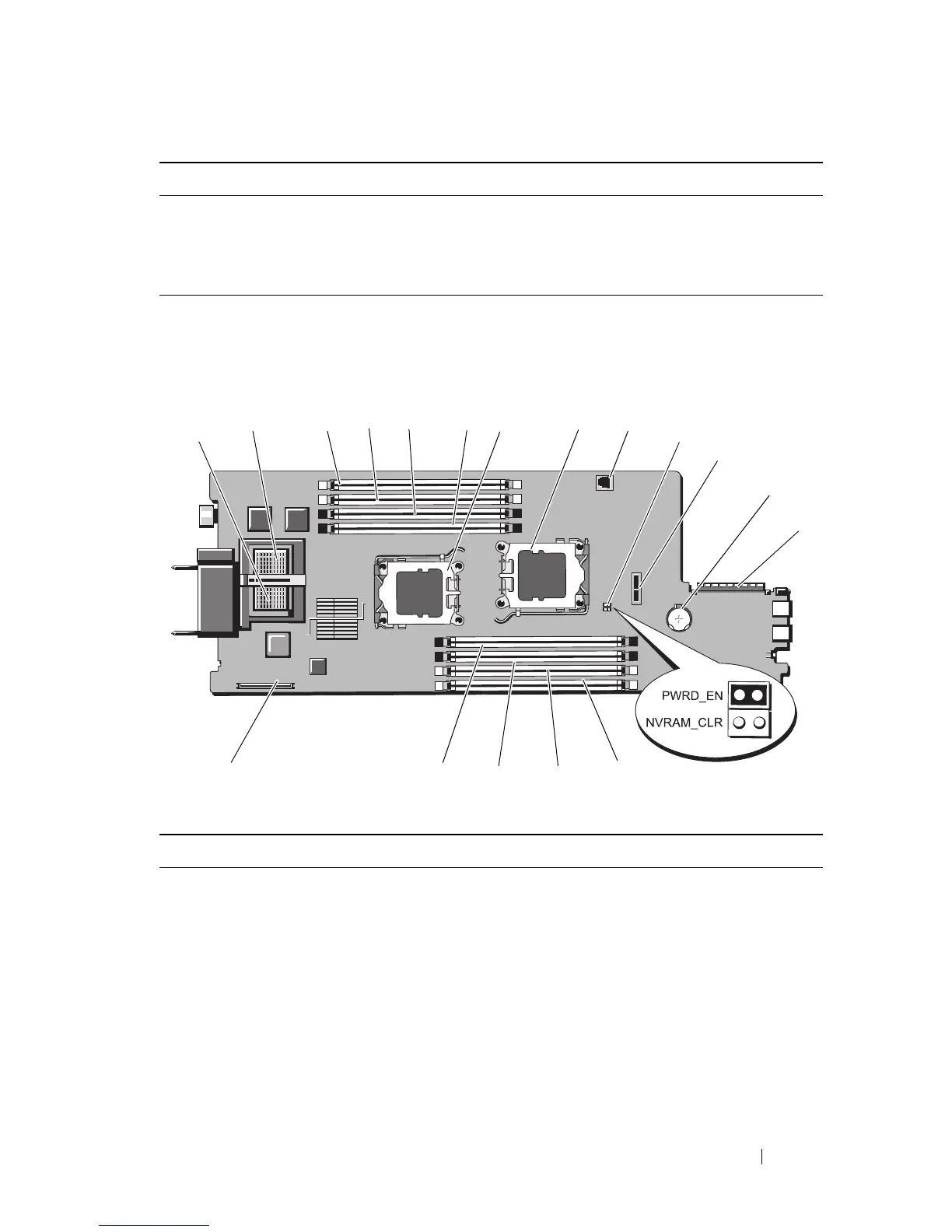

Figure 7-11. PowerEdge M605 System Board Connectors
Connector Description
1 Data 2 Data cable connector 2
2 - Mezzanine interface card connectors
3 Data 1 Data cable connector 1
Table 7-16. PowerEdge M605 System Board Connectors
Connector Description
1 - Mezzanine card connector - Fabric C
2 - Mezzanine card connector - Fabric B
3 A1 Memory module connector, slot A1
4 A2 Memory module connector, slot A2
5 A3 Memory module connector, slot A3
6 A4 Memory module connector, slot A4
7 CPU1 Processor 1 socket
2
1
3
4
5
6
7
8
9
10
11
12
14
15
16
17
13
18
