Dell XPS 630i User Manual

Master I/O Board 103
Installing the Master I/O Board
1 Orient the master I/O board on the metal tray.
2 Replace the screw to secure the master I/O board to the metal tray.
3 Reconnect all cables to the master I/O board.
4 Replace the card fan cage (see "Installing the Card Fan" on page 71).
5 Replace the computer cover (see "Replacing the Computer Cover" on
page 119).
6 Connect your computer and devices to electrical outlets, and turn
them on.

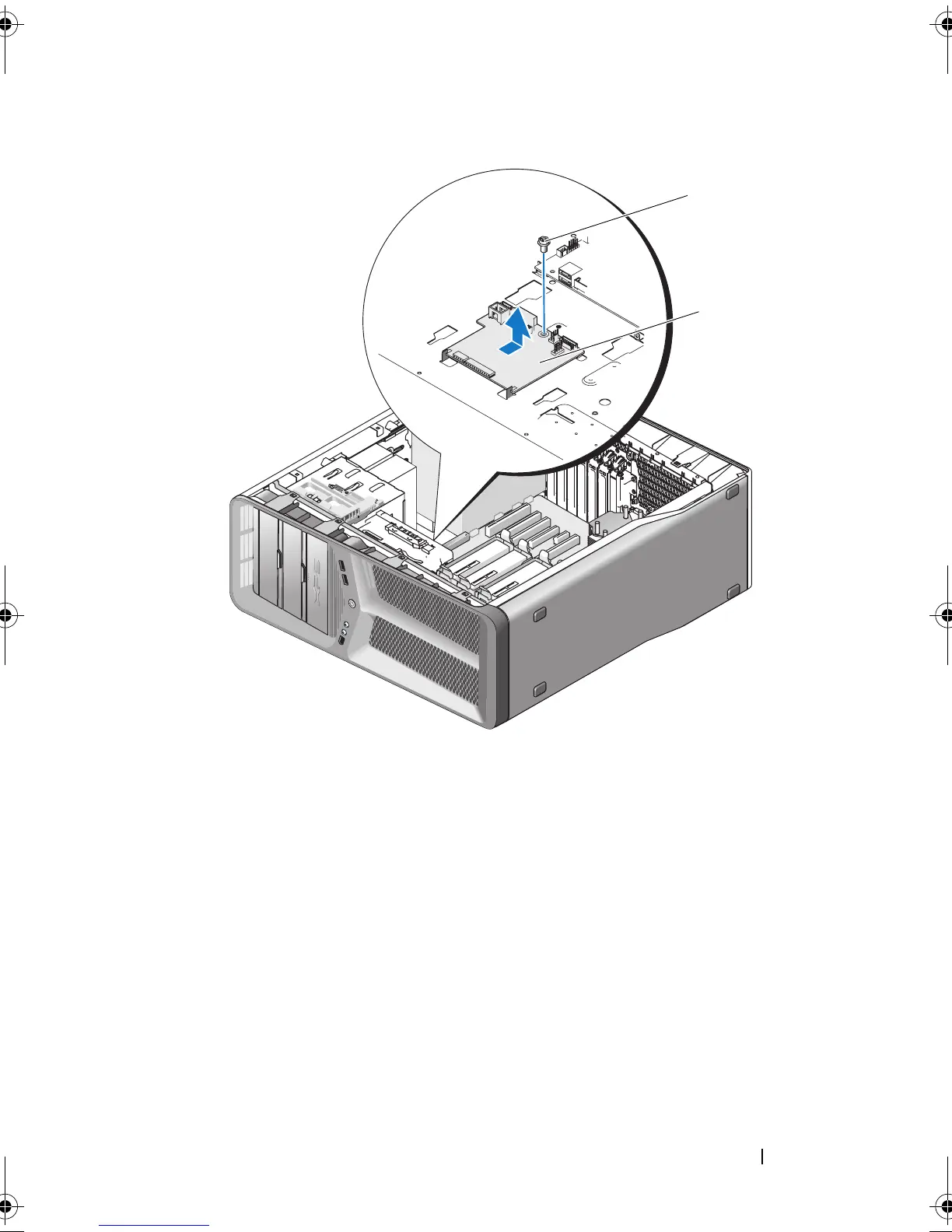

1 screw 2 master I/O board
1
1
2
