Dell XPS 630i User Manual

Technical Overview 23

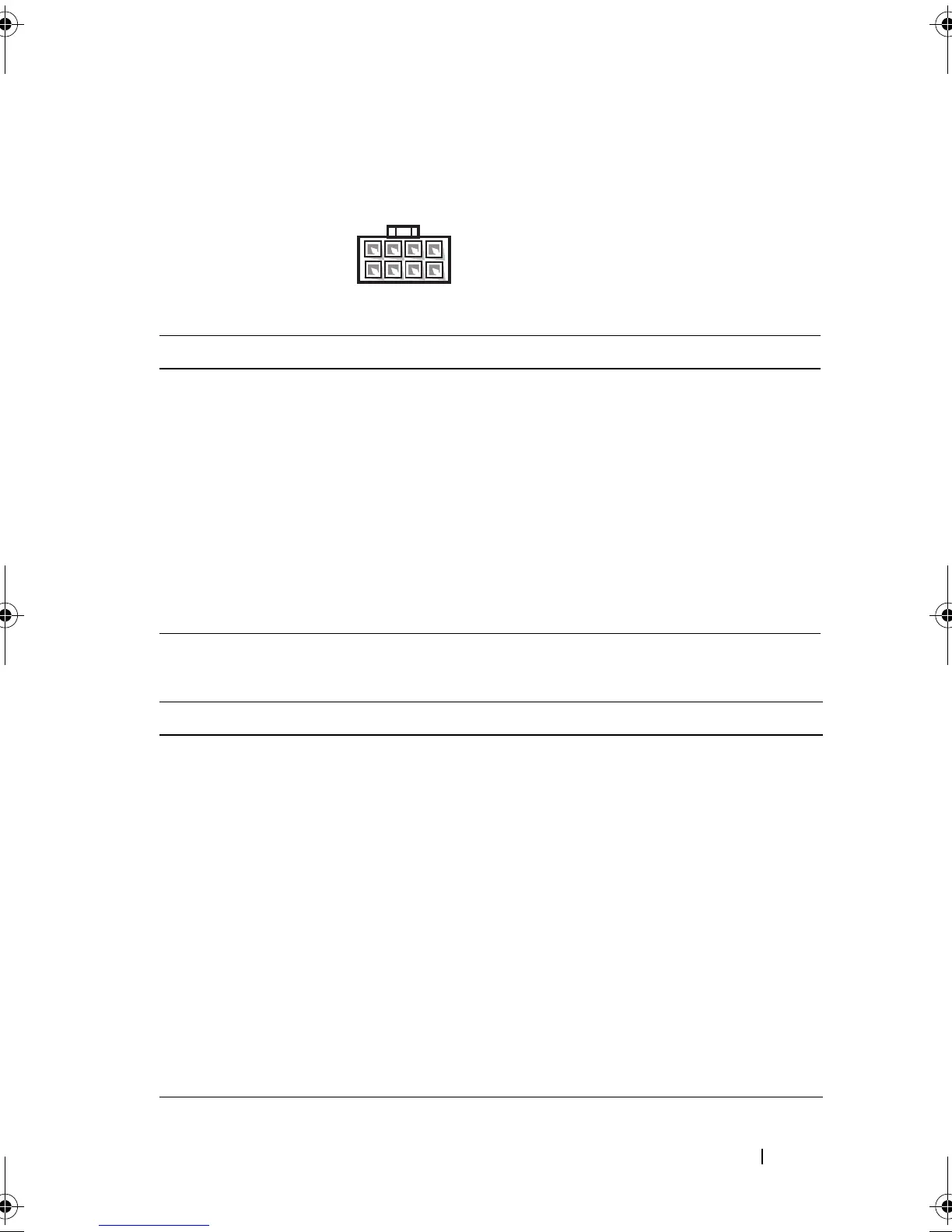

DC Power Connectors P15
Power Button DC Pin Assignments
Pin Number Signal name 16-AWG Wire Color
1 COM Black
2 COM Black
3 COM Black
4 COM Black
5 +12 VDC Yellow
6 +12 VDC Yellow
7 +12 VDC Green/Yellow
8 +12 VDC Green/Yellow
Pin Number Signal name
1 +5 VDC
2PC LED
3 Hard-drive LED
4Ground
5 Cable detect
6 PWRBTN
NOTE: The PWRBTN signal is inverted.
7N/A
8Ground
9N/A
10 Key
4
1
2
3
8
5
6
7
