Delta TP70P User Manual

TP70P Quick Start
2.1 Preparations
2.1.1 Hardware
The hardware required is list below.
1. TP70P-16TP1R 2. Power supply module DVPPS02 3. VFD-M series AC motor drive
2.1.2 Software
The software required is listed below.
 WPLSoft version 2.36 or above
 TPEditor version 1.9 or above
2.1.3 Tools and Materials
The tools and the materials which are required are list below.
 One personal computer (The software mentioned above has been installed.)
 One 100~240 V AC and 50/60 Hz power supply
 One coil of wire
 One screwdriver
 One USB cable (Pleae refer to section 3.1 for more information about installing a USB driver.)

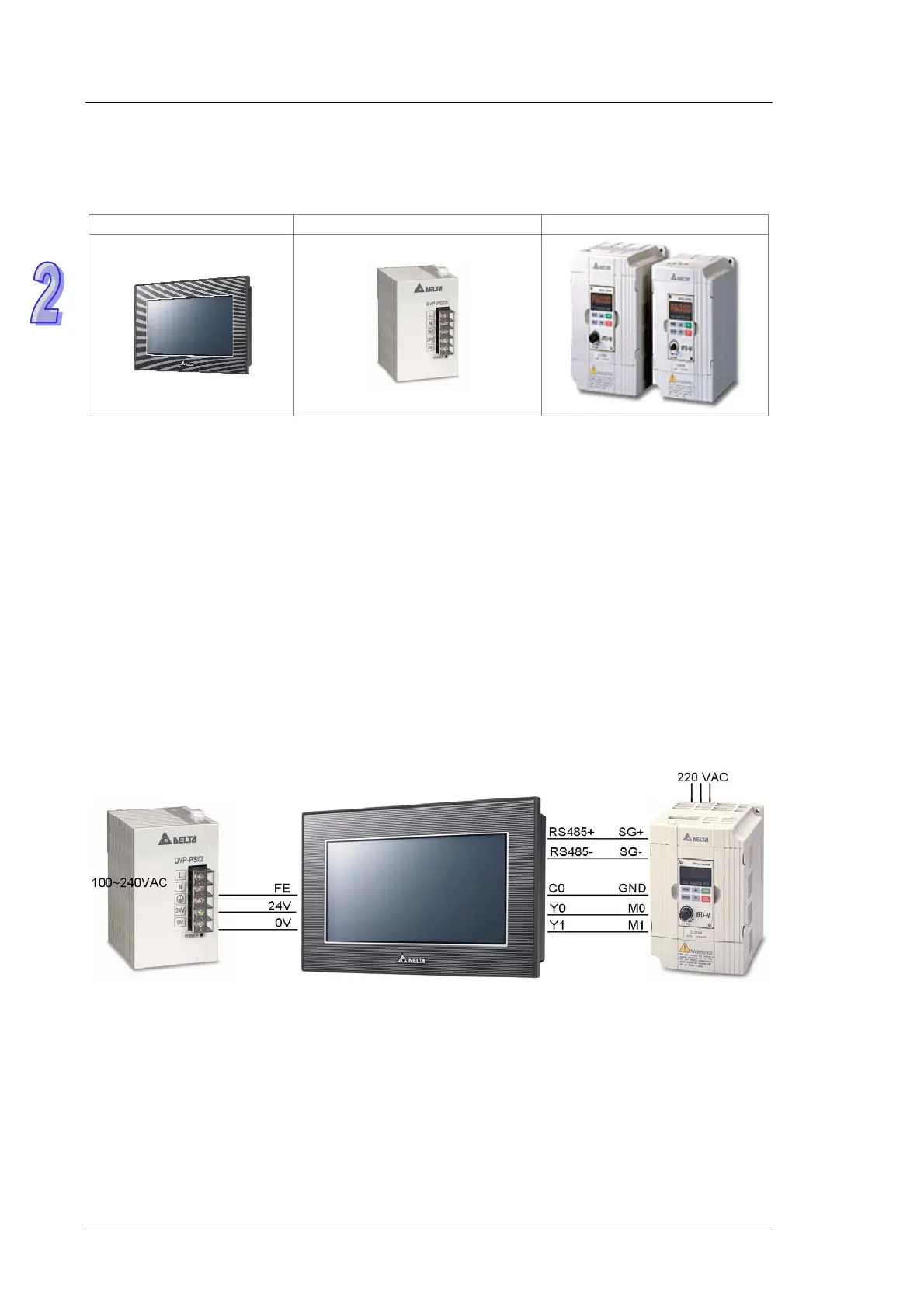

2.2 Wiring
After users install a text panel, they can wire the text panel. In order to ensure that the users can write
programs smoothly, the users need to at least connect power cables. Please connect power cables to a text
panel when the text panel is disconnected. The structure required is like the one shown below.
2-2
