Delta TP70P User Manual

Chapter 2 Writing Programs
5. Backward rotation swithc (Y1)
6. Stop indicator (M3)
Objects displayed on TP70P:
1. Forward rotation control
2. Backward rotation control
3. Stop control
4. Rota
tional speed input
5. Forward rotation indicator
6. Backward rotation indicator
7. Stop indicator
8. Current rotational speed
9. Warning message
2.4 Writing a Program for a Text Panel
The writing of a program for a text panel is described in this section. Please refer to TPEditor User Manual for
more infomraiton about the functions of TPEditor.

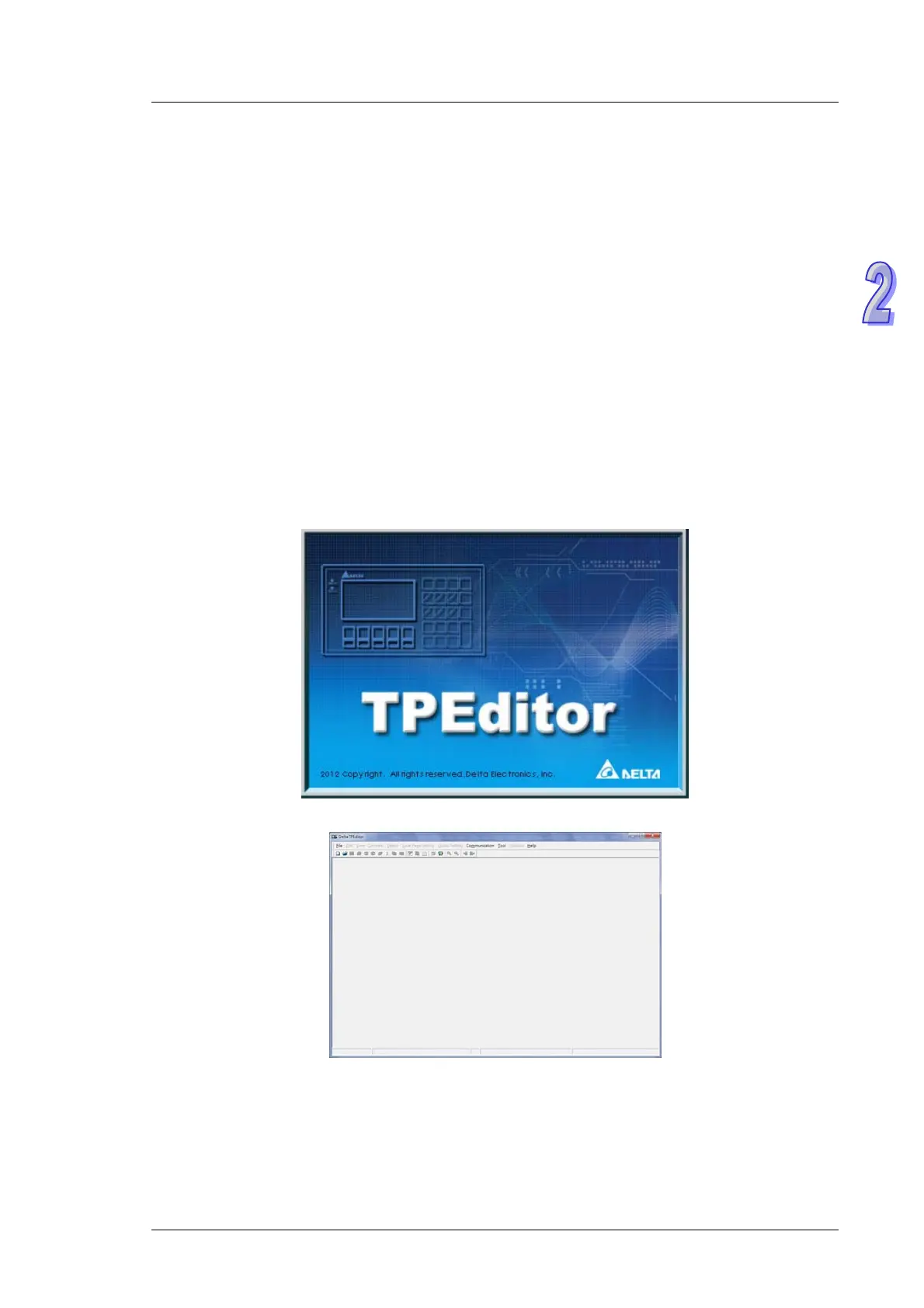

Step 1: Start TPEditor. (
Start

Programs

Delta Industrial Automation

PLC

TPEditor x.xx

TPEditor
x.xx
)
Welcom screen
Main screen
2-5
