ENGLISH
With HDMI connections, the video and audio signals
can
be
transferred
with
a single cable.
I
In
order to play the digital video and audio signals of a
Blu-ray,
DVD-
Video or DVD-Audio disc using HDMI/
DVI
connections, both the connected Blu-ray Disc player /
DVD
player and monitor must be equipped for
a copyright protection system called "HDCP" (High-bandwidth Digital Content Protection).
HDCP is a copy protection technology consisting of data encoding and mutual identification of the
devices.
The
AVR-1909
is
HDCP-eompatible.
For
details
on
the Blu-ray Disc player /
DVD
player or monitor you are
using, refer to its operating instructions.
Copyright protection system (HDCP)
o HDMI video signals
are
theoretically compatible with the
DVI
format.
When connecting to a monitor, etc., equipped with a
DVI-D
connector, connection
is
possible using
an
HDMI/DVI converter cable, but depending
on
the combination of components
in
some cases the video
signals will not
be
output.
o When connecting using
an
HDMI/DVI converter adapter, the video signals may not
be
output properly
due to poor connections with the connected cable, etc.
When connecting
with
an HDMI/DVI converter cable (adapter)
o When the AVR-1909 and Blu-ray Disc player /
DVD
player
are
connected using
an
HDMI cable, also
connect the AVR-1909
and
monitor using
an
HDMI cable.
• If the connected monitor or Blu-ray Disc player /
DVD
player only
has
a DVI-D connector, use
an
HDMI/DVI
converter cable.
When using a DVI cable, no audio signals. are transmitted.
• Use a Deep Color compatible cable for connection to Deep Color compatible devices.
-u·j·-
o The AVR-1909 cannot
be
controlled from another device
via
the HDMI cable.
o The audio signals output from the HDMI connector (sampling frequency, bit rate, etc.) may
be
restricted
by the connected device.
o Video signals
are
not output properly when using devices that
are
not HDCP-compatible.
o Video signals
are
not output if the input video signals do not match the monitor's resolution.
In
this
case, switch the Blu-ray Disc player /
DVD
player's resolution to a resolution with which the monitor
is
compatible.
olf the menu "Manual Setup" -
"HDMI
Setup" - "HDMI Audio Out" setting (u:;:rpage
32)
is
set to
"AMP",
the sound may
be
interrupted when the monitor's power
is
turned off.
o Use a cable
on
which the HDMI logo
is
indicated
la
certified HDMI product) for connection to the HDMI
connector. Normal playback may not
be
possible when using a cable other than one
on
which the HDMI
logo
is
indicated
(a
non-HDMI-certified product).
o If the monitor or Blu-ray Disc player /
DVD
player does not support Deep Color, deep color signal transfer
is
not possible.
o If the monitor or Blu-ray Disc player /
DVD
player does not support
xvYCC,
xvYCC signal transfer
is
not
possible.
o If the monitor does not
support"
Auto Lipsync Correction" function, this function will not work.
o The AVR-1909
is
compatible with the HDMI's
CEC
(Consumer Electronics Controll function.
Please
note
the following.
• It may not work depending
on
the device it
is
connected to and its setup.
• It does not operate with televisions or players that
are
not compatible
with
HDMI's
CEC.
Compatible
Details
Discs
audio
format
(examples)
2-channellinear
2ch
32-192
kHz
CD,
DVD-Video,
PCM
16/20/24 bits
DVD-Audio
Multi-channel
8ch
32-192
kHz
DVD-Audio,
linear
PCM
16/20/24 bits
Blu-ray
Dolby Digital,
DTS
Bitstream DVD-Video
Dolby Digital
Plus,
DolbyTrueHD, Bitstream Blu-ray
DTS-HD

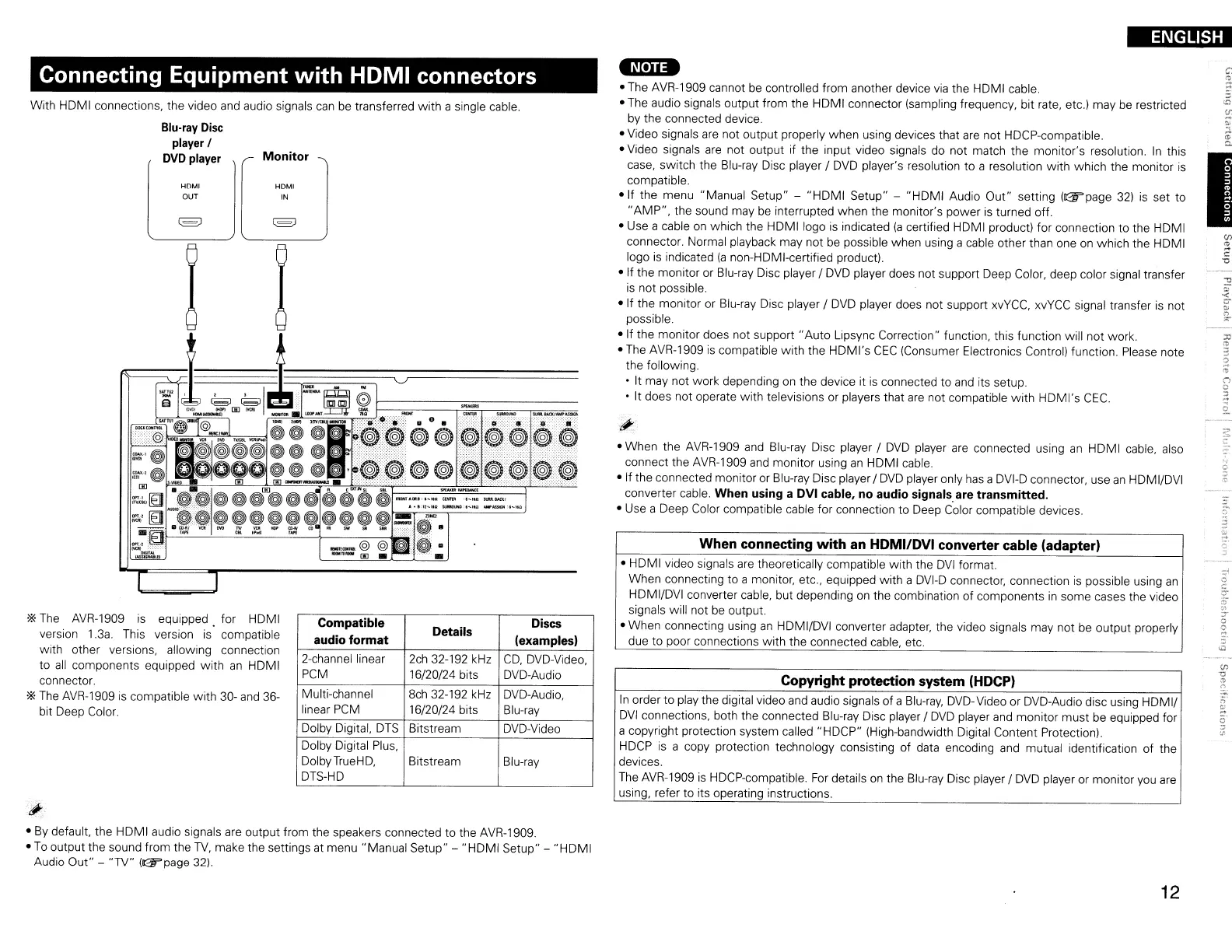

Connecting Equipment with HDMI connectors
'*
The AVR-1909
is
equipped. for HDMI
version 1.3a. This version
is
compatible
with other versions, allowing connection
to
all
components equipped
with
an
HDMI
connector.
'*
The
AVR-1909
is
compatible
with
30- and 36-
bit Deep Color.
tI-
o
By
default, the HDMI audio signals are output from the speakers connected to the AVR-1909.
o
To
output the sound from the
TV,
make the settings at menu "Manual Setup" - "HDMI Setup" -
"HDMI
Audio Out" -
"TV"
(R::iT'page
32).
12
To Next Page
