Connecting
the
Monitor

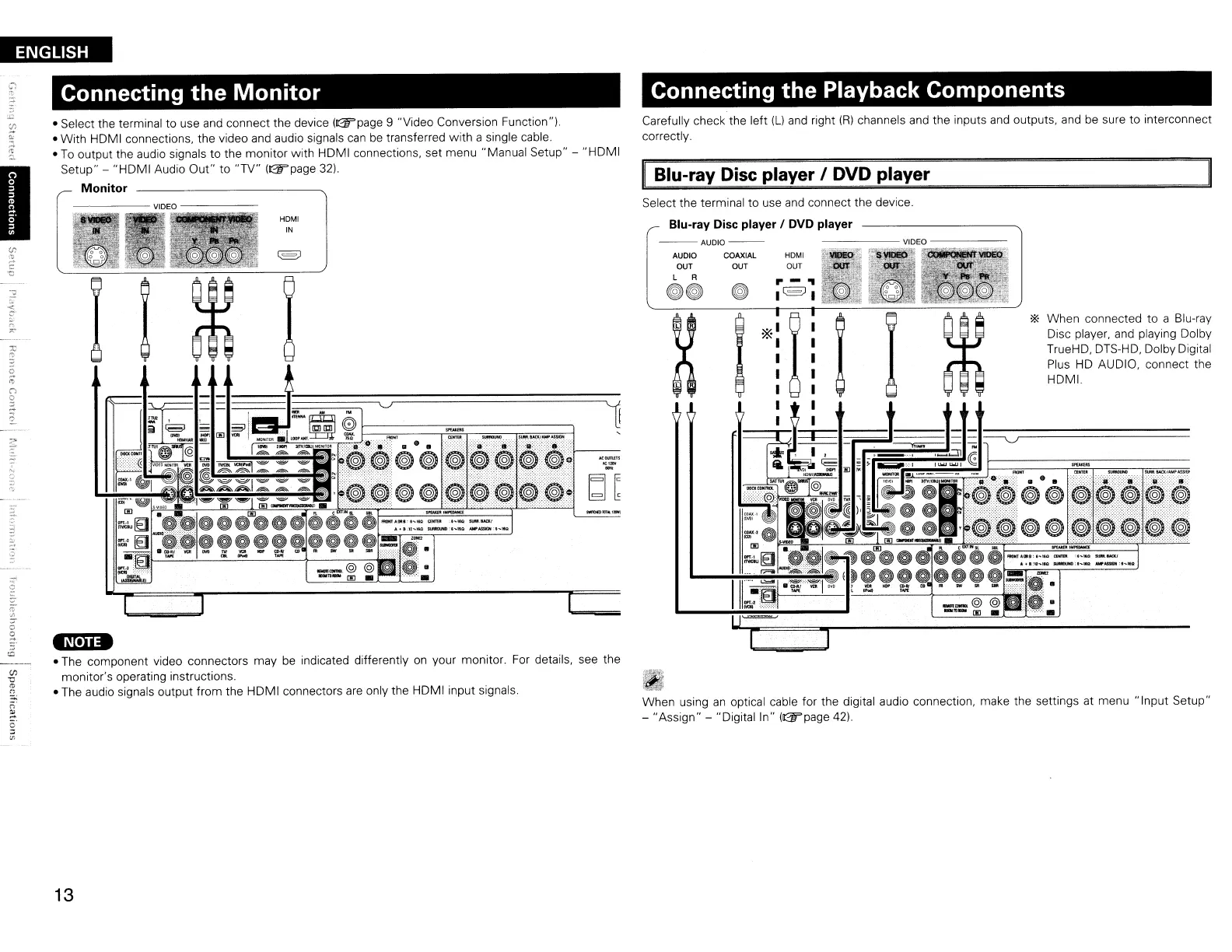

Connecting the Playback Components
- T- '
* When connected to a Blu-ray
Disc player, and playing Dolby
TrueHD, DTS-HD, Dolby Digital
Plus
HD
AUDIO, connect the
HDMI.
J
--AUDIO--
AUDIO COAXIAL
OUT OUT
L R
f)f)
f)
Blu-ray Disc player I DVD player
Carefully check the left
(l)
and right
(R)
channels and the inputs
and
outputs, and be sure to interconnect
correctly.
Select the terminal to use
and
connect the device.
Blu-ray Disc player I DVD player
When using
an
optical cable for the digital audio connection, make the settings at menu
"Input
Setup"
-
"Assign"
-
"Digitalin"
(Gf'page
42).
HDMI
IN
• Select the terminal to use and connect the device
(Gf'page
9 "Video Conversion Function").
•
With
HDMI connections, the video and audio signals
can
be transferred
with
a single cable.
• To output the audio signals to the monitor with HDMI connections, set
menu"
Manual Setup" -
"HDMI
Setup" -
"HDMI
Audio
Out"
to
"TV"
(Gf'page
32).
Monitor
iN,n•
• The component video connectors may be indicated differently
on
your monitor. For details, see the
monitor's operating instructions.
• The audio signals output from the HDMI connectors
are
only the HDMI input signals.
