Denon AVR-1909 Owner's Manual

ENGLISH

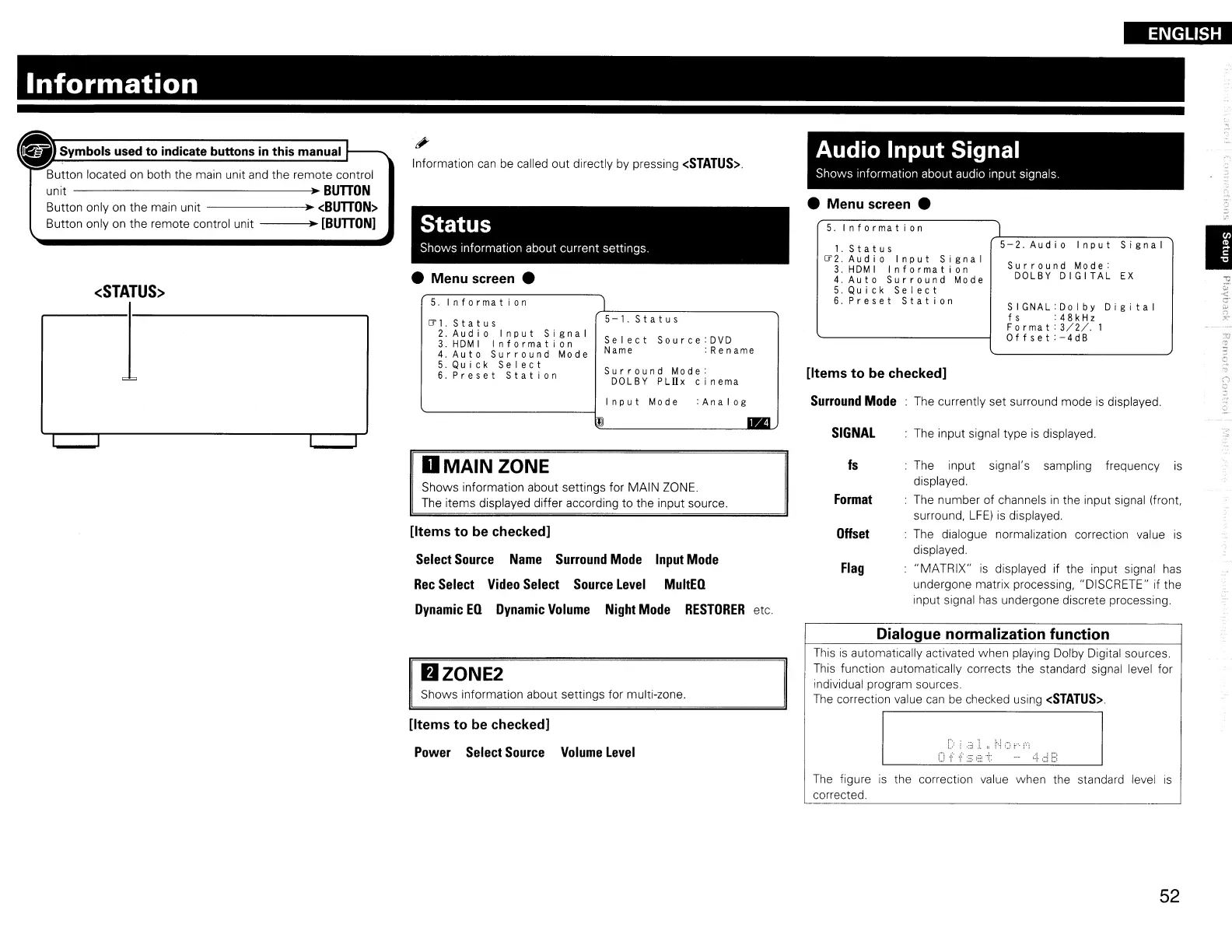

Information
• Menu screen •
;
Information can be called out directly by pressing <STATUS>.
Status
Shows Information about current settings
I
SIGNAL: Dol by Dig ita I
Is :48kHz
For ma t : 3/2/. 1
01Iset:-4dB
5-2.Audio Input Signal
Surround Mode:
DOLBY DIGITAL EX
)5. I n lor ma t ion
1. Status
IT2.Audio Input Signal
3.HDMI Information
4. Auto Surround Mode
5.Quick Select
6.Preset Station
Audio Input Signal
Shows Information about audiO Input signals
.:
Surround Mode The currently set surround mode is displayed.
• Menu screen •
[Items to be checked]
5-1. Status
Surround Mode:
DOLBY PLlIx cinema
Input Mode :Analog
Select Source:DVD
Name :Rename
5. I n lor ma t ion
IT1. Status
2. Audio Input Signal
3. HDM I I n lor ma t ion
4. Auto Surround Mode
5.Quick Select
6.Preset Station
<STATUS>
1
• Symbols used to indicate buttons in this manual
Button located on both the main unit and the remote control
unit •
BUTTON
Button only on the main unit • <BUTTON>
Button only on the remote control unit • [BUTTON]
SIGNAL
The input signal type is displayed.
DMAIN ZONE
Shows information about settings for MAIN ZONE.
The items displayed differ according to the input source.
[Items to be checked]
Select Source Name Surround Mode Input Mode
Rec Select Video Select Source level MultEn
Dynamic En Dynamic Volume Night Mode RESTORER etc
fs
Format
Offset
Flag
The input signal's sampling frequency is
displayed.
The number of channels
in the input signal (front,
surround,
LFE) is displayed.
The dialogue normalization correction value
is
displayed.
"MATRIX"
is displayed if the input signal has
undergone matrix processing, "DISCRETE" if the
input signal
has undergone discrete processing.
Dialogue normalization function
If)ZONE2
Shows information about settings for multi-zone.
[Items to be checked]
Power Select Source Volume level
This is automatically activated when playing Dolby Digital sources.
This function automatically corrects the standard signal level for
individual program sources.
The correction value can be checked using <STATUS>.
I
.. ",: .:. " :.: '.): . '" I
, ('! oi:' .:> .~ ... ~. +. 4 ::::1 ::::
The figure is the correction value when the standard level is
corrected.
52
