Denon AVR-887 User Manual

Easy Setup Procedure
ENGLISH
ENGLISH
Easy Setup Procedure
9
• For best picture quality (especially with progressive DVD and other high definition sources), choose the
component video or HDMI connection to your monitor. S-Video and composite video outputs are also
provided if your monitor does not have component video inputs.

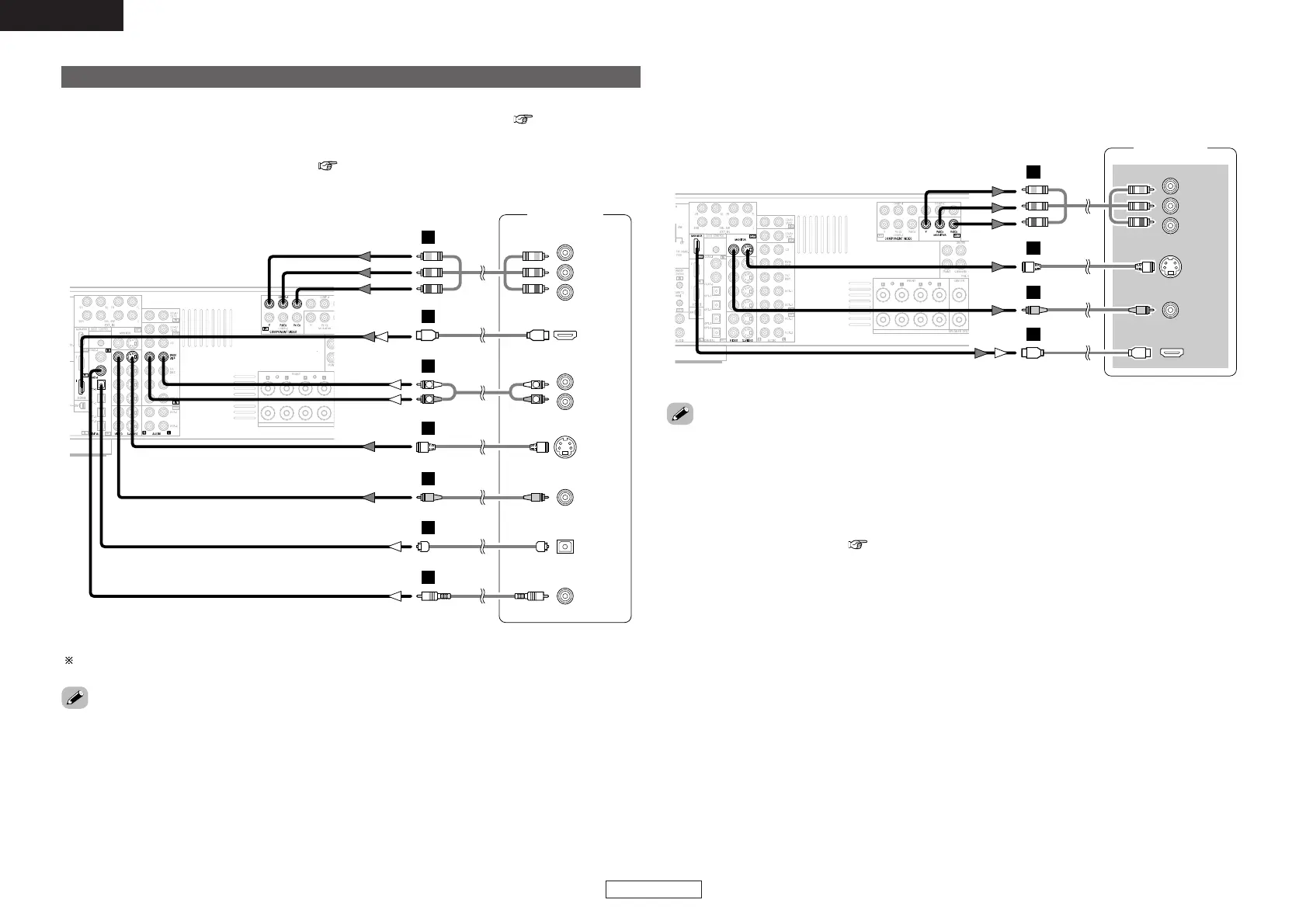

Connecting a DVD player and monitor
•To connect the video output from the DVD player to the AVR-887, you only need to choose one
connection type. For more information about the video up conversion function ( page 15).
•To connect the digital audio output from the DVD player, you can choose from either the coaxial or
optical connections. If you choose to use the coaxial connection, it needs to be assigned. For more
information about Digital Input Assignment ( page 49).
Audio signal flow is shown with white arrows, video signal flow is shown with gray arrows.
• Connect a non-DVD video disc player (such as a laser disc, VCD/SVCD, or future high definition disc
player) to the DVD/VDP terminals in the same way.
• The AVR-887 is equipped with HDMI terminals, so it can be connected to a DVD player or monitor using
an HDMI cable.
• The component video input and/or output terminals may be labelled differently on some monitors or
video components. Check the owner’s manuals for other components for further information.
•Audio signals are only output from the HDMI monitor out terminal when audio signals are input to the
HDMI input terminal.
• When connecting the AVR-887 and DVD player using an HDMI cable, also connect the AVR-887 and
monitor using an HDMI cable ( page 19).
DVD player
S VIDEO
OUT
COAXIAL
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
HDMI
OUT
R
L
R
L
F
H
G
A
C
D
I
S VIDEO
IN
VIDEO
IN
HDMI
IN
Monitor
COMPONENT VIDEO IN
Y
P
B
PR
F
H
G
I

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
