Denon AVR-887 User Manual

Connecting Other Sources Connecting Other Sources
21
ENGLISH
ENGLISH

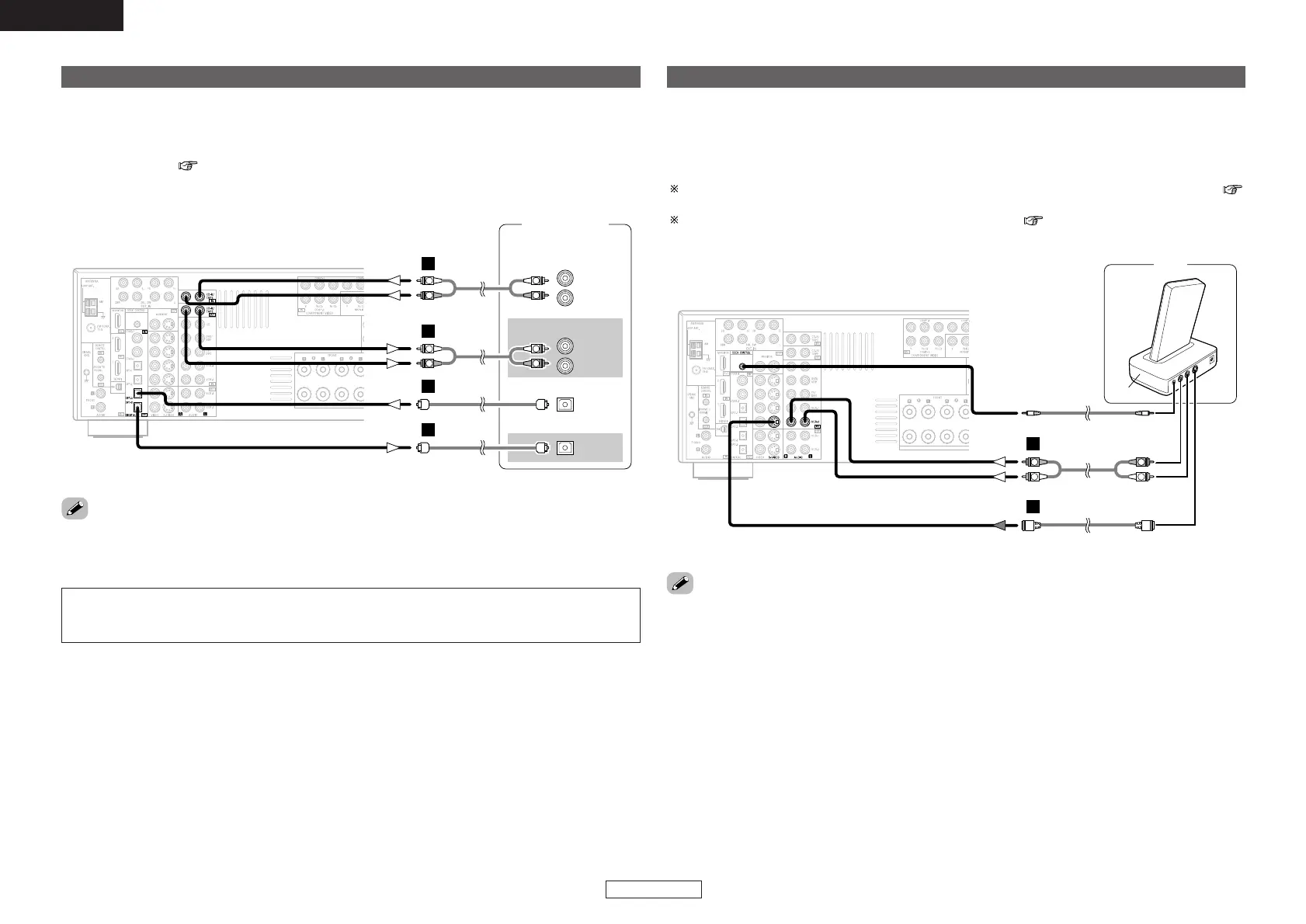

Connecting a tape deck, CD recorder or MD recorder
• If you wish to perform analog dubbing from a digital source, such as a CD or MD recorder to an analog
recorder such as a tape deck, you will need to connect the analog inputs and outputs as shown below,
in addition to the digital audio connections.
• If you choose to use the coaxial connection, it needs to be assigned. For more information about Digital
Input Assignment ( page 49).
R
L
AUDIO IN
R
L
AUDIO OUT
Tape deck /
CD recorder /
MD recorder
OPTICAL
OUT
OPTICAL
IN
R
L
R
L
A
R
L
R
L
A
D
D
NOTE:
• Do not connect the output of the component connected to the OPTICAL 3 OUT terminal on the AVR-
887’s rear panel to any terminal other than the OPTICAL 3 IN terminal.
• The source selected for MAIN ZONE is output from the digital output terminal (OPT-3).
The source selected in the REC SELECT mode is not associated with the output from the digital output
terminal (OPT-3).
Connecting the iPod
®
iPod
ASD-1R
G
AUDIO OUT
S-VIDEO OUT
L
R
L
R
A
When using an iPod, you must connect the Control Dock for iPod (ASD-1R, sold separately) and the DOCK
CONTROL jack on the AVR-887 with a mini-jack and assign the iPod to any AUDIO and/or S-VIDEO
terminal(s).
The diagram below shows an example of connections for when the iPod is assigned to the VCR-2
terminal.
For instructions on assigning the iPod to a specific terminal, see “Setting the iPod Assignment” (
page 50).
For instructions on playing the iPod, see “Playing the iPod” ( page 40).
• The optional standard Control Dock for iPod is DENON ASD-1R sold separately.

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
