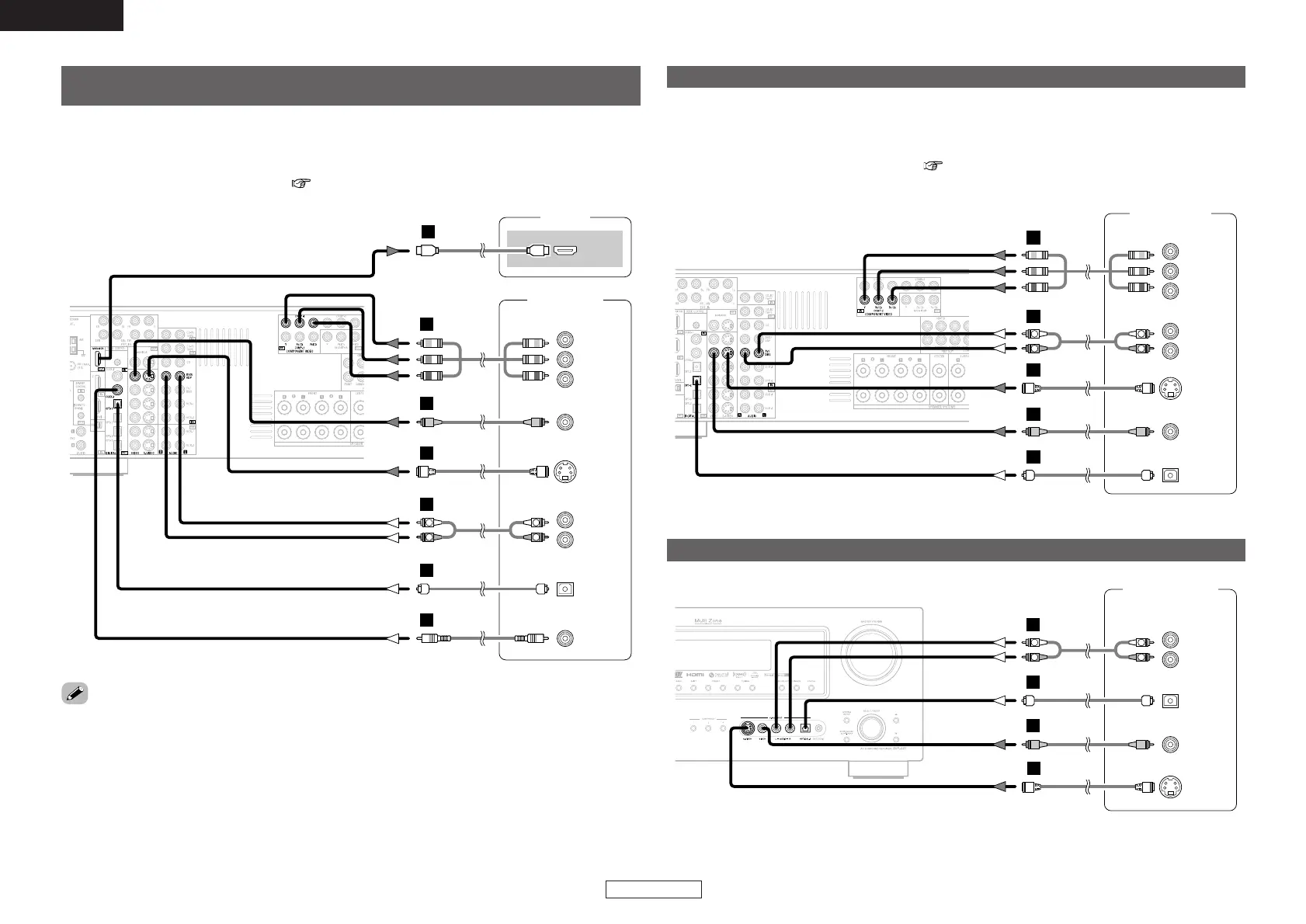

Connecting a TV/DBS tuner
• For best picture quality choose the component video connection to your TV or DBS tuner. S-Video and
composite video outputs are also provided.
•To connect the digital audio output from the TV or DBS tuner, you can choose from either the coaxial or
optical connections. If you choose to use the coaxial connection, it needs to be assigned. For more
information about Digital Input Assignment ( page 49).
F
G
A
TV/DBS tuner
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
R
L
R
L
H
D
Connecting a video camera or video game
Video camera /
Video game
R
L
AUDIO OUT
OPTICAL
OUT
VIDEO
OUT
G
S VIDEO
OUT
R
L
R
L
A
D
F
Connecting equipment with HDMI terminals
[To convert analog video signals to HDMI signals]
Monitor
HDMI
IN
DVD player
S-VIDEO
OUT
COAXIAL
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
I
R
L
R
L
F
H
G
A
C
D
• The AVR-887 is equipped with a function for converting analog video signals into HDMI signals.
You can do this by either a component or a video or a S-Video connection.
•Audio signals are not output from the HDMI monitor output terminal, so also make analog or digital audio
connections. To play sound using digital audio connections, assign the digital terminal (coaxial or optical)
at “Setting the Digital In Assignment” ( page 49).
• Use an HDMI monitor compatible with an HDMI input resolution of 480i or 576i.
• If your monitor is not equipped with an HDMI terminal, connect the AVR-887 to the monitor using the
component video, S-Video, or composite video terminals.

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
