For instructions on operations using the MULTI ZONE functions ( page 42 ~ 44).
Connecting the MULTI ZONE terminals
• When the power amplifier is assigned to the ZONE2 output channel at “Power Amp Assignment” in the
“System Setup Menu”, the surround back pre-out terminals can be used as the ZONE2 pre-out out
terminals ( page 58).
•If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 out (variable level)
terminals can be used to play a different program source in ZONE2 the same time ( page 42).
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and
connected between the MAIN ZONE and ZONE2, the remote-controllable devices in the MAIN ZONE
can be controlled from ZONE2 using the remote control unit.

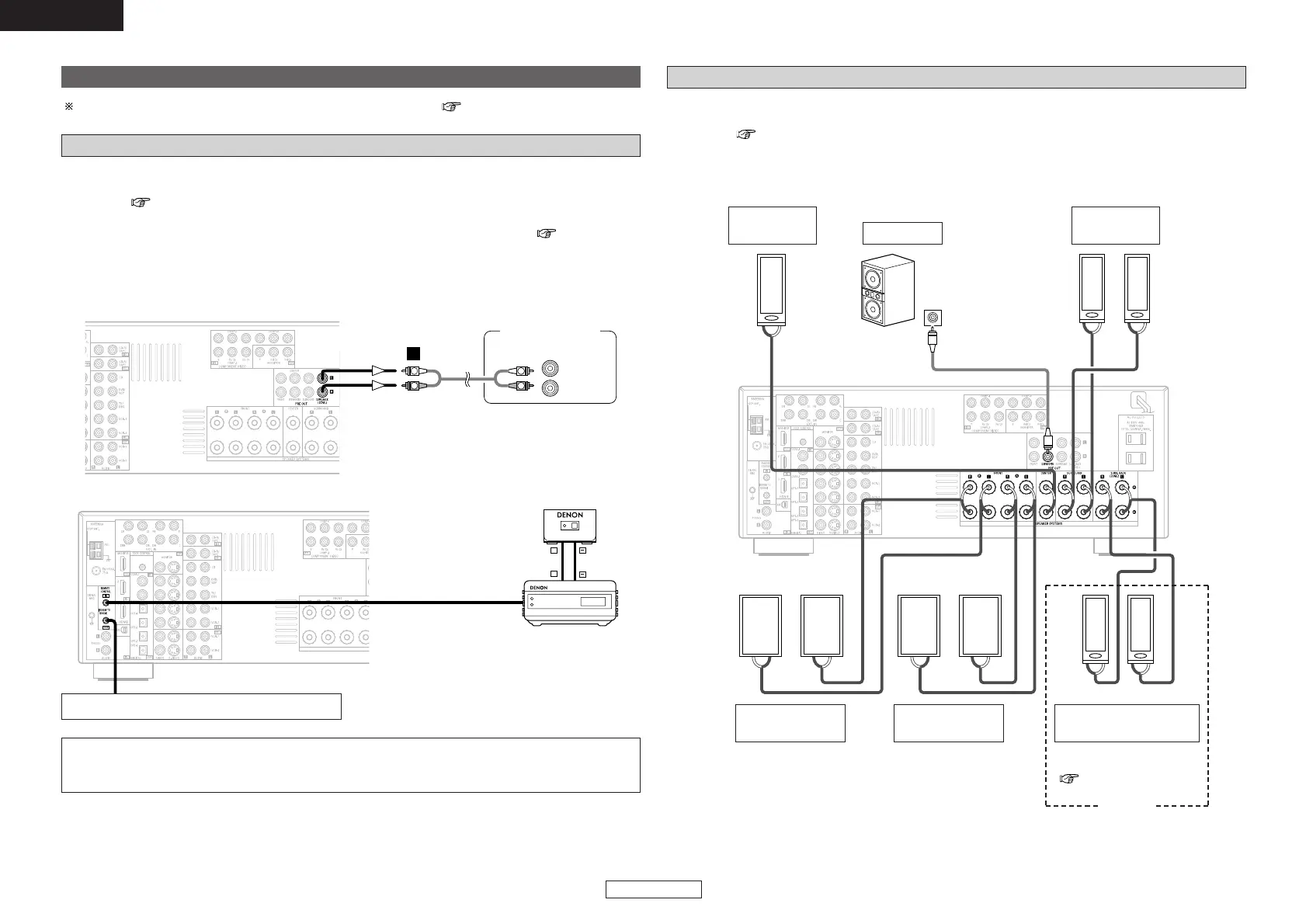

ZONE2 out connections
Premain amplifier or
Power amplifier
(ZONE2)
R
L
IN
(Variable)
R
L
R
L
A
NOTE:
• For instructions on installation and operation of separately sold devices, refer to the devices’
operating instructions.
+
+
OUTPUT
INPUT
AUX OUT
RC-616 INFRARED
RETRANSMITTER
RC-617 INFRARED SENSOR
Extension terminal for future use.
><<>><<>
><
><><
><><
IN
(
L
) (
R
)
(
L
) (
R
)
(
L
) (
R
) (
L
) (
R
)
• When the power amplifier is assigned to the ZONE2 output channel at “Power Amp Assignment” in the
“System Setup Menu”, the surround back speaker terminals can be used as the ZONE2 speaker out
terminals ( page 58).
• The connections diagram below is an example for when the surround back speaker is assigned to the
ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.
ZONE2 speaker out connections
ZONE2
Connection terminal for
subwoofer with built-in
amplifier.
Front speakers
(A)
Surround
speakers
Front speakers
(B)
Subwoofer
ZONE2
Front speakers
Center
speaker
The settings must be changed
to use this speaker for ZONE2
( page 58).

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
