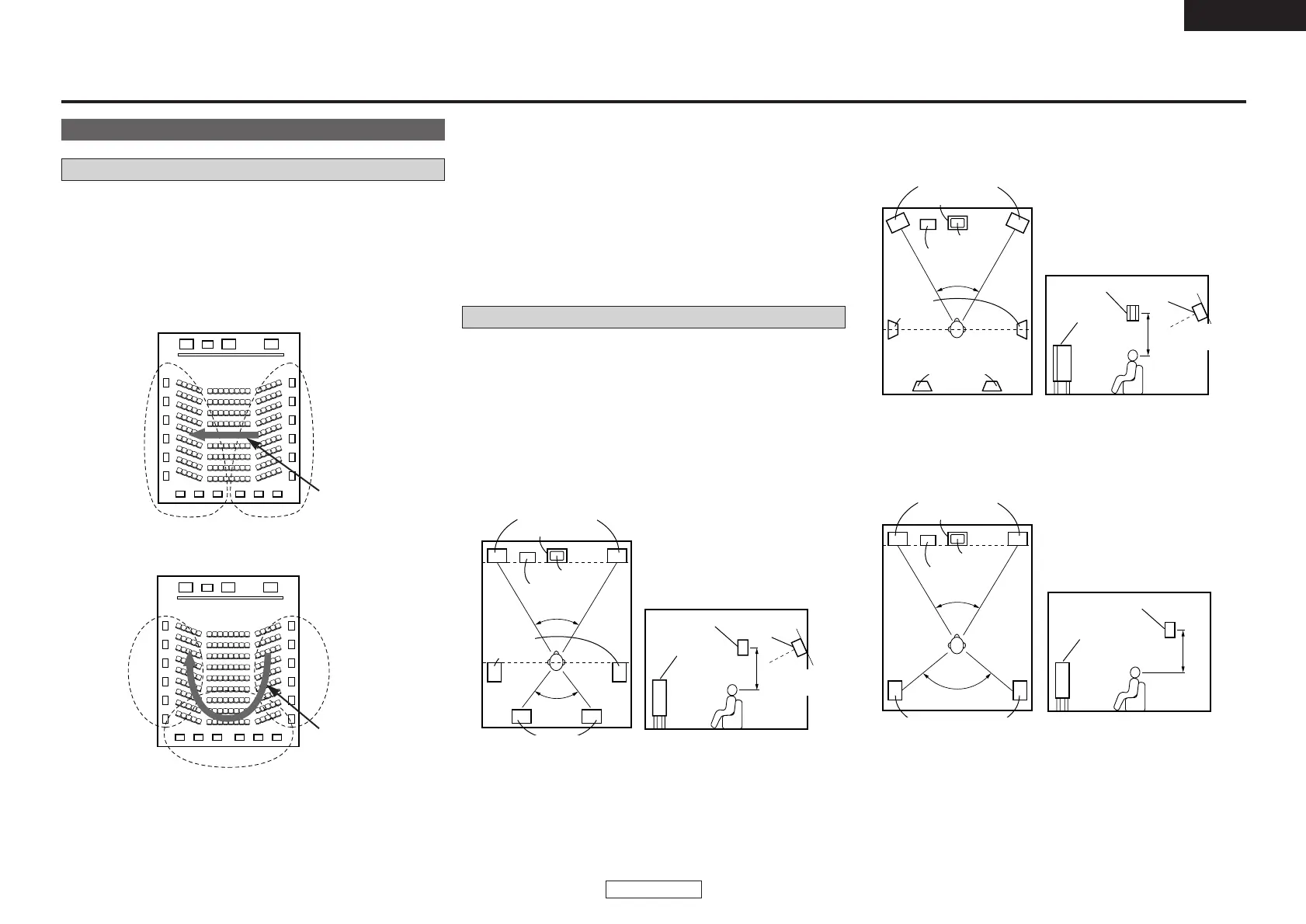

Examples of speaker layouts
Below we introduce examples of speaker layouts. Refer to these to
arrange your speakers according to their type and how you want to
use them.
[1] Using surround back speaker(s)
q When mainly playing movies
Recommended when your surround speakers are single or 2-way
speakers.
Subwoofer
Surround back speakers
Front speakers
60°
60°
Monitor
Center speaker
[As seen from above]
Surround
speakers
Surround speaker
Front speaker
2 to 3 feet/
60 to 90 cm
[As seen from the side]
Surround back
speaker
Point slightly
downwards
Additional Information
About the speakers
Surround back speakers
Sound position directly to the rear can be achieved easily by adding a
surround back speaker to a 5.1-channel system.
In addition, the acoustic image extending between the sides and the
rear is narrowed, thus greatly improving the expression of the
surround signals for sounds moving from the sides to the back and
from the front to the point directly behind the listening position.
FL C
SW
FR
SR chSL ch
Change of positioning and acoustic image
with 5.1-channel systems
Movement of acoustic
image from SR to SL
FL C
SW
FR
SL ch SR ch
SB ch
Change of positioning and acoustic image
with 6.1-channel systems
Movement of acoustic
image from SR to SB to
SL
In addition to sources recorded in 6.1-channels, the surround effect of
conventional 2- to 5.1-channel sources can also be enhanced.
¢ Number of surround back speakers
We recommend using two speakers.
When using dipolar speakers in particular, be sure to use two speakers.
¢ Placement of the surround left and right channels
when using surround back speakers
We recommend installing the speakers for the surround “L” and “R”
channels a bit forward.
w When playing movies and musics
Surround back
[As seen from above]
Surround
speaker
Front speaker
2 to 3 feet/
60 to 90 cm
[ As seen from the side ]
Surround back
speaker
Point slightly
downwards
45° ~ 60°
Surround
speakers
Subwoofer
Front speakers
Monitor
Center speaker
Surround speakers
[ As seen from above ]
[ As seen from the side ]
Front speaker
2 to 3 feet/
60 to 90 cm
Surround speaker
60°
[2]
When not using surround back speakers
Subwoofer
Monitor
Front speakers
Center speaker
speakers
120°

Denon AVR-887 Specifications

Power

rated output front	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output front alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output center	100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output center alternative	135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
rated output surround back	100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
rated output surround back alternative	135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
power supply	AC 120 V, 60 Hz
power consumption	5.5 A

Audio Inputs and Outputs

analog inputs	9 sets
analog ext inputs	8
digital inputs optical	4
digital inputs coaxial	2
audio delay function	0 - 200 msec.
variable subwoofer crossover	40/60/80/90/100/110/120/150/200/250 Hz

Video Inputs and Outputs

component video inputs	3 sets
composite inputs	5
s-video inputs	5
component video outputs	1 set
composite outputs	3
s-video outputs	3

Audio Performance

frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	100 dB (IHF-A weighted)
tone control treble	±6 dB at 10 kHz
tone control bass	±6 dB at 100 Hz

Weight and Dimensions

dimensions	17-3/32” (W) x 6-47/64” (H) x 16-27/64” (D)
dimensions metric	434 (W) x 171 (H) x 417 (D) mm
weight	29 lbs 5 oz
weight metric	13.0 kg
