Denon DRA-100 Service Manual

3. FRONT ASS'Y
Proceeding : TOP COVER
→
MAIN PCB
→
SMPS PCB
→
FRONT ASS'Y

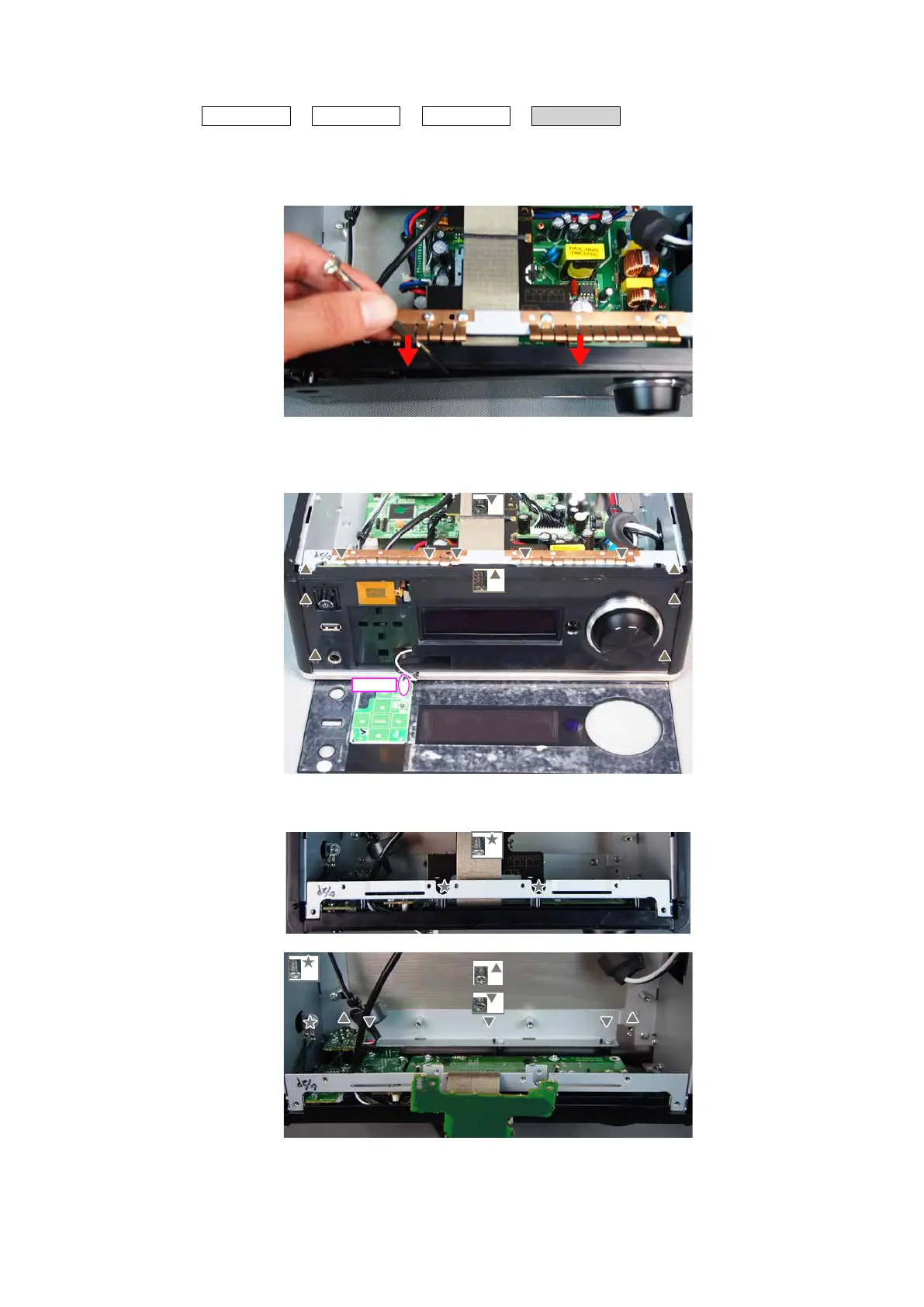

(1) Put the driver in the position of arrow. Remove the window panel.
NOTE: Wrap protective tape, etc. around the tip of a sharp precision screwdriver to prevent the tip of the screwdriver
from damaging or scratching this unit.
Do not reuse window panel after disassembly.
(2) Remove the screws.
(3) Remove the screws.
(4) Remove the screws.
x6
x5
CP301
x2
x3
x2
x2
15

Denon DRA-100 Specifications

General

Internet radio	Yes
Supported radio bands	-
Impedance	8 Ω
RMS rated power	70 W
Product color	Silver
Headphone connectivity	6.3 mm
AUX in	No
Audio (L/R) out	1
AC outlets quantity	1 AC outlet(s)
Power consumption (typical)	60 W

Weight and Dimensions

Depth	332 mm
Width	280 mm
Height	160 mm
Weight	4800 g
Dimensions (WxDxH)	280 x 332 x 160 mm
