Denon DRA-100 Service Manual

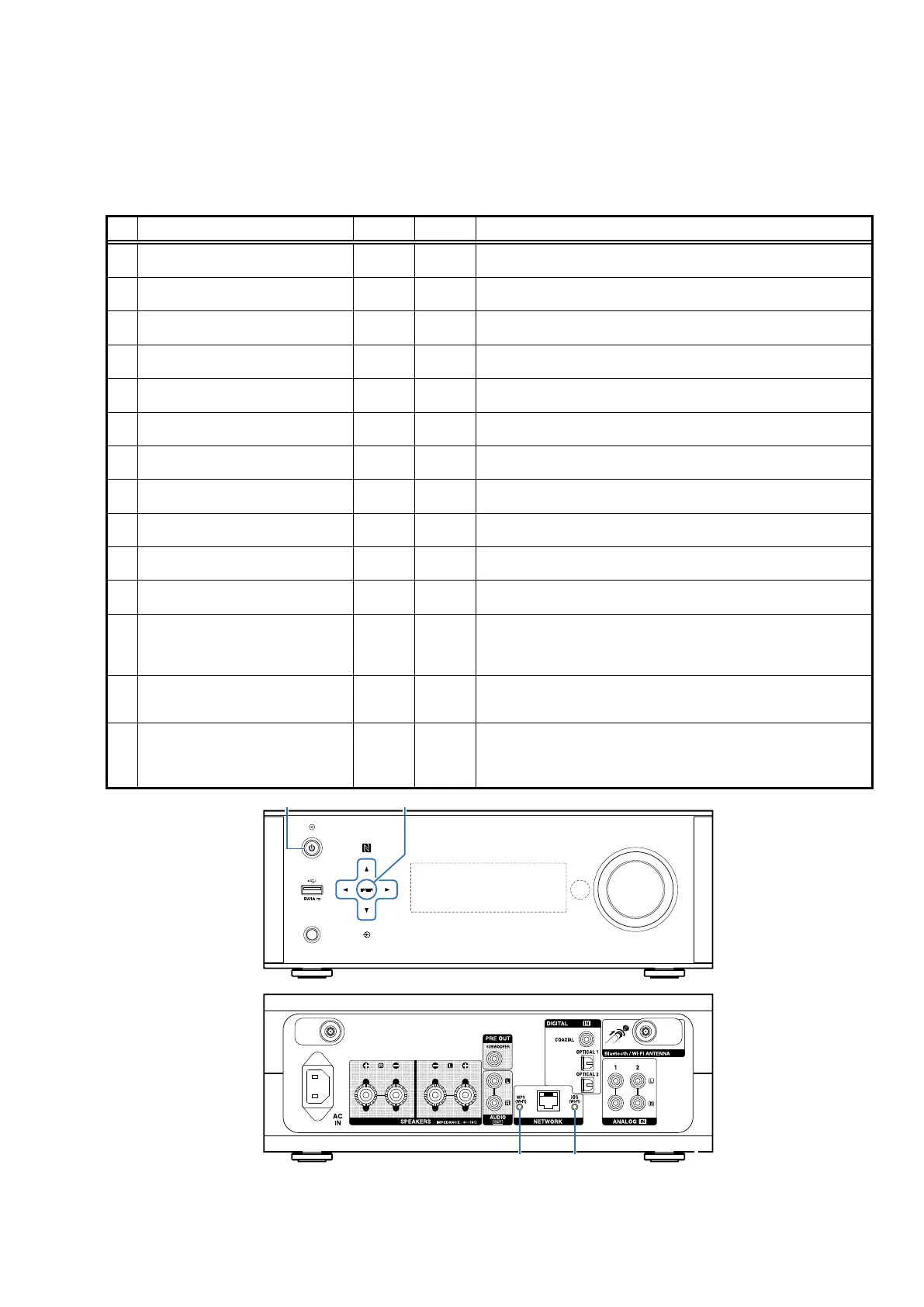

SPECIAL MODE
Special mode setting button
b
No. 1 - 12 ： Insert the AC plug while pressing button "
A
", and wait for more than 3 seconds.
Select the mode using the "
CURSOR
d
" and "
CURSOR
f
" buttons, and press the "
Enter
" button to enter.
b
No. 13 - 15 ： Insert the power plug while pressing button "
A
", and wait for more than 3 seconds.
b
No. 14 ： Insert the power plug while pressing buttons "
A
" and "
B
" together, and wait for more than 3 seconds.
Press and hold the respective buttons to enter your desired mode until the "
Standby Indicator
" button lights up.
No. Mode Button A Button B Descriptions
1 Factory Update Mode
X
Mode used to overwrite the rmware during production.
This is not used during servicing.
2 MAC address rewrite mode
X
MAC address rewrite mode
This is not used during servicing.
3 Version Display Mode
X
The rmware version is shown on the display.
(See page 20)
4 Product mode 1
X
Mode used during production.
This is not used during servicing.
5 Product mode 2
X
Mode used during production.
This is not used during servicing.
6 Protection history display mode
X
Displays the protection occurrence history.
(See page 22)
7 DPMS forced up date mode
X
Mode used for development.
This is not used during servicing.
8 Access to development server mode
X
Mode used for development.
This is not used during servicing.
9 Touch Sensor update up date mode
X
Mode used to update the touch sensor rmware.
(See page 29)
10 CY920 rewrite mode
X
Mode used during production.
This is not used during servicing.
11 USB Update mode
X
Switches this unit to USB Update mode.
(See page 25)
12 User Initialization Mode
X
The following 3 points are different from the Factory Reset.
•Does not clear the version information such as rewriting failed log.
•Does not clear the history of protection.
• Network devices are started and initialized. (See page 19)
13 Forced USB All Device Write Mode WPS
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See page 27)
14 Factory Initialization Mode iOS WPS
Restores to the default settings.
b
The Recently Played list will not be initialized.
b
Be sure to do the "User Initialization" after the "Factory Initializa-
tion".
d
CURSORX
iOSWPS
17

Denon DRA-100 Specifications

General

Internet radio	Yes
Supported radio bands	-
Impedance	8 Ω
RMS rated power	70 W
Product color	Silver
Headphone connectivity	6.3 mm
AUX in	No
Audio (L/R) out	1
AC outlets quantity	1 AC outlet(s)
Power consumption (typical)	60 W

Weight and Dimensions

Depth	332 mm
Width	280 mm
Height	160 mm
Weight	4800 g
Dimensions (WxDxH)	280 x 332 x 160 mm
