40
8514-311-001 REV PR
7.2.2 Touch Pad Description
7.2.2.1 Indicator Lights (L.E.D.s)
Description
Cycle (1 through 5) These L.E.D.s are on solid when a particular cycle is chosen for operation
or programming.
Gas Valve This L.E.D. is part of the 4-digit numeric display and will be on solid
during the drying part of a cycle when the gas valve does not need to
be on. The L.E.D. will be blinking when the gas valve needs to be on.
The L.E.D. will not be on solid or blinking (off) if the cycle is stopped,
complete, in cool down, or terminated.
Programming These L.E.D.s are on solid as they are selected during the programming
of the dryer controller.
Stop This L.E.D. is on solid when either the STOP button is pressed once or the
door is opened during an operating cycle.

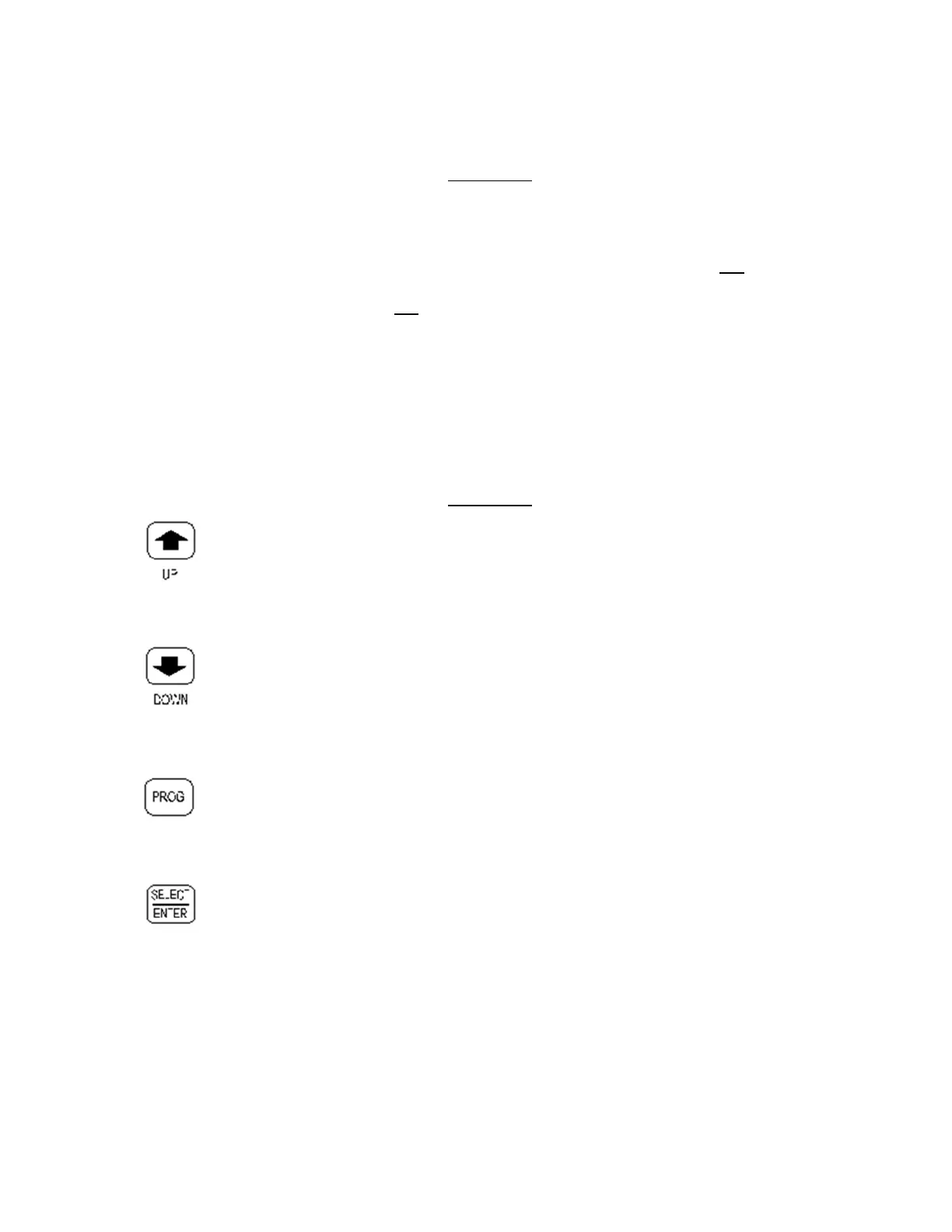

7.2.2.2 Switches (Pushbuttons)
Description
This touch pad switch will increment (increase) dry time, cool down time, and
drying temperature. It will also scroll upwards when selecting a dry cycle
.
This touch pad switch will decrement (decrease) dry time, cool down time, and
drying temperature. It will also scroll downwards when selecting a dry cycle
.
This touch pad switch allows the dryer controller to enter the
permanent programming mode.
This touch pad switch will select one of the three variable parts of the dry cycle
(dry time, temperature, or cool down) by sequencing through them. Once one
of the variable parts of the dry cycle is chosen and changed, this touch pad
switch will enter
.
Figure 7-7
Up/Increase
Figure 7-8
Down/Decrease
Figure 7-9 Program
Figure 7-10
Select/Ente
