XBee/XBee-PRO
®
DigiMesh 2.4 User Manual
Commissioning Pushbutton and Associate LED functionalities
Commissioning Pushbutton
The commissioning pushbutton definitions provide a variety of simple functions to aid in
deploying devices in a network. You can set the commissioning button functionality on pin 20 by
setting the D0 command to 1. It is enabled by default.
Button Presses Sleep Configuration and Sync Status Action
1 Not configured for sleep
Immediately sends a Node Identification
broadcast transmission.
All devices that receive this transmission
will blink their Associate LED rapidly for 1
second. All API devices that receive this
transmission will send a Node
Identification frame out their UART (API
ID 0x95)
1 Configured for asynchronous sleep
Wakes the module for 30 seconds.
Immediately sends a Node Identification
broadcast transmission. All devices that
receive this transmission will blink their
Associate LED rapidly for 1 second. All
API devices that receive this transmission
will send a Node Identification frame out
their UART (API ID 0x95).
1 Configured for synchronous sleep
Wakes the module for 30 seconds (or
until the entire module goes to sleep).
Queues a Node Identification broadcast
transmission to be sent at the beginning
of the next network wake cycle. All
devices that receive this transmission will
blink their Associate LEDs rapidly for 1
second. All API devices that receive this
transmission will send a Node
Identification frame out their UART (API
ID 0x95).
2 Not configured for synchronous sleep No effect.
XBee
20
15
Push button
R
Associate
LED

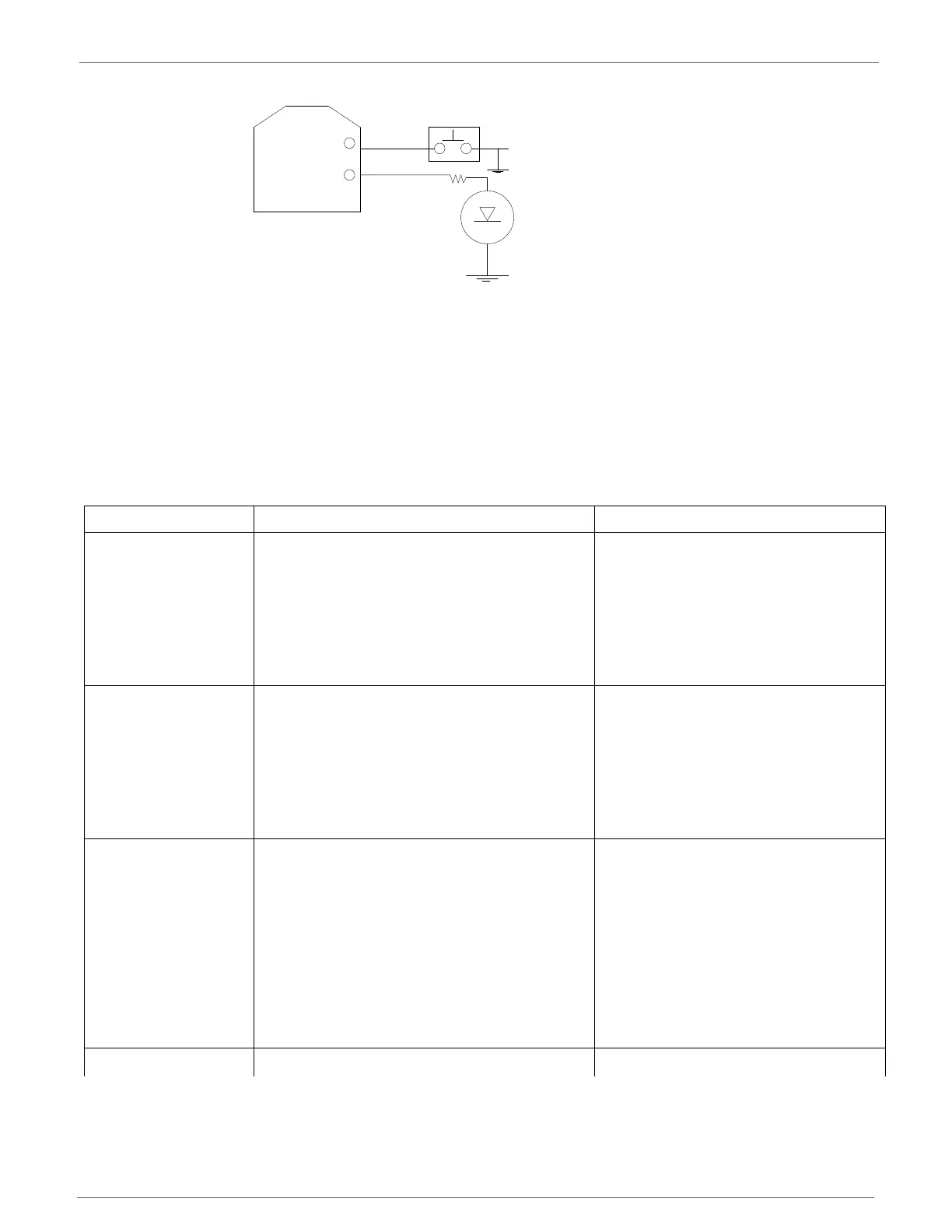

A pushbutton and an LED can be connected to module pins 20 and 15 respectively to
support the commissioning pushbutton and associated LED functionalities.
