EFX48-xx Series with RM3-340/440 Installation and Operation Guide
48
Copyright © 2019 Eaton Corporation. All Rights Reserved.
IPN March 2019
EFX48 e-Fuse Electronic Distribution with embedded Control
The EFX48 provides battery connection, load connection, control, communications and alarm
functions. Management and control of the battery and load connections utilises semiconductor-
based ‘e-Fuse’ protection.
The unit is supplied pre-configured. Configuration changes can be made with the navigation
switch and display, or with a web browser or SNMP tools via a PC connected to the Ethernet
connector.
For basic operating information see EFX48 on page 75.
See page 111 for details of system control alarms.
EFX48 e-Fuse Electronic Distribution with System Control
The EFX48 e-Fuse Electronic Distribution with System Control includes an advanced control
and monitoring solution providing a full suite of communications options, including Ethernet
interface, web server, and SNMP agent.
Alarm notifications may be by SNMP traps, general purpose digital outputs or relay contact
closing or opening (set by configuration).

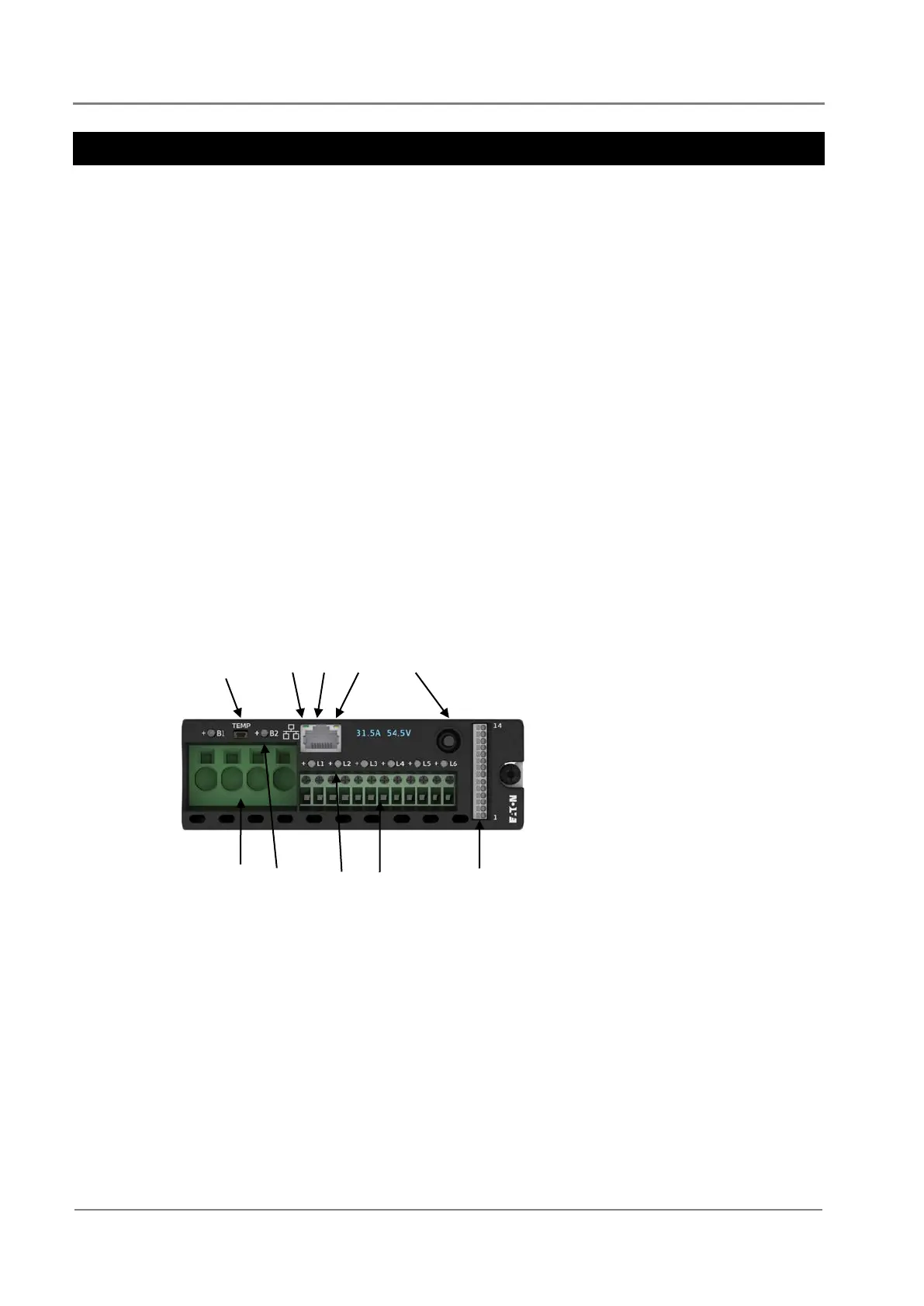

Battery temperature sensor
Ethernet connector
Navigation switch
String connectors
String indicator switches/LEDs
Load indicator switches/LEDs
Load connectors
GPIO connector
Ethernet link LED
Alarm LED
