17

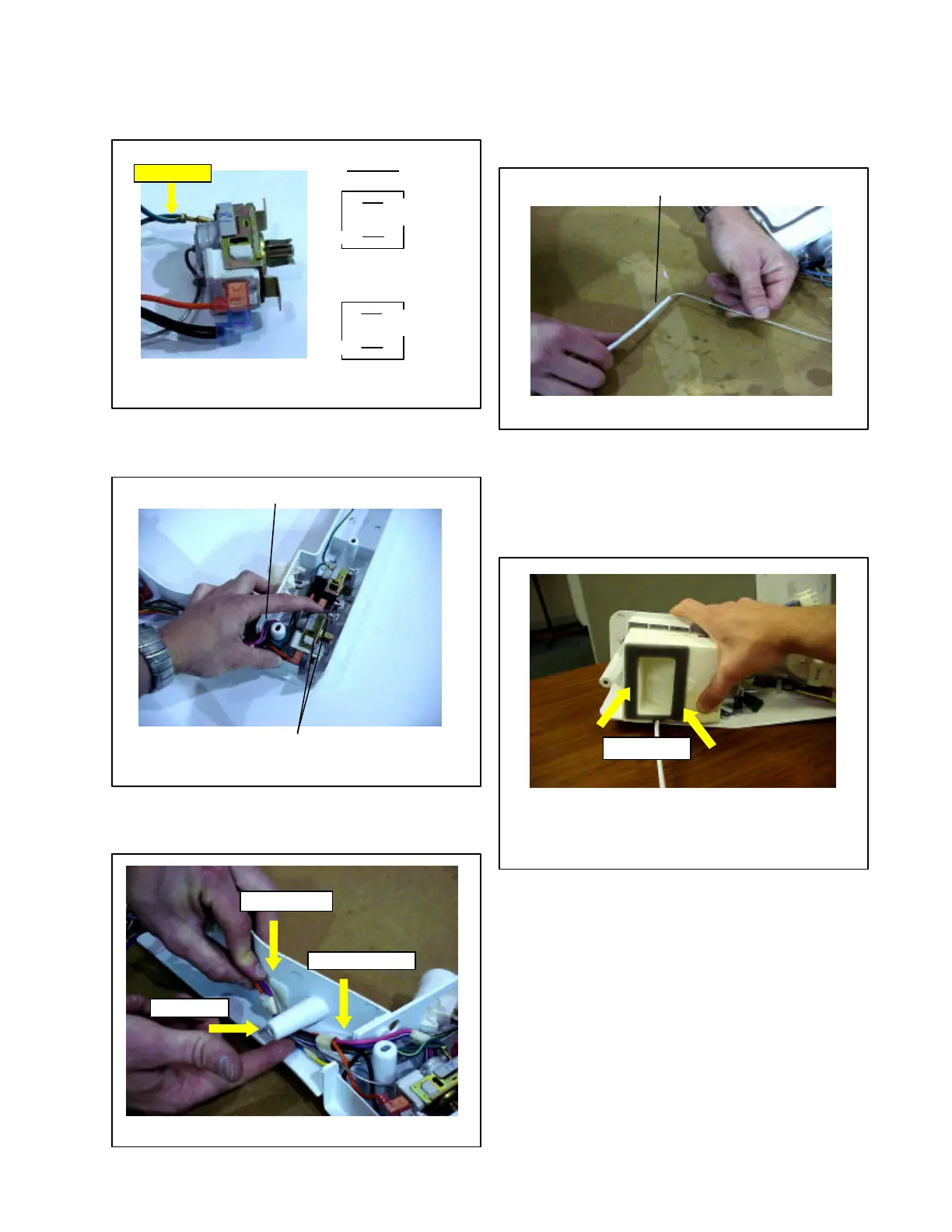

To install new Freezer Control, connect wires as shown
in Figure 5; ground wire (green) must be attached as
well.
GE Contro
top-orange
(or blue)
btm-blk
top-orange
(or blue)
Ground Wire
Figure 5
After wires are connected, snap control into place and
route wires around screw boss. (See Figure 6.)
Snap in place.
Figure 6
Place wires around screw boss.
Route wire harness and capillary tube through wire-way,
under boss screw, and snap into clip as shown in Figure
7.
snap into clip
under boss
Figure 7
Snaps wires and capillary tube into clip behind defrost
control. Place plastic tube over end of control cap tube
until it is even with end of tube. Make 90° bend in tube at
end of plastic sleeve. (See Figure 8.)
Tape freezer cap tube to damper control and install
damper into rear control box. (See Figure 9.) Slide end
of cap tube in slot under air duct, which runs from freezer
to fresh food compartment, until seal on damper
housing contacts liner. Install screws to hold control
housing in place.
Fresh Food Compartment Control
The Fresh Food Compartment Control is located on the
right side on the front control section. The cap tube for
the control runs alongside the freezer cap tube back to
the damper control. Like the freezer control, the last 8
inches is covered with a plastic sleeve. The end of the
cap tube with the sleeve is snapped into a channel in
the air diffuser in front of the damper control. (See Figure
10.) The Fresh Food Compartment Control will have an
OFF position for the servicer to use in testing, but the
word “OFF” will not show on the dial plate. To turn the
control OFF, turn knob counterclockwise past WARM to
the straight down position and you will feel the OFF
position.
Figure 8
Install plastic tube over control cap tube.
PUSH here
Figure 9
Tape control cap tube to bottom of damper
control. Push control into housing.
