66

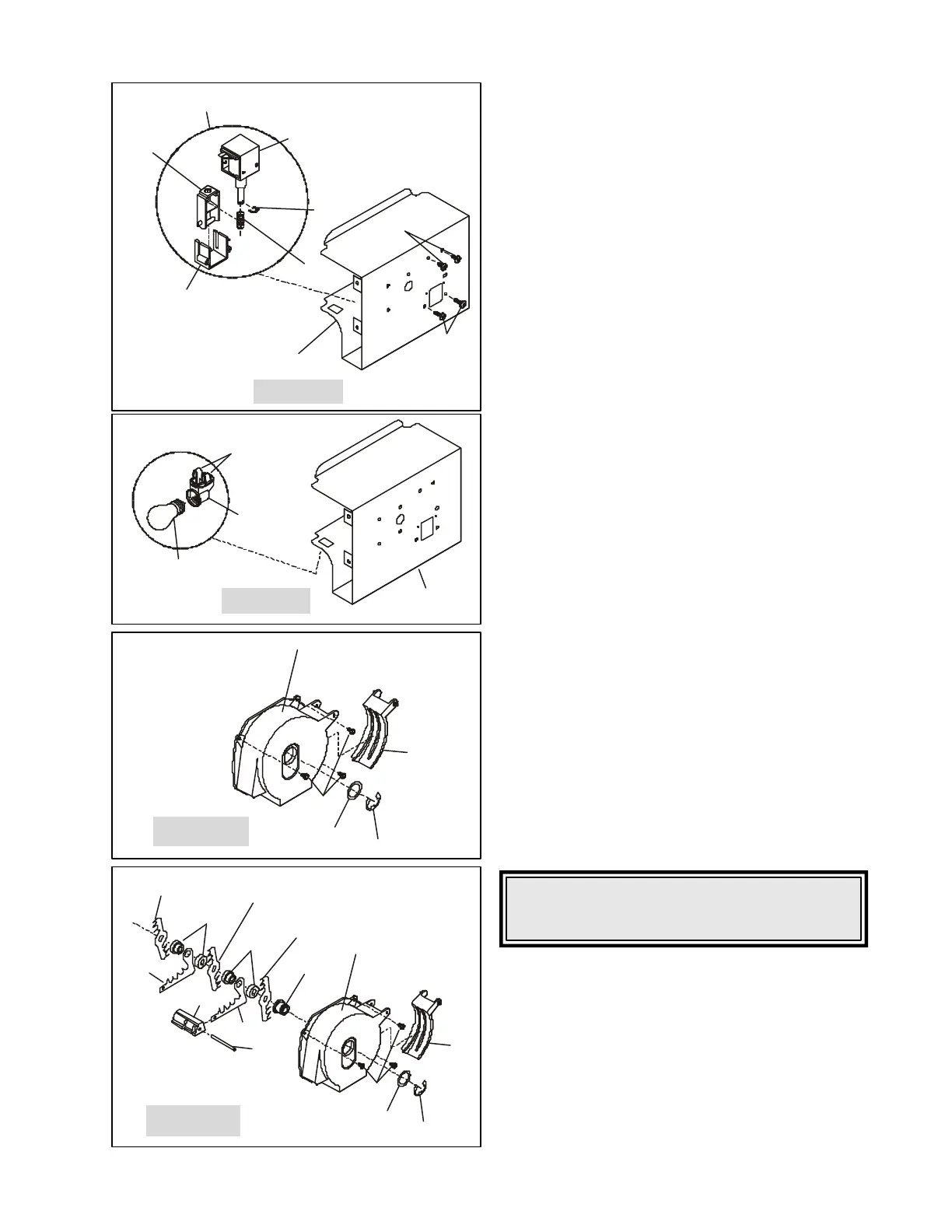

Figure G3
To Test Solenoid Assembly:
1. Read ohms value of solenoid coil using Multi-
meter on resistence scale. (Put test leads on
terminals whereblue with white stripe and white
wires were disconnected from solenoid in Step
6 of procedure “To Remove Solenoid
Assembly”).
2. If resistence reading is extremely high or low,
replace solenoid coil.
To Remove Lamp Socket and Light Bulb:
1. Disconnect refrigerator from electrical supply.
2. Slide Ice Container forward and off of Rail
Assembly. Remove two screws mounting rail
assembly to Evaporator Cover.
3. Lift up on Rail Assembly and pull forward,
freeing it from mounting brackets.
4. Disconnect Molex connector located at back of
Rail Assembly and pull Rail Assembly free.
5. Disconnect yellow and white wires connected
to lamp socket located behind Motor Cover.
6. Press in on two tabs on bottom of lamp socket
base and push through mounting hole.
(See Figure G4)
7. Replace lamp socket in reverse order.
Figure G4
Ice Auger & Crusher Assembly
To remove Ice Auger & Crusher Assembly:
1. Remove four screws holding Ice Container
Front to Ice Container.
2. Remove two screws on underside of Ice
Container, holding Crusher Housing to
container.
3. Remove screw holding Control Rod to
container, located on underside of container.
4. Remove three Hex head screws holding
Crusher Housing to Front Plate.
(See Figure G5)
5. Remove E-ring and washer on front of Crusher
Housing. (See Figure G5)
6. Slide Control Rod free of Crusher Housing
Gate.
CAUTION: The Crusher Blades are very sharp.
Use protective gloves when handling Crusher
Blades.
To Replace Crusher Blades:
1. Remove Auger Nut to gain access to Crusher
Blades. Each blade is separated by Spacer.
(See Figure G6)
2. Remove Crusher Blades and Spacers until you
get to one that needs replacement.
3. Replace assembly in reverse order.
Figure G6
Figure G5
Solenoid Assembly
Spring
E-ring
Actuator
Solenoid
Solenoid Guide
Motor Cover
Screw
Screw
Motor Cover
Light Bulb
Light
Socket
Tabs
Crusher Housing
E-ring
Washer
Gate
Screw
Spiral
Pin
Spacer
Crusher
Blade #2
Spacers
Spacers
Auger NutFixed Blade
Fixed Blade
Crusher Housing
E-ring
Washer
Gate
Screw
Crusher
Blade #1
Crusher
Blade #3
