Electrolux Side by Side Refrigerators User Manual

73

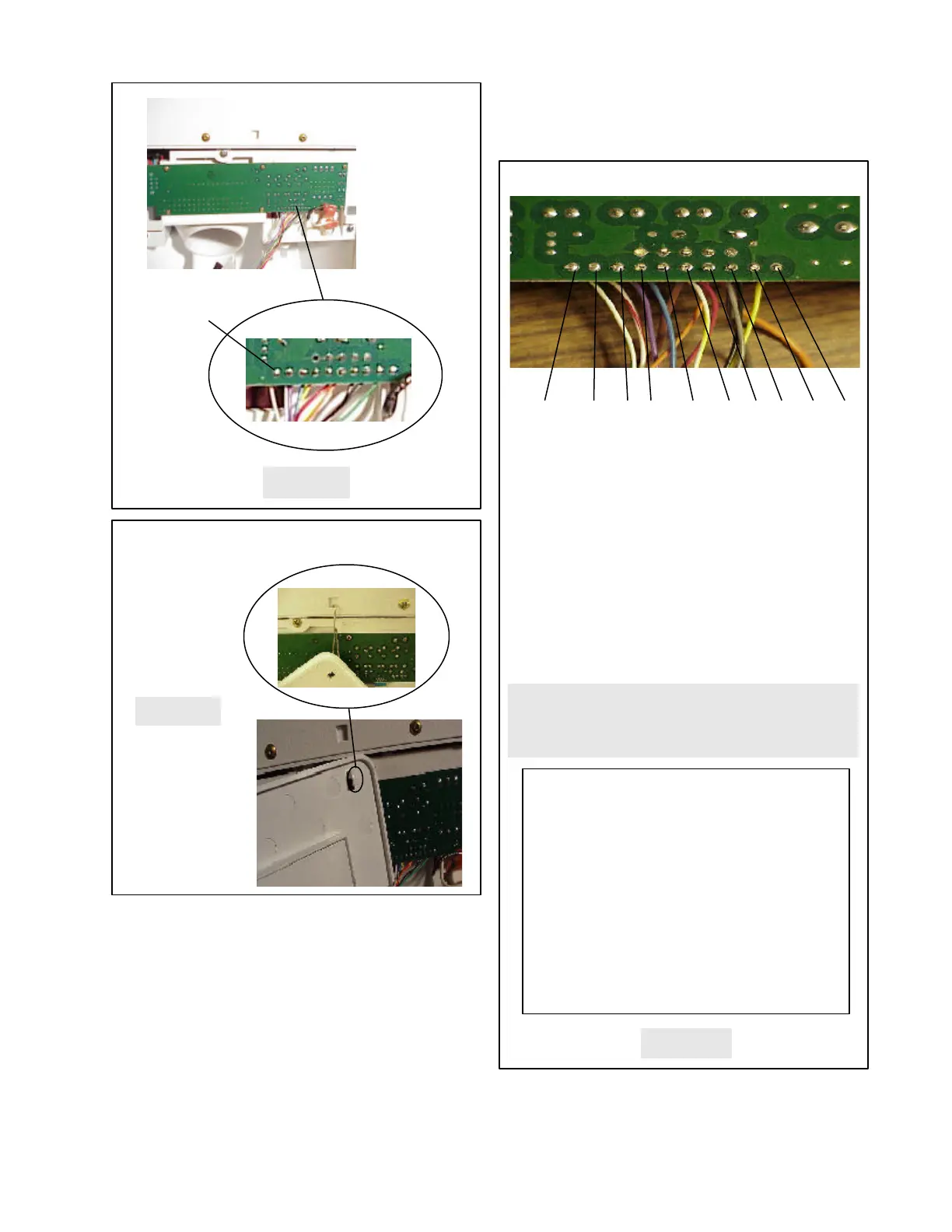

Figure 36
Voltage Test
Points
VOLTAGE TESTING
The wire color is called out on the board but the lettering
is on the relay side of the board. You need to remove
the board to see the lettering, but you can follow the
wire to the connector without removing the board. Do
your voltage test by following the color wire to the
connection point then make your test.
The power to the control board from the power board is
coming in on the Green and Black wire. Green is neutral
and Black is power. To do the rest of the test you will
use the black wire. Your readings will be 5 VDC
± 2
until you make a selection. At the time you press the
Bend a piece of wire around hook on face and push
into center hook slot to hold front face while testing
voltage.
Figure 37
actuator, your voltage will drop to less than 1 VDC on
the wires listed to test the component, but the voltage
will remain around 5 VDC on the remaining wires. (See
Figure 38)
WH/GR WR/R V BL WH/Y R OR SL BK GR
Test Points on Power Board wire connector
Power to control GR to BK 8.9 to 12.2 VDC
Light Bk to BL Less than 1 VDC
Water Bk to BL less than 1 VDC
BK to WH/R less than 1 VDC
BK to SL less than 1 VDC
Crushed Ice Bk to BL less than 1 VDC
Bk to V less than 1 VDC
BK to SL less than 1 VDC
Cube Ice BK to BL less than 1 VDC
BK to V less than 1 VDC
BK to SL less than 1 VDC
BK to WH/Y less than 1 VDC
NOTE: When filling a glass with water on models
without the change filter feature, you do not need
to check from BK to SL.
Figure 38
Color Code
GR Green
BK Black
SL Silver/Gray
OR Orange
R Red
WH/Y White with Yellow Tracer
BL Blue
V Violet
WR/R White with Red Tracer
WH/GR White with Green Tracer
