TO REMOVE CONTROL BOARD
To remove the Control board from the front, remove the
screws and lift straight up. Slide the board out from
between the cover and the push buttons. When you
install the new board, make certain you line up the pads
on the cover with the switches on the board. (See Figure
39) Reinstall the front frame on the freezer door and
make sure you plug the wire harness from the power
board into the control board before you slide the front
frame into slots at the top.

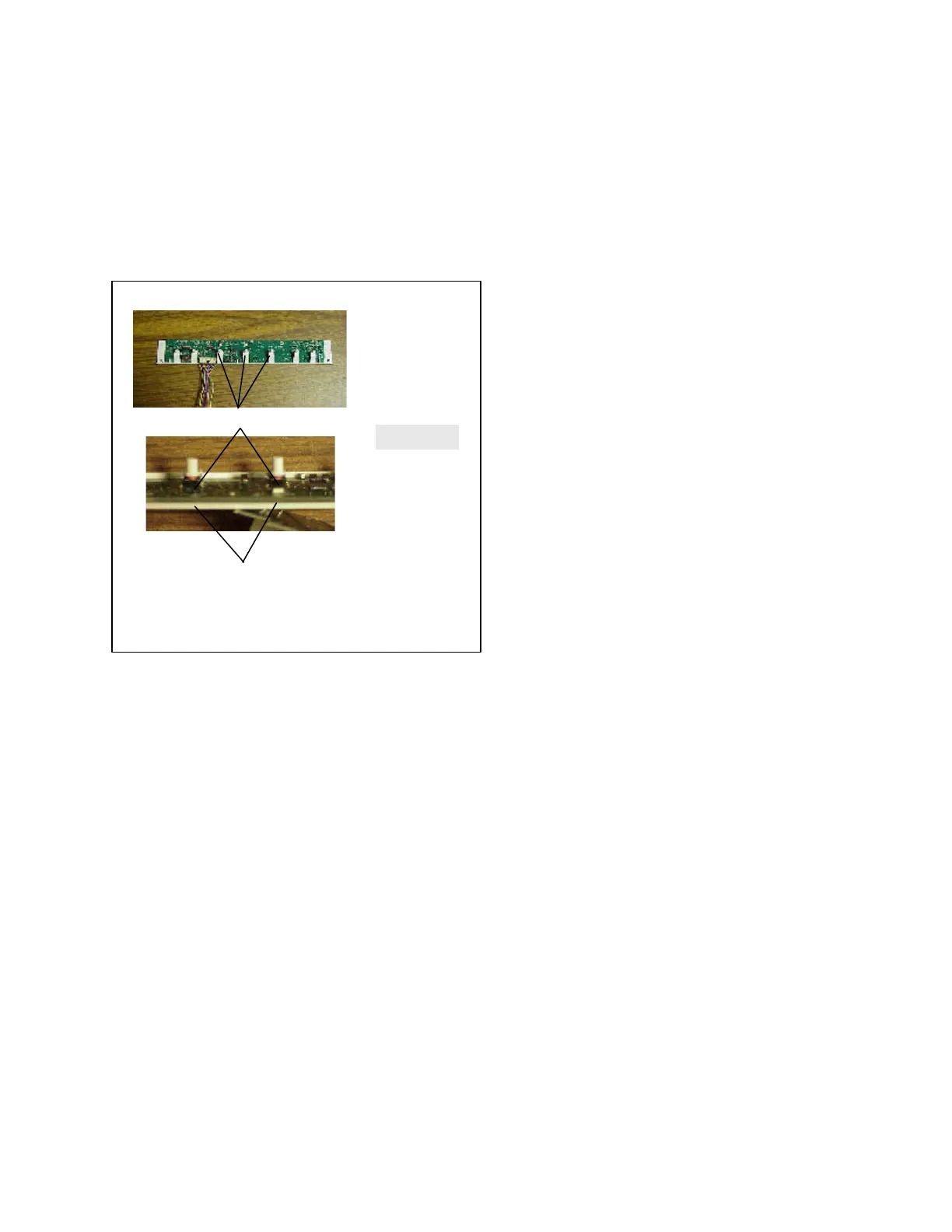

Control Board
When you install Control board in cover, make sure
you position Push Tabs over switches on board.
Switches
Push Tabs
Figure 39
