Operating Cycle
The operation of the Ice Maker, water refilling, and
controlled ice storage, require proper functioning and
timing of all components.
Consider the following:
• Has refrigerator been properly installed and
connected to sources of electrical power and water?
• Has Freezer compartment Evaporator pulled down
to temperature?
• Have several ice making cycles been completed
and is Ice Maker in Freeze Cycle?
• Is Ice Maker Thermostat single-throw switch in
series with Mold Heater?
• Do Ejector Blades make two revolutions per cycle?
Is ice stored on blades after harvest?
• Is Water Solenoid wired in series with Mold Heater?
To manually cycle Ice Maker:
1. Remove Cover from Ice Maker head.
2. Insert Phillips
head driver into screw on timing
gear.
3. Turn gear clockwise until Motor starts to run.
Operating Cycle Illustrations - Manual Cycle
ICE MAKER TESTING PROCEDURES
Operating Cycle Illustrations - Electrical

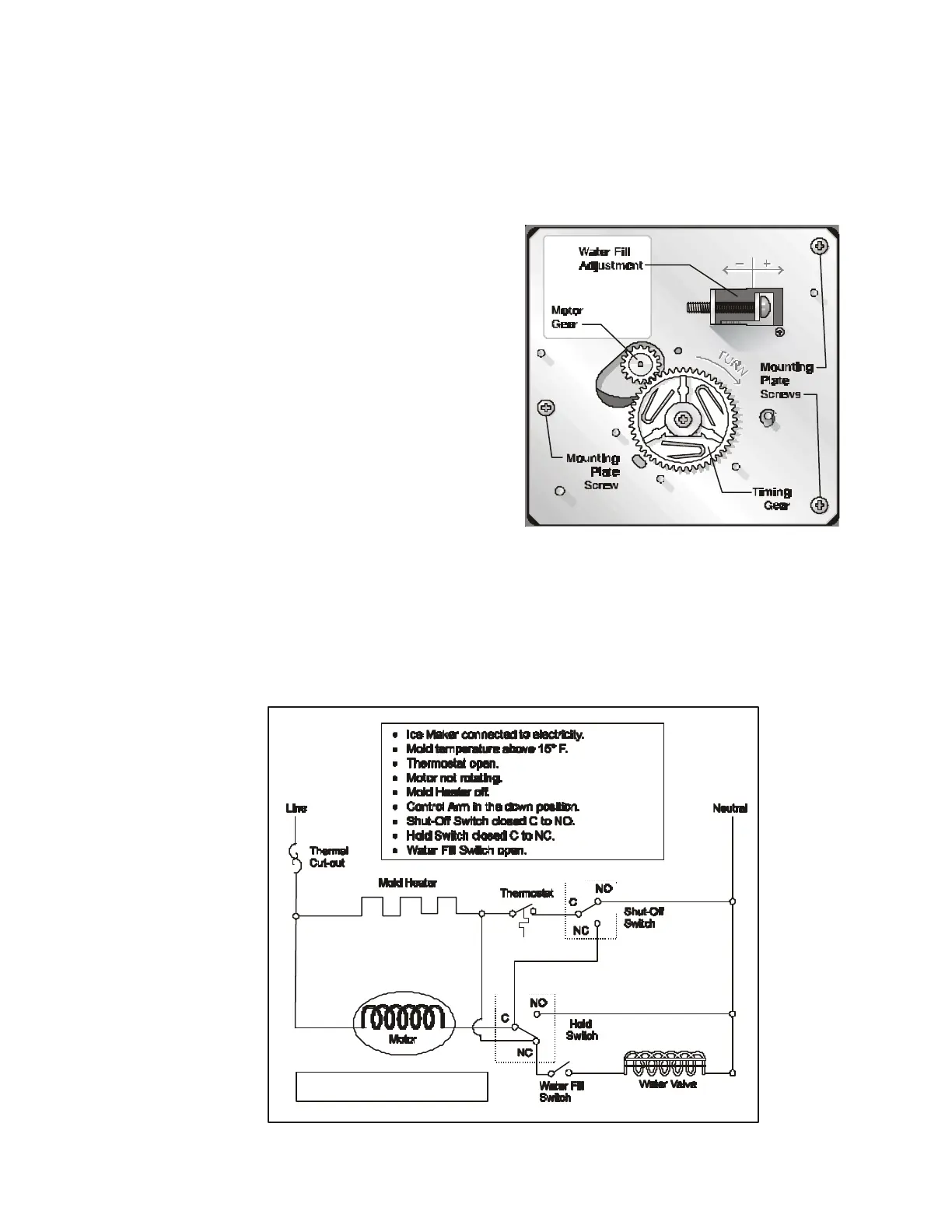

The following wiring diagrams illustrate the electrical operation of an Ice Maker.
