68
Ice and Water Only - No Electronic Control
The last layout will have no selections. Only water or
ice cubes are available, depending upon which actuator
the glass is pushed against. There are no other
selections. (See Figure 6)
All models with a touch selection on the front have a
electronic control behind the front panel of the dispenser.

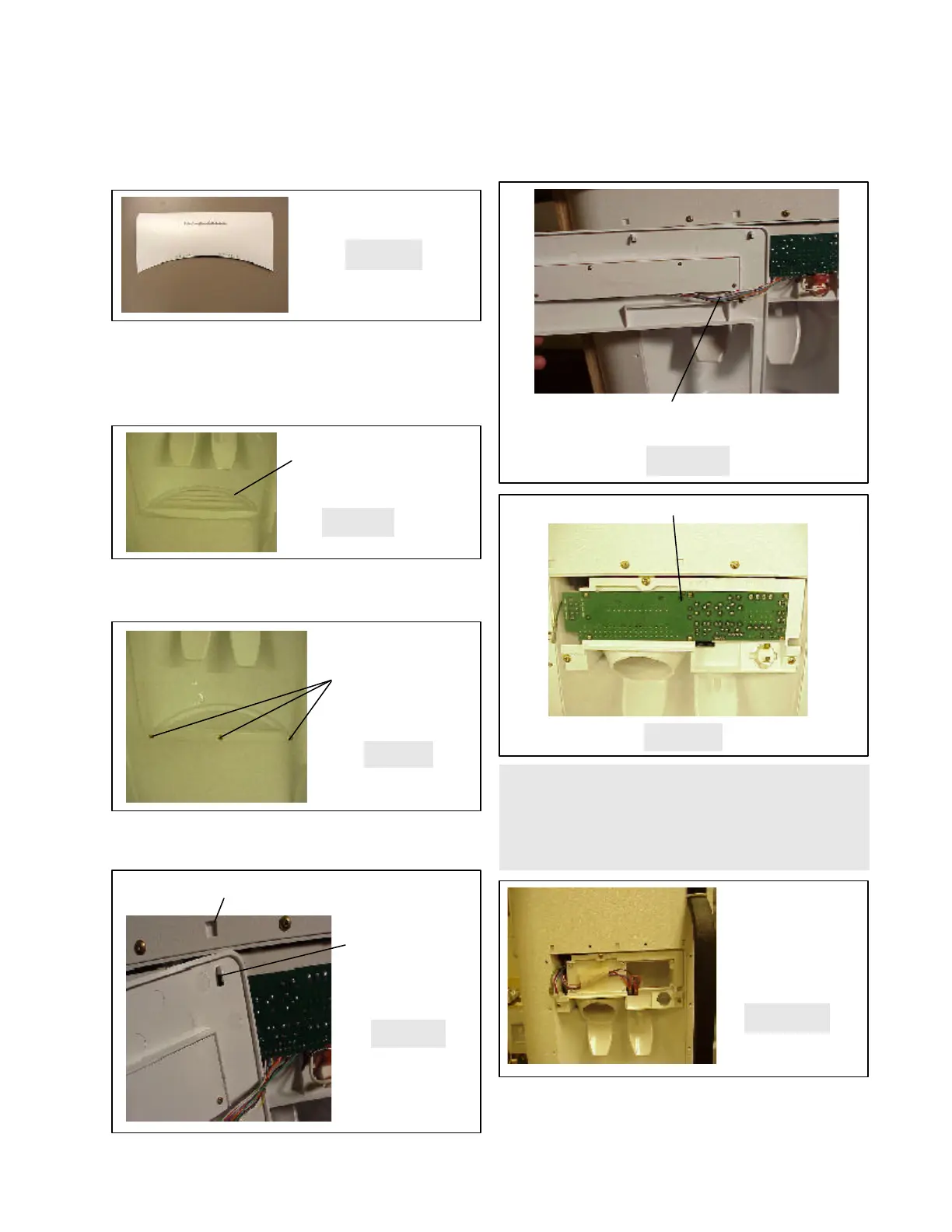

To Gain Access To Control Area:
1. Pull drip tray straight out. (See Figure 7.)
Figure 7
To remove drip tray, pull
straight out.
2. Remove three screws at bottom of front panel. (See
Figure 8.)
Figure 8
Remove
screws
3. Lift up on front panel. There are tabs on top of panel
that slide into holes in door panel. (See Figure 9.)
Figure 9
Holes in outer door panel
Panel
tab
4. Swing panel out to side, being careful not to pull
wires out of disconnect plug or control board.
5. Carefully unplug wiring harness from control board
on front cover. (See Figure 10.) This gives access
to power board. (See Figure 11.)
Unplug wire harness from control board to
power board.
Figure 10
Figure 11
Power Board
NOTE: On models with no selector on the front
panel, once the front panel has been removed,
you can gain access directly to the dispenser
because there is no control board or power board.
(See Figure 12.)
Model Without
Electronic Control
Figure 12
Figure 6
No Selections
To Next Page
