To Replace Motor and Switch Mounting Plate
1. Remove front Cover.
2. Remove three screws that attach Mounting Plate
to Support Housing.
3. Carefully remove Mounting Plate, disengage end of
Sweep Arm and note relative position of Sweep Arm
Spring.
4. Transfer Motor, Switches, Cam, Gear, and Water
Fill Adjusting Spring and Arm to replacement
Mounting Plate.
5. Attach new Mounting Plate to Support Housing with
three screws.
NOTE: Ensure that the wiring harness is properly
positioned and the Sweep Arm is in place.
6. Check Water Fill Cycle and adjust as required.
7. Replace front Cover.
To Replace Fill Trough and Bearings
1. Push Trough retaining tab back away from Mold.
2. Rotate Trough counterclockwise until it is clear.
3. Pull from back to detach from Mold and Ejector
Blades.
4. Replace in reverse order.
To Replace Ice Stripper
1. Remove Ice Maker from refrigerator.
2. Remove retaining screw at back of mold.
3. Pull back on Ice Stripper to disengage it from front of
Mold Support housing.
4. Replace in reverse order.
To Replace Ejector Blades
1. Remove front Cover.
2. Remove three screws holding Mounting Plate in
place.
3. Carefully remove Mounting Plate, disengage end
of Ice Maker Control Arm and Ejector Blades from
Motor coupling, and note relative position of Ice
Maker Control Arm Spring.
4. Remove Fill Trough and bearing.
5. Turn blades to 12 O’clock position.
6. Slide Ejector Blades back and up to remove.
7. Replace in reverse order.
8. Lubricate bearing ends of Ejector with Silicone
grease.
To Replace Motor
1. Remove front Cover.
2. Remove three screws that attach Mounting Plate
to Support Housing.
3. Disconnect two Motor leads.
4. Remove two Motor mounting screws.
5. Replace Motor in reverse order.
To Replace Water Fill Switch
1. Remove front Cover.
2. Remove three screws that attach Mounting Plate to
Support Housing.
3. Disconnect two Water Fill Switch wire leads.
4. Remove two switch mounting screws.
5. Remove switch.
6. Replace switch in reverse order, ensuring that
switch insulator is in place.
7. Check Water Fill Cycle and adjust as required.

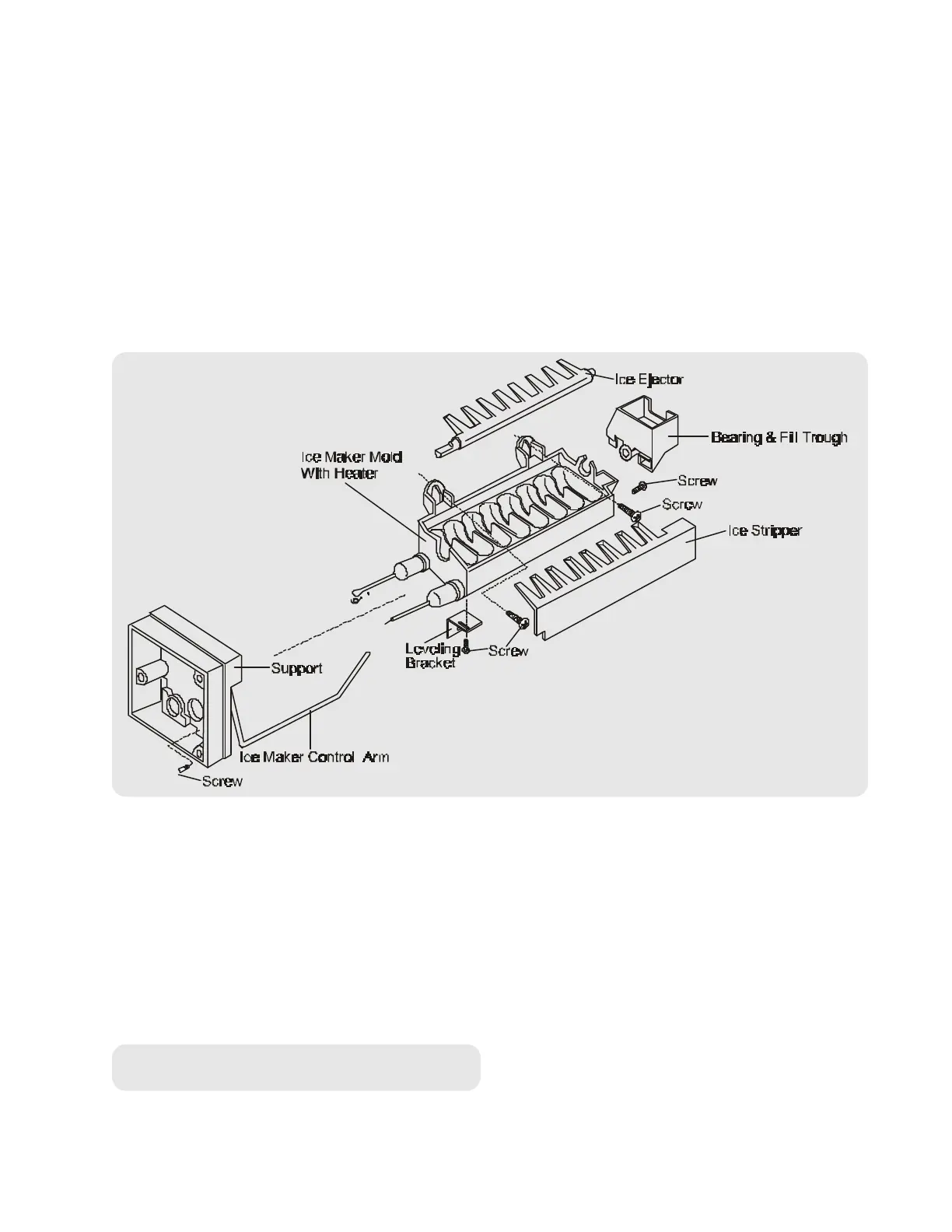

Figure F5
