Ice Maker - Electric 14
Operating Cycle Illustrations - Mechanical

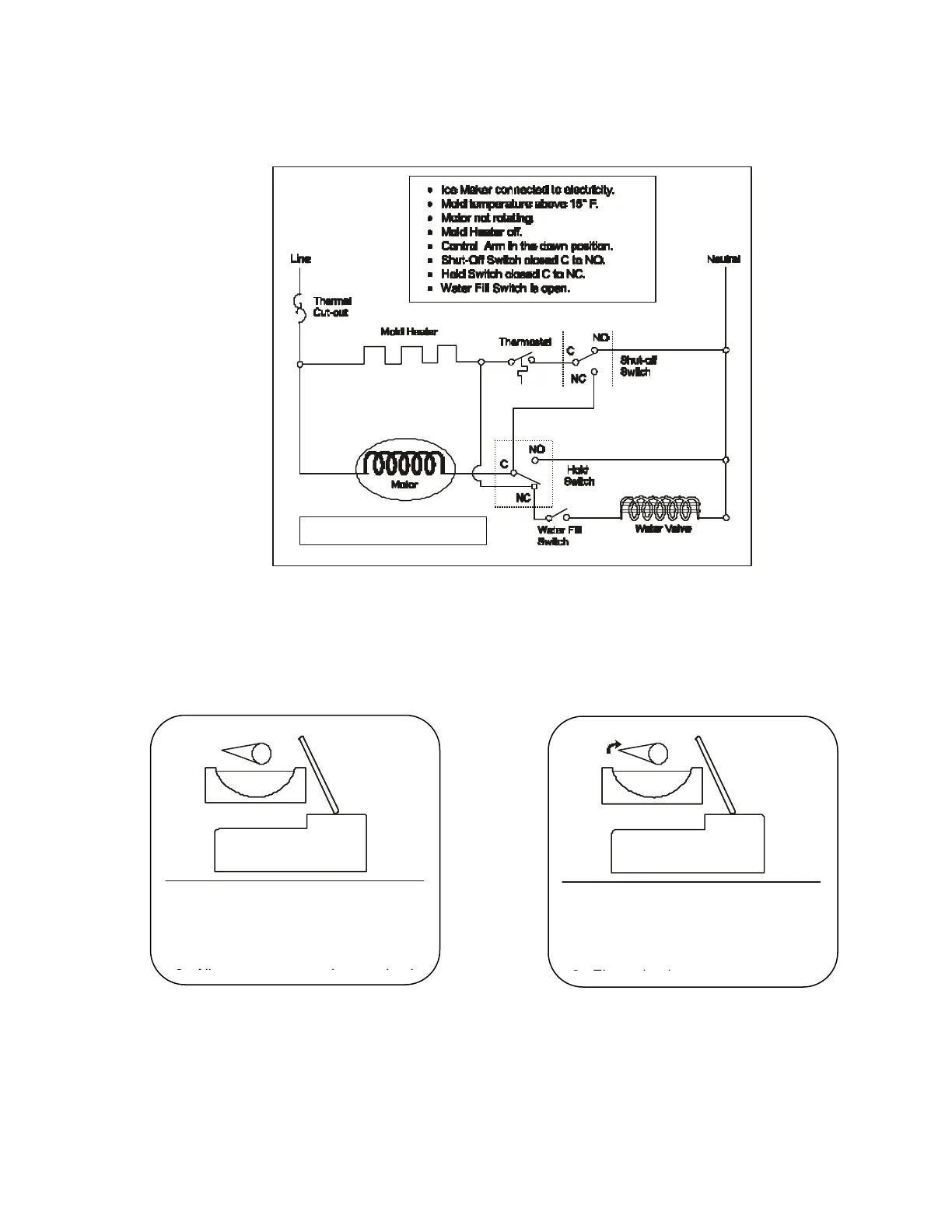

The following Figures illustrate the mechanical operation of an Ice Maker.
Step 2Step 1
Water
Ice Storage Bin
Water
Ice Storage Bin
C
o
n
t
r
o
l
A
r
m
Ejector
1. Mold is filled with water.
2. Thermostat is open.
3. All components are de-energized.
Freezer Cycle
Water
Ice Storage Bin
Water
Ice Storage Bin
C
o
n
t
r
o
l
A
r
m
Ejector
1. Thermostat closes.
2. Mold heater & Motor is energized.
3. Ejector begins to turn.
Start of Harvest Cycle
