Learning the basics
21
ASSEMBLY
Installing the System Card
and the battery
If you received a 475 Field Communicator with the System Card
already installed, proceed to the " Starting up" section.
1.Place the 475 Field Communicator face down on a level, secure
surfac
e.
2.Remove the protective rubber boot, if attached.
3.With the battery removed, slide the System Card (labeled System
Card),
with the metal card contacts facing up, into the System Card
socket until it clicks. The System Card socket is spring-loaded. See
Figure 2-6 for the location of the System Card socket.
The System Card is not locked into the System Card socket in the
image below
.

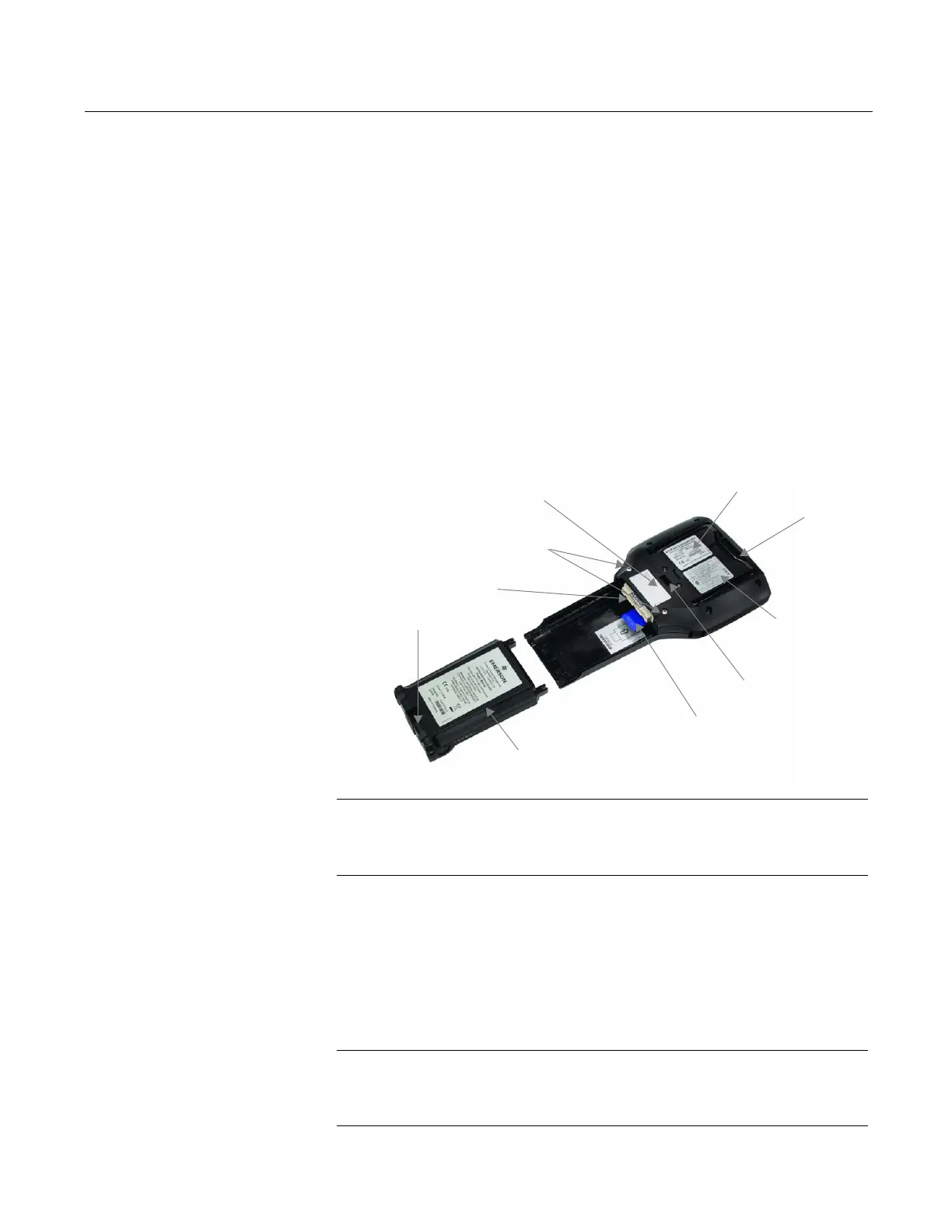

Figure 2-6.
Li-Ion battery
System Card partially
inserted into the
System Card socket
Stand
Main unit label
IS label
(KL option)
Battery retaining screws
Connector pins
Strap attachment
Strap attachment
Bluetooth approval label
Back of the 475 Field Communicator
CAUTION
The System Card must be supplied by the 475 Field Communicator
manufacturer. Failure to comply will void the IS approval.
4.With the 475 Field Communicator still face down, ensure the tops of
the two battery retaining screws are loose and slightly above the top
of the 475.
5.Align the sides of the battery with the 475 and carefully slide it
forward
until it is secure.
6.Carefully hand tighten the two battery retaining screws to secure the
bat
tery. (Do not over tighten, 0.5Nm maximum torque load.)
CAUTION
The connector pins may be damaged if the 475 Field Communicator
and battery are improperly aligned.
