9. Build the Virtual Array
When the system is energized and the Envoy detects at least one microinverter, create the virtual array in
Enlighten from the installation map you created.
You can scan and upload the paper copy of the Installation Map, or you can use the ArrayGun feature from
the Enphase Installer Toolkit to easily
build and configure a system. Refer to
http://enphase.com/products/arraygun/ for
more information.
To build the virtual array manually:
a. Log in to Enlighten.

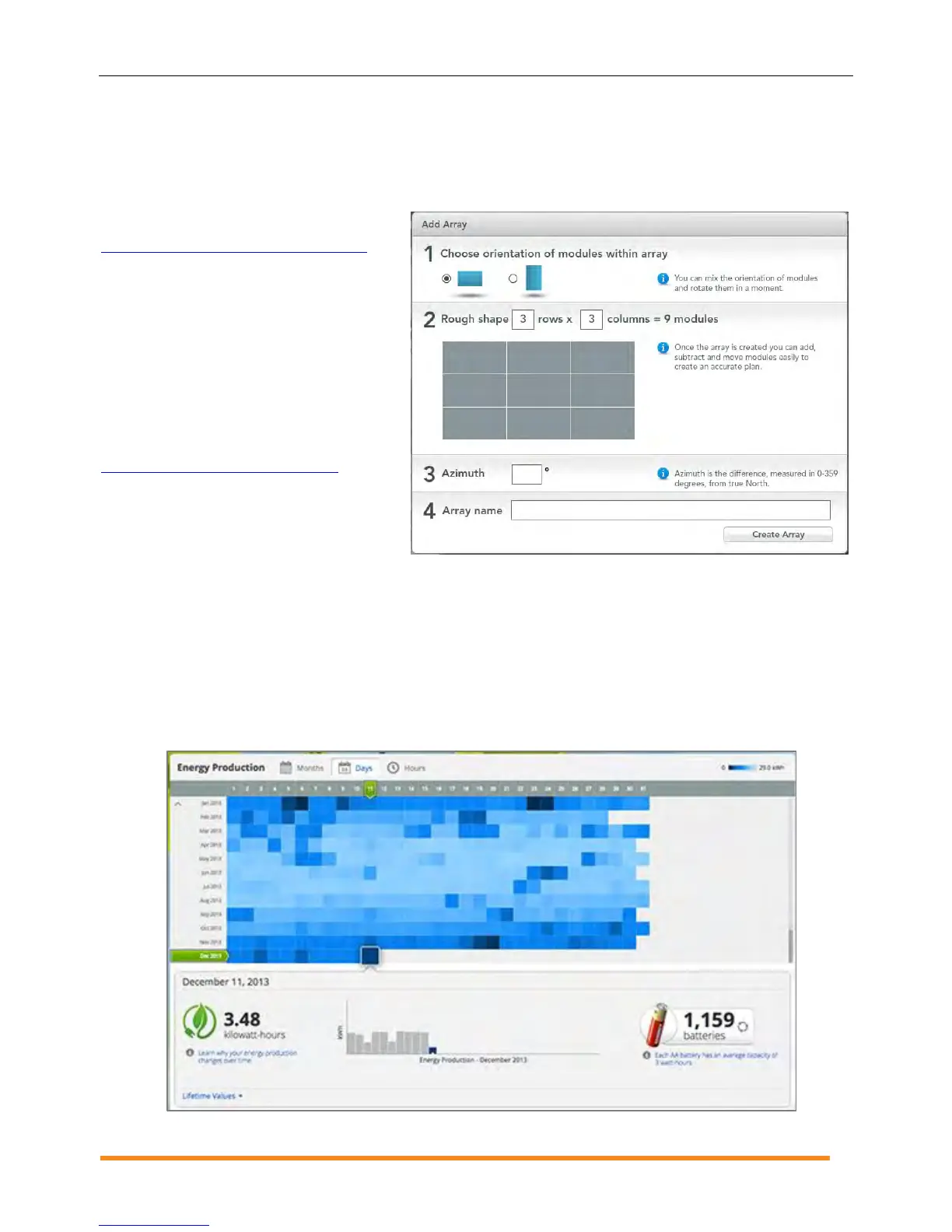

b. Use Array Builder to create the
virtual array in Enlighten.
c. Use your installation map as your
reference.
To see the Array Builder demo, go to
http://enphase.com/support/videos.
Once the virtual array is built, Enlighten
displays a graphic representation of the
PV system. It also shows detailed current
and historical performance information.
10. View System Performance in Enlighten
Once the array is built and the system is activated, you can log in to Enlighten to view site data.
a. If you have not done so already, log in to Enlighten to view system data.
b. Refer to “How the Envoy Works with Enlighten” on page 28 for more information.
