Mounting the 8 Port Switches
Enterasys 800-Series Hardware Installation Guide 2-5

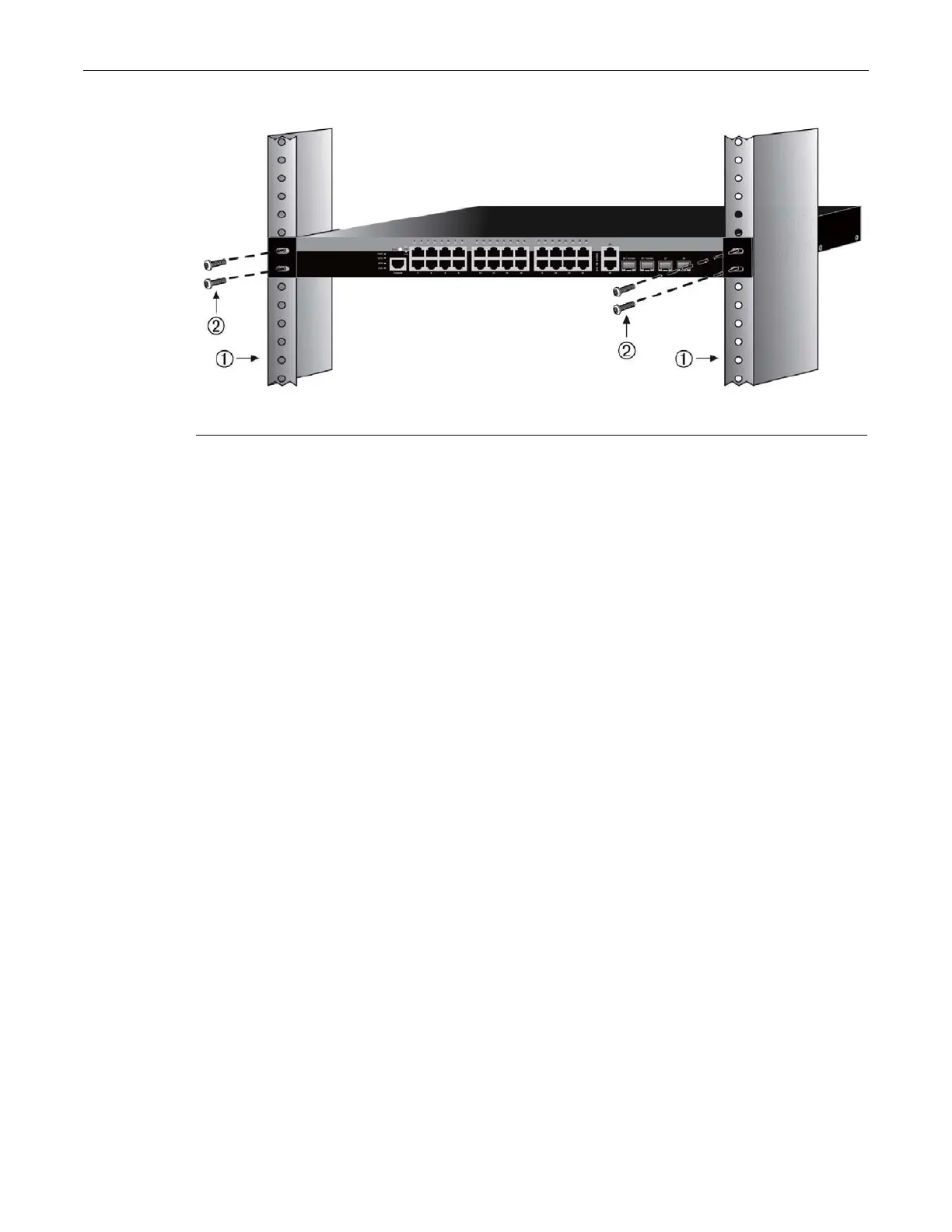

Figure 2-3 Fastening the Switch to the Rack
3. Proceed to “Connecting AC Power” on page 2-21.
Mounting the 8 Port Switches
The following mounting options are available for the 8 port switch. Each requires that you
purchase a separate mounting kit. Proceed to mount the switch in your desired location using one
of the procedures described in this section:
Install the switch in a table mount kit and mount the switch under a table, as described in
“Installing the Switch Under a Table” on page 2-10.
Install the switch in a wall mount kit and mount the switch on a wall, as described in “Installing
the Switch on a Wall” on page 2-12.
Install the switch in a lockbox kit and mount the switch on a wall, as described in “Installing the
Switch in the Lockbox and Mounting on a Wall.” on page 2-14.
Positioning and Securing One or Two 8 Port Switches
This section details how to mount the 08G20G2-08 and 08G20G2-08P switches into the optional
rack mount kit (D2-RMT).
1 Rails of 19-inch rack 2 Mounting screws (customer-supplied)
