Redundant Power Supply Specifications
A-10 Specifications
08A-RPS-500 Redundant Power Supply Connector
For pin location and function, refer to Figure A-2 and Table A-9, respectively.

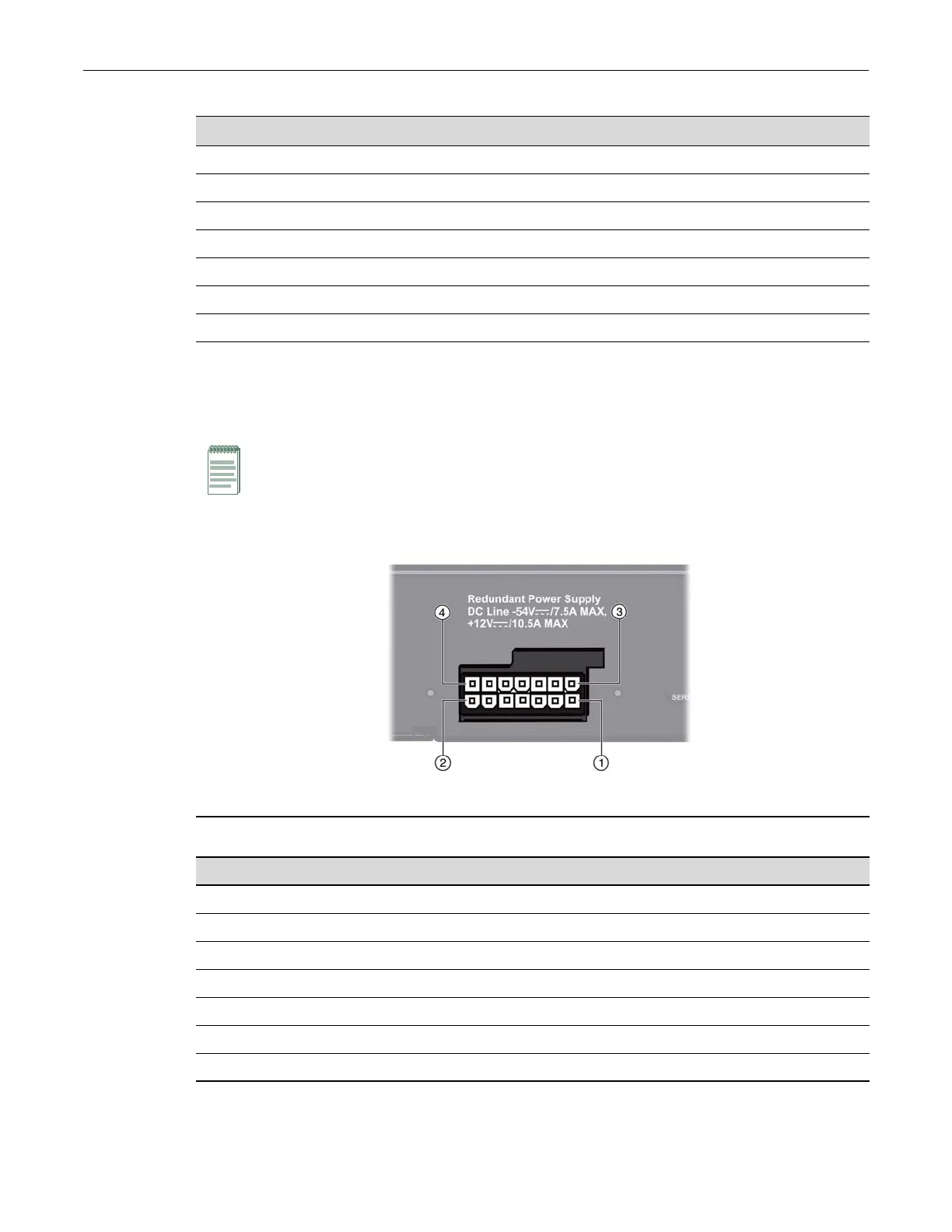

Figure A-2 08A-RPS-500 Redundant Power Supply Connector Pin Locations
Table A-8 STK-RPS-150CH2 Power Supply Connector Pin Functions
Pin Number Function Pin Number Function
1 Ground 8 Ground
2 No connection 9 No connection
3 12 Vdc Output 10 No connection
4 12 Vdc Output 11 Status 1
5 12 Vdc Output 12 Status 2
6 12 Vdc Output 13 Power good
7 Ground 14 Ground
Note: The following information is for troubleshooting purposes only. For proper operation, use only
the RPS cable supplied with the 08A-RPS-500. This cable is specially designed for this application
and meets all necessary Regulatory and Safety standards. The use of non-approved cables will
void your warranty.
1 Pin 1 2 Pin 7 3 Pin 8 4 Pin 14
Table A-9 08A-RPS-500 Redundant Power Supply Connector Pin Functions
Pin Number Function Pin Number Function
1 - 54 V return 8 Ground
2 - 54 Vdc 9 No connection
3 12 Vdc output 10 RPS present
4 12 Vdc output 11 Status 1
5 12 Vdc output 12 Status 2
6 12 Vdc output 13 Power good
7 Ground 14 Ground
