Mounting the 8 Port Switches
2-8 Installation

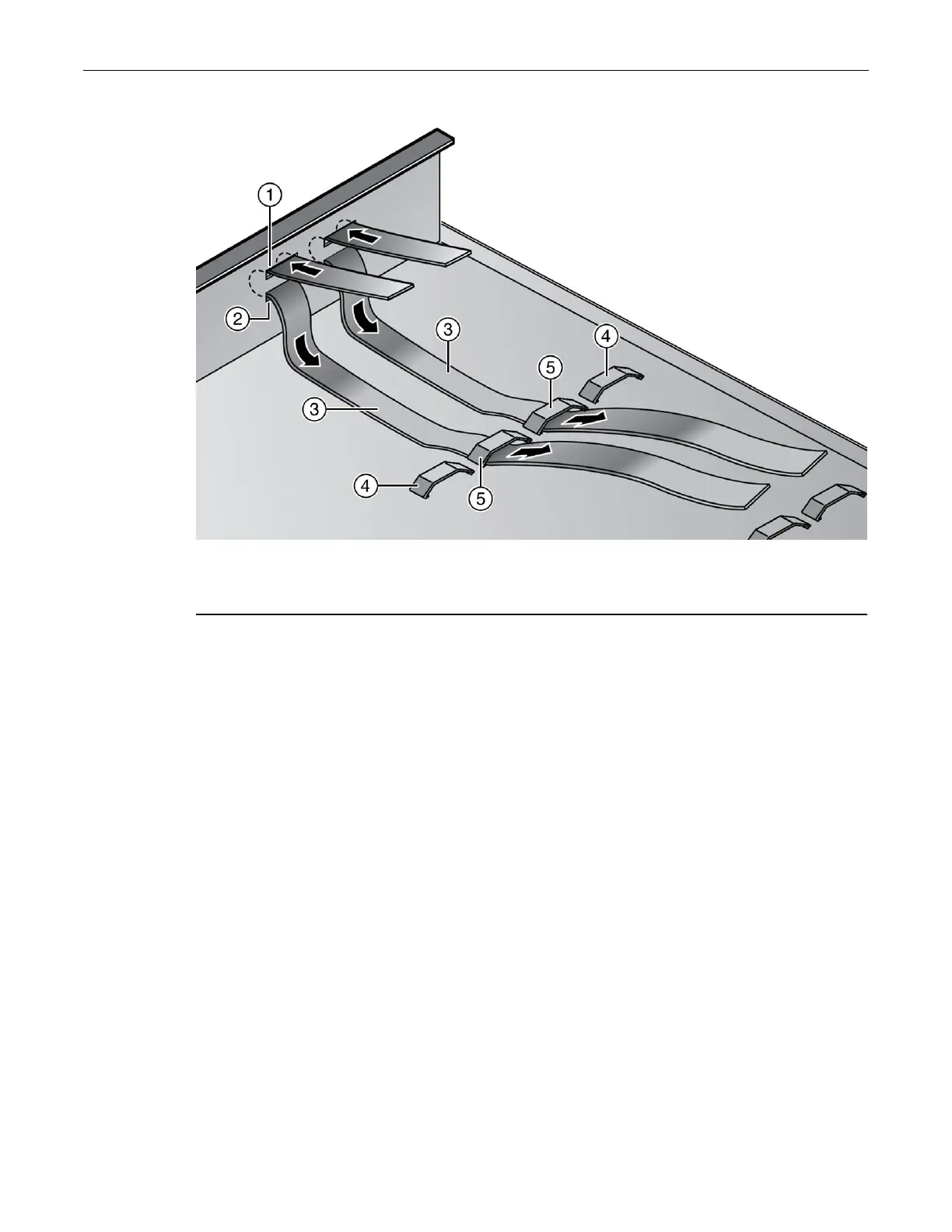

Figure 2-6 Positioning of Hook & Loop Straps to Secure Power Supply
2. Repeat step 1 with another hook & loop strap to secure the other side of the power supply to
the mounting tray. Final placement is shown in Figure 2-7.
1 Top power supply mounting hole 4 Outer set of bridge anchors
2 Bottom power supply mounting hole 5 Inner set of bridge anchors
3 Hook & loop straps
