Mounting the 8 Port Switches
2-6 Installation

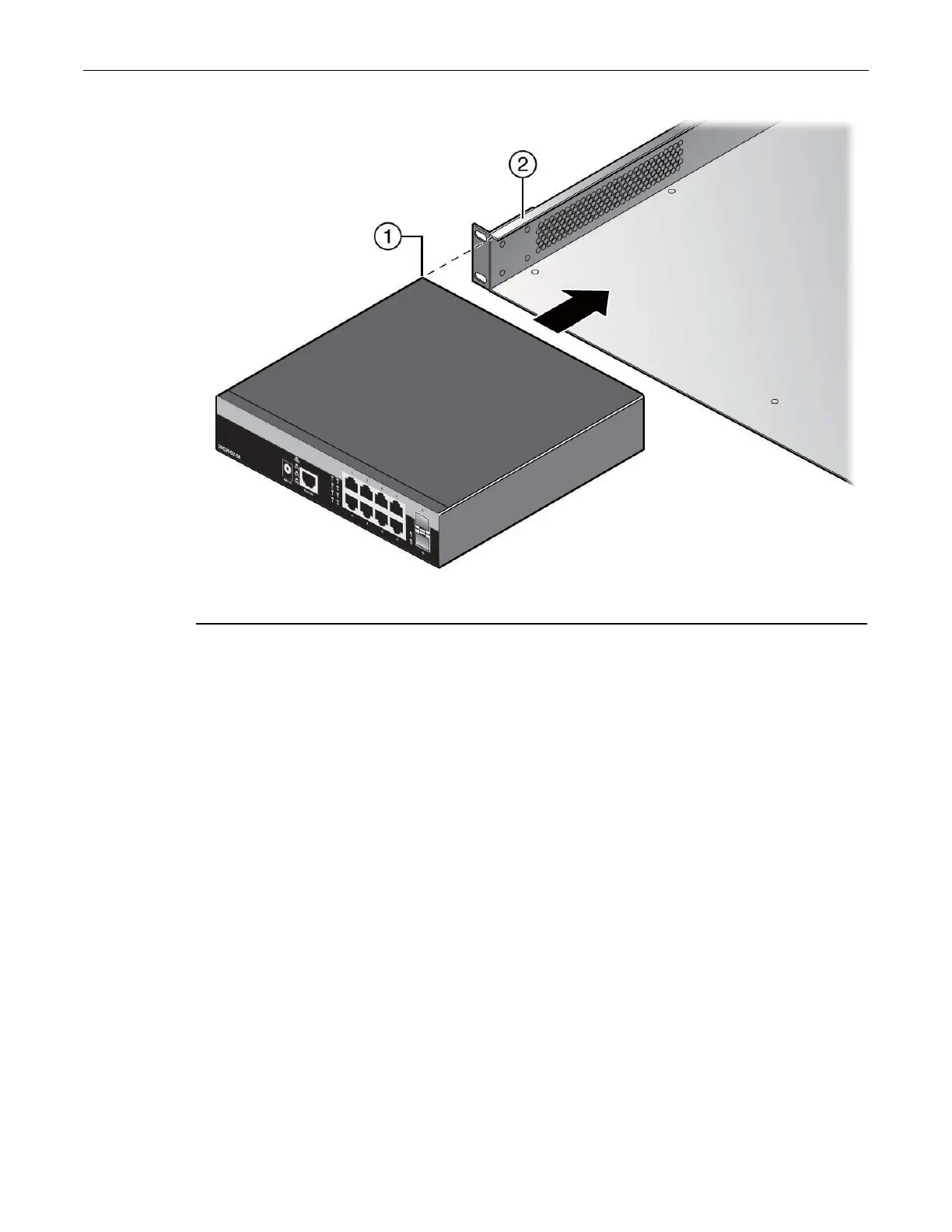

Figure 2-4 Installing a Switch in the Rack Mount Kit (08G20G2-08P shown)
To install a switch in the optional rack mount kit, proceed as follows:
1. Mount the switch in the mounting tray by sliding the front edge of the switch underneath the
lip on the mounting tray as shown in Figure 2-4, and aligning the three screw holes on the
bottom of the switch with the three holes in the rack mounting tray.
2. (Optional) Repeat Step 1 to mount a second switch on the opposite side of the rack mounting
tray.
1 Rear edge of the Switch 2 Rack mount tray lip
