Epson SC-P600 Service Manual

SE Group Confidential (Related Staff Only)
Adjustment Details of Adjustments 39
SC-P600 Revision D
2.3 Details of Adjustments
This section provides adjustment procedures for which explanation in details is necessary. See "2.1 Adjustment
Items and the Order by Repaired Part (p32)" for the adjustments not explained here.
2.3.1 PF Timing Belt Tension Adjustment
This section describes PF Timing Belt tension adjustment.
 Tools

Sonic tension gauge
 Plastic tweezers
 Adjustment procedure
1. Set the following parameters to the sonic tension gauge.

Weight: 001.2 g/m
 Width: 005.0 mm
 Span: 0048 mm
2. Bring the microphone of the sonic tension gauge close to the upper center of the PF Timing Belt.
3. Press the “MEASURE” button on the sonic tension gauge and flip the timing belt with plastic tweezers.

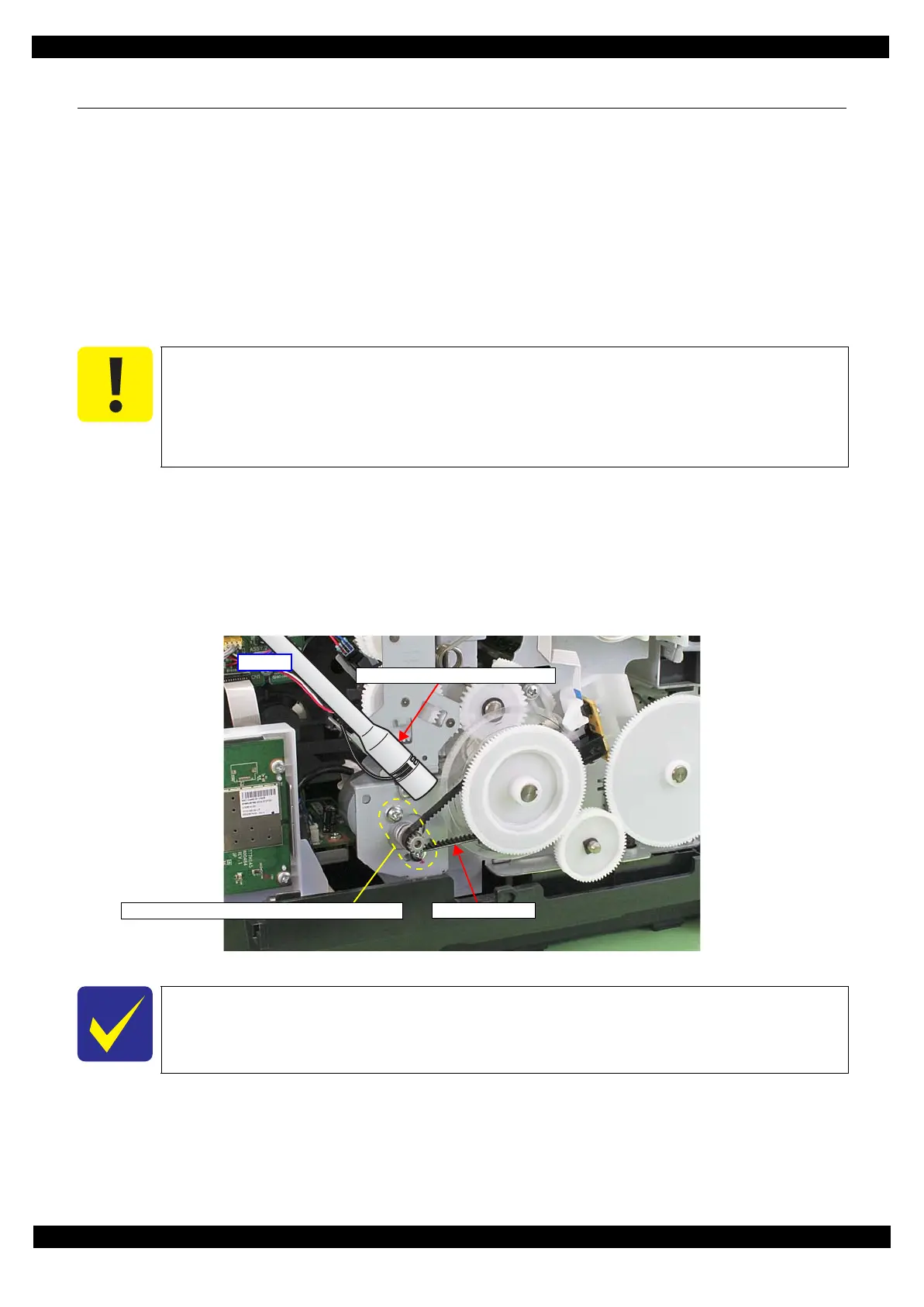

Figure 2-1. Microphone Position
4. The adjustment is not necessary if the measured value falls within the standard value.
If not, loosen the screws that secure the PF Motor, and change the position of the PF Motor adjuster part of
the PF Motor attachment location little by little to adjust the belt tension. Repeat Step 3 until the measured
value falls within the standard value.
When performing the PF Timing Belt tension measurement, make sure of the following.
 Bring the microphone of the sonic tension gauge within 5 mm from the Timing Belt but do
not let it touch the belt.
 Flip the Timing Belt as weak as the sonic tension gauge can measure it.
 Be careful not to damage the Timing belt when flipping it with the plastic tweezers.
The standard tension range of the PF Timing Belt Tension Adjustment is as follows:
 Standard value: 10.5 - 12.5N
Left side
Microphone of sonic tension gauge
Adjuster part of the PF Motor attachment location
PF Timing Belt
